Universal machining center

^DMG DMU 50

Condition: ready for operation (used), Year of construction: 2009, operating hours: 38,348 h, Main Drive Number of axis 5 Spindle Speed 10819 RPM Control Unit Brand HEIDENHAIN This 5-axis DMG DMU 50 was manufactured in 2009. It's a vertical machining center with a spindle speed of 10819 RPM and has been operated for 38348 hours. Consider the opportunity to buy this DMG DMU 50 vertical machining center. Contact us for more information. Gedpfx Absxwfk Topskd Application Types Milling

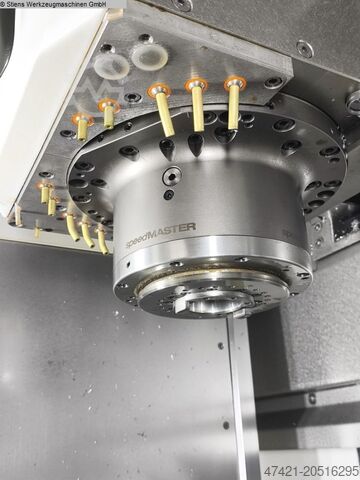

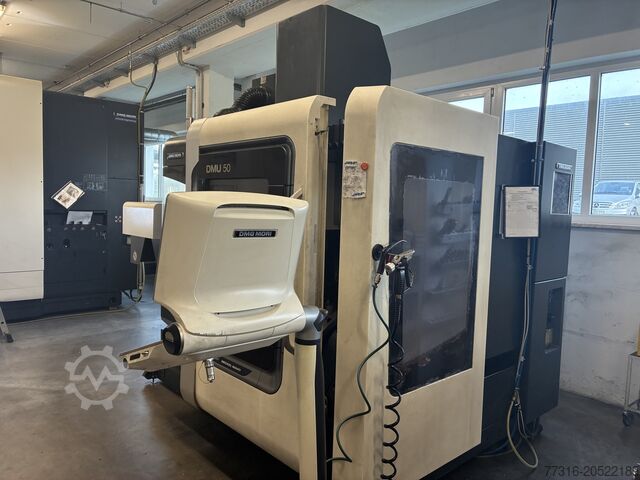

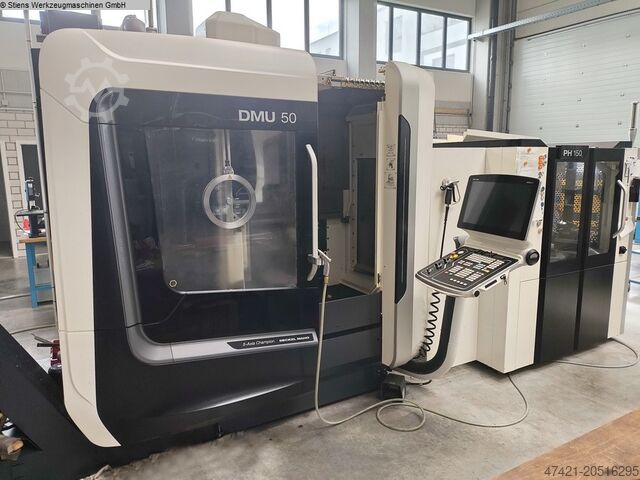

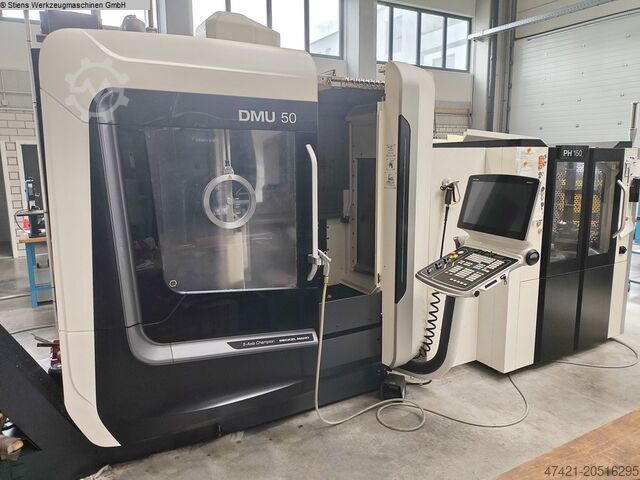

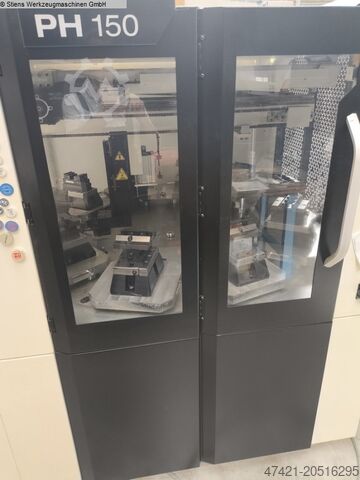

Condition: used, Year of construction: 2018, x-travel 650 mm y-travel 520 mm z-travel 475 mm Control Siemens 840D sl Operate CELOS turning speed range - main spindle 20 - 20.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 130 / 86 Nm tool taper SK 40 table surface area Ø 630 x 500 mm max. table load 300 kg swivellable B: -35° / +110 ° rotatable C: 360 ° number of T-slots 7x 14H7 x 63 number of toolpositions 60 pos. tool taper SK 40 max. tool diameter 80 / 130 mm max. tool length 300 mm max. tool weight 6,0 kg rapid traverse ( X / Y / Z ) 42 m/min total power requirement 39 kVA weight of the machine ca. 7,8 t Gkedpfoxwdriox Abped dimensions of the machine ca. 5,0 x 4,0 x 2,8 m 5 Axis - CNC - Machiningcenter Universal DMG MORI - DMU 50 - 5-Axis-Simultaneous-Machining - NC-Swivel-Rotary-table - internal coolant supply - Operating-Hours: Power-On: ca. 7.802h Spindle: ca. 4.834h - Direct measuring system X, Y, Z - Work area flushing - MPC Machine Protection Control - DMG MORI PROFIBUS automation interface (incl. automatic loading door on the right side of the machine) - ATC (Application Tuning Cycle) - PH 150 pallet loading and unloading station - with handling system and pallet magazine - Rotary storage with 10 pallet holders - Handling capacity 150 kg - Job Manager - Comfort Plus control - incl. pallets and clamping devices

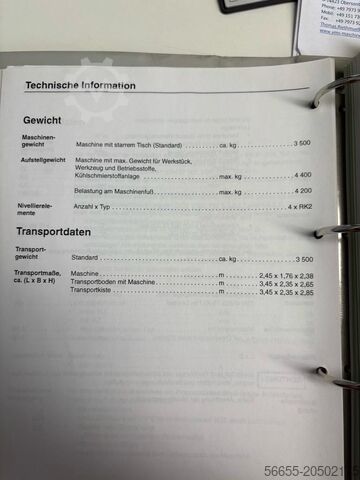

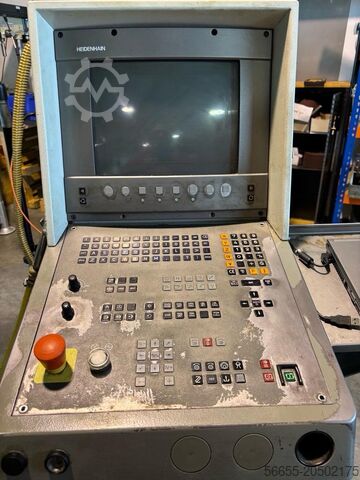

Condition: good (used), For sale is a CNC milling machine DMG DMU 50 V with Heidenhain 426/430 control, 5 axes. The item is in good condition. Technical specifications: Travel X-axis: 500 mm Travel Y-axis: 380 mm Travel Z-axis: 400 mm Table: NC rotary/swivel table Rotary/swivel axes: B-axis approx. -10° / +95° C-axis (rotation): 360° Max. workpiece weight: approx. 200 kg Table surface: Ø 500 x 380 mm Main spindle: SK 40 (ISO 40) Max. spindle speed: approx. 10,000 rpm Max. tool length: approx. 280 mm Max. tool weight: approx. 6 kg Transport dimensions: 2.45 x 1.76 x 2.38 m Machine weight: approx. 3,500 kg Total power requirement: approx. 17 kW Transport and loading can be arranged Europe-wide for an additional charge, if required. Prices exclude VAT. Inspection possible by appointment. Please contact us, our team will be happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sales PURCHASE & SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or would you like to sell yours? Gksdpfexvzy Uex Abped For more information or contact options, please visit our website.

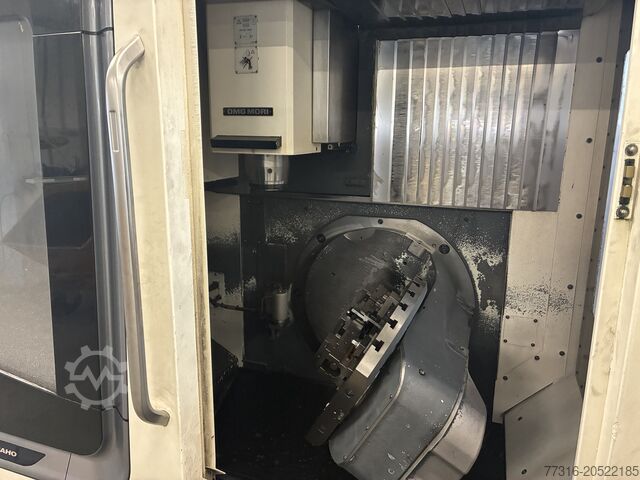

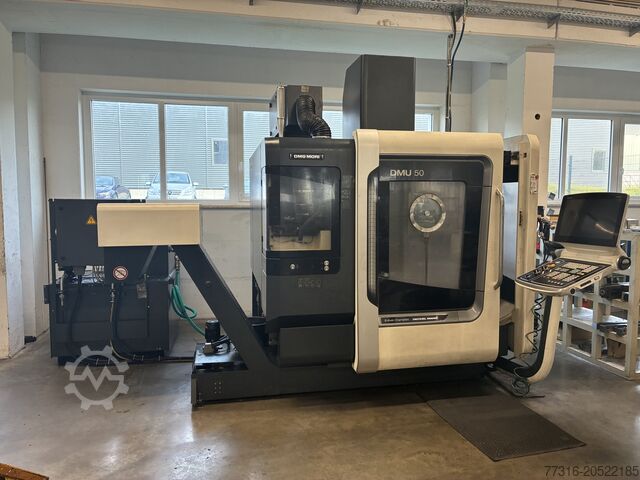

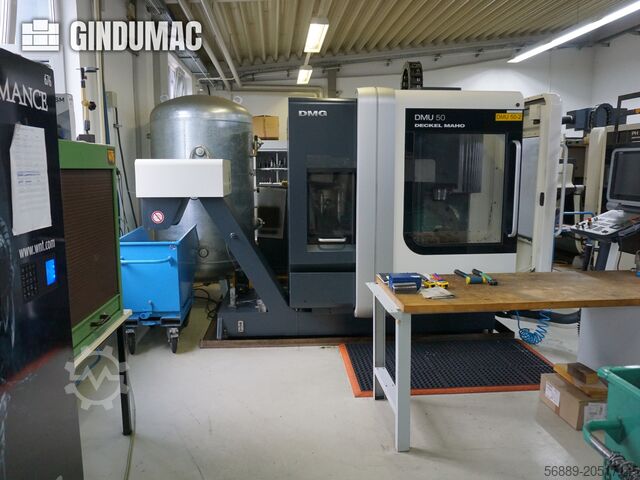

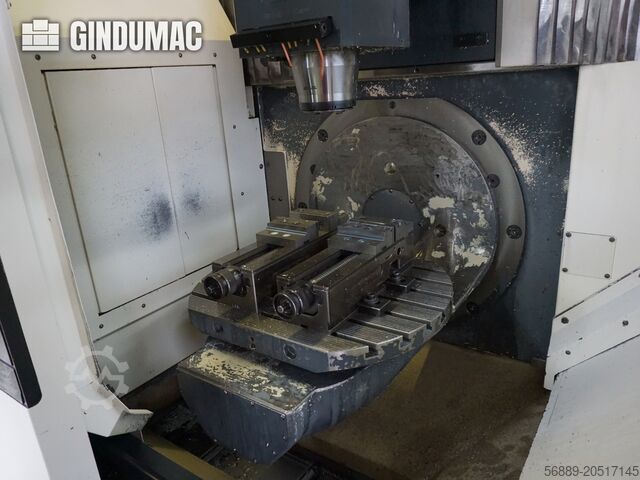

Condition: used, Year of construction: 2015, operating hours: 9,278 h, functionality: fully functional, machine/vehicle number: 11415739234, travel distance X-axis: 620 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 470 mm, Additional equipment: Infrared measuring probe 4-color signal light High-pressure cooling 5-axis simultaneous milling This 5-axis DMU50 operates with a spindle speed of up to 18,000 rpm. The machine features a 30-position HSK-A63 tool magazine, a tiltable rotary table, and the Siemens 840Di sl/840D sl CELOS control system. Gjdpfxoxwlhle Abpskd Please feel free to contact us for further information about this machine. The machine can be inspected and tested on site.

Condition: used, Year of construction: 2003, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, controller manufacturer: HEIDENHAIN, CONTROLS .. CNC controls. HEIDENHAIN WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 3 .. X-axis travel: 500 mm .. Y-axis travel: 400 mm .. Z-axis travel: 400 mm TABLE .. table surface (left-right): 700 mm .. table surface (front-back): 500 mm SPINDLE / HEAD .. spindle revolutions (max): 10000 /min Gkedpfx Ajxu Ahwjbpod .. tool fixture: ISO SK 40 TOOL MAGAZINE .. number of positions: 16 DIMENSIONS / WEIGHTS .. space requirements -left/right-: 5000 mm .. space requirements -front/back-: 3700 mm .. total height: 2500 mm .. total weight approx.: 4500 kg 4726 spindle hours, 10,000 operating hours

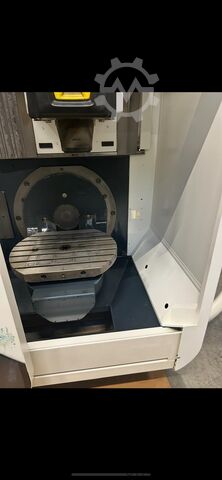

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 12,000 rpm, spindle speed (min.): 20 rpm, 1 universal milling machine DMG-MORI DMU 50 Eco 3+2 Year 2015 Travel X/Y/Z: 500 mm x 450 mm x 400 mm Control: Heidenhain TNC 620 Motor spindle SK 40 with 12,000 rpm Swivel rotary table with digital drives, B-axis (-50°/110°), C-axis 360° 32-position tool changer with double gripper Direct measuring system for X/Y/Z Gjdpfx Abexv D E Tspskd Production package: internal coolant supply, chip conveyor, rinsing gun Coolant/air blast switching via M-function Electronic handwheel Infrared measuring probe Heidenhain TS 649

Condition: ready for operation (used), Year of construction: 2008, operating hours: 46,380 h, Main Drive Number of axis 5 Spindle Speed 14000 RPM Spindle motor power 19 kW Movement X-Axis Movement 500 mm Z-Axis Movement 400 mm Y-Axis Movement 450 mm Gsdpfx Aexwfk Hebpjkd Control Unit Brand SIEMENS Model 840 DSL This 3+2-axis DMG DMU 50 was manufactured in 2008, featuring a Siemens 840 DSL control system and a spindle speed of 14,000 rpm. It includes a 30-position tool changer and an NC rotary swivel table with B-axis and C-axis capabilities. The machine also has an internal coolant system and a chip conveyor. If you are looking to get high-quality milling capabilities, consider the DMG DMU 50 machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Technical Data: Machine Type: - DMU 50 eVo Linear 5-Axis Simultaneous Machining Center - Year of manufacture: 2005 - Travel paths: X-500mm, Y-450mm, Z-400mm Control: - CNC control: Siemens 840D (ShopMill) - Electronic handwheel - 3D probing system Spindle: - Tool holder: SK40 - Speed range: max. 18,000 rpm Tool Magazine: - Automatic tool changer with 30 magazine slots Table Type: NC swivel rotary table - B-axis: -5° to +110° Godpfoxt T Ncex Abpokd - C-axis: 360° Coolant: - External coolant supply Operating Hours: - Machine power-on: 23,677 - Spindle running: 7,994 Availability: - Immediate Accessories: - 1 hydraulic vise (see picture) - 30 SK40 tool holders (tool changer fully equipped) Special Features: - Machine can be inspected and tested under power on site.

Condition: used, Year of construction: 2007, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, DMG Deckel Maho Machining Center 5-Axis Simultaneous Model: DMU 50 EVO Linear Gkodpextqfnefx Abpod Year: 2006 Complete Machine With Documentation CNC Heidenhain type Mill Plus

Condition: used, Year of construction: 2005, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, controller manufacturer: SIEMENS, controller model: 840 D, CONTROLS .. CNC controls SIEMENS 840 D WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 5 .. X-axis travel: 500 mm .. Y-axis travel: 450 mm .. Z-axis travel: 400 mm .. rotating range B-axis from: 110 ° .. rotating range B-axis up to: -5 ° .. rotating range C-axis from: 0 ° .. rotating range C-axis up to: 360 ° TABLE .. table surface (left-right): 630 mm .. table surface (front-back): 500 mm .. clamping surface diameter: 630 mm .. workpiece load (max): 200 kg SPINDLE / HEAD .. spindle revolutions (max): 10000 /min .. tool fixture: ISO SK 40 .. drive power: 9 kW TOOL MAGAZINE .. number of positions: 16 Gjdpjxun Dwsfx Abpjkd .. tool diameter max.: 80 mm .. tool weight max.: 6 kg ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2000 mm .. total height: 2400 mm .. total weight approx.: 3700 kg ATTACHMENTS .. zero-point workholding system: yes Operating hours: 47,800 hours Spindle hours: 20,300 hours Equipment: - Unilock clamping plate - 2 vises - Exhaust filter
