Firefighting water tank, underground tank, steel tank, tank

100m³ Erdtank Lagertank 100.000 Liter Tank

Condition: excellent (used), Year of construction: 2005, Hot water tank/heat storage tank made of V4A, upright Technical data / dimensions Available quantity: 1 Volume: approx. 164,000 liters Tank type: Storage tank Condition: used Suitable for food: yes Design: upright Diameter inside: approx. 3,900 mm External diameter: approx. 4,200 mm Cylindrical height: approx. 13,000 mm Total height: approx. 17,220 mm Weight: approx. 10,500 kg Specific weight of the medium: 1.0 to/m³ Operating pressure: unpressurized Wall thickness shell / cylinder: approx. 5.3 - 7 mm mm Ground clearance: approx. 1,800 mm Operating temperature: -10°C/+90°C degrees Celsius Material / properties Material inner jacket: V4A (1.4571) Material double jacket: Stainless steel Inner surface: 2B Weld seams ground on the inside Insulation Insulation available Insulation thickness: approx. 100 mm Insulation material: Mineral wool Insulating jacket material: Aluminum Insulating jacket: screwed/riveted Notes: Cone roof cladding: Stainless steel Cylinder cladding: Aluminum trapezoidal sheet Cone cladding: Aluminum smooth sheet Equipment Stand form: foot ring/stand frame Fastening: fixed Top shelf type: Conical base Bottom shelf type: Conical base Top floor: 1 x dome DN 200 with insulating cover 1 x flange DN 32 welded in the dome (CIP) 1 x DN 32 dome drainage 1 x DN 50 cable conduit 1 x overflow DN 150 2 x crane eye Jacket: 1 x inlet pipe DN 100 1 x filling pipe DN 100 4 x thermometer sleeve (ø 26 mm) with insulation box 1 x CIP line DN 32 1 x type plate 1 x access door (approx. 2,000 x 1,000 mm) 1 x DN 100 outlet nozzle Underbody: 1 x swivel cone DN 450, ending in smooth flange DN 100 Redpfx Ajqagl Honpsw Notes: Otherwise as per pictures and drawing documentation Drawing

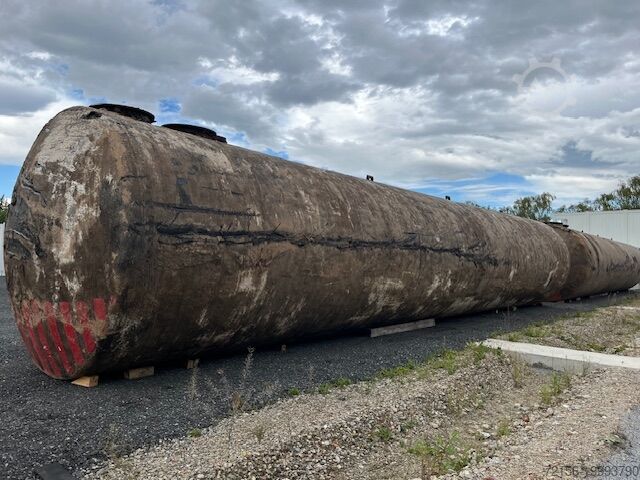

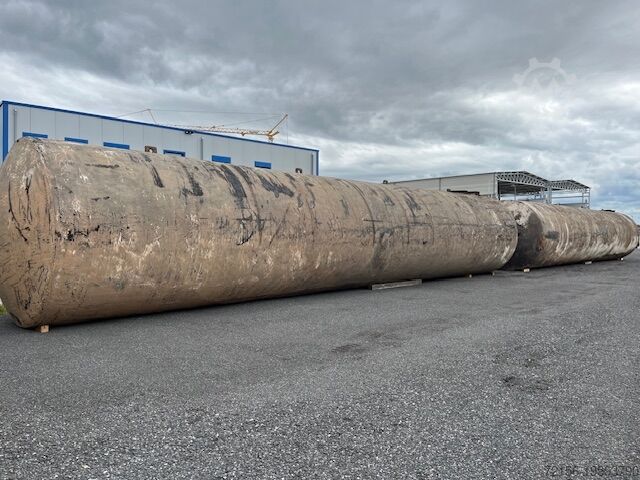

Condition: refurbished (used), 100 m³ / 100,000 l fire water tank according to DIN 14230 Rjdpehh Suhofx Anpow Tank volume: 100,000 liters / 100 m³ Length: approx. 15,750 mm Diameter: approx. 2,900 mm Weight: approx. 16,300 kg Material: Steel grade S 235 JRG 2 Underground tank for underground storage, single or double-walled, suitable for areas that can be walked or driven on (load class SLW 30) with 1 dome (outer diameter 720 mm) with a blank cover, seal, and screws. New or used, immediately available! The container has been emptied, cleaned, overhauled, and tested for leaks by us as a specialist company. The container complies with the requirements of DIN 14230 (Underground fire water tank): - Fire water suction connection according to DIN 14244 with a mounted fire brigade coupling / fixed coupling A according to DIN 14319, design B, without a gauging port. - Ventilation flange stub with a cap, overall length approx. 1,300 mm, suitable for 800 mm soil covering and 500 mm above the ground. - Externally coated with bitumen for protection. - On request, we can coat the tank with an internal coating based on bitumen or epoxy resin (against corrosion). - It is also possible to line the container with a plastic inner liner. A cost-effective delivery with our own truck is possible. Simply let us know the delivery address, and you will promptly receive the exact freight costs. Inspection is possible at any time by prior appointment. If you require any further information, please call us or send us an email to b.barth(at)barth-tank.de We can accept and purchase tanks/containers of all types; please contact us for details. We also have the following sizes in stock: - 10,000, 13,000, 16,000, 20,000, 25,000, 30,000, 40,000, 50,000, 60,000, 80,000 liters.

Condition: like new (used), Item: D-1745-Transport tank 500 Stainless Steel transport tank. capacity 500 L, Rodopdqq Sopfx Anpjw Dimension: 800 X 1900. outlet 2,5" Lid at top.

Condition: good (used), functionality: fully functional, Year of construction: 2002, • 4 new EDI cells MK3 are available. Rodpfx Anewy Uu Aopsw • 7 EDI stations, each with 4 EDI cells MK3, will be dismantled.

Condition: excellent (used), Used insulated stainless steel container / transport container / IBC Last use: Food Item number: 10845 Volume: approx. 1000 liters Type: Vertical in galvanized stacking frame Height of feet: 100mm Material (wetted parts): 14301 / AISI 304 Manhole: 400mm Version: With insulation and electric heating (heating untested) Operating pressure according to type plate: ATM Tank dimensions: Total width: 1020mm Total length: 1220mm Total height: 1790mm Materials: Interior: 14301 / AISI 304 External parts: 14301 / AISI 304 Equipment: Nameplate: no Rsdpfx Aneuy Ratspjw Outlet diameter: 37mm Insulation Electrical heating untested

Condition: ready for operation (used), An Intralox belt, buffer table and Stöber conveyor belt are available. Belt width: approx. 1150mm, belt length: approx. 4900mm, frame material: stainless steel. Including 4 belts. Documentation available. Rjdowihywspfx Anpew
