Wire erosion

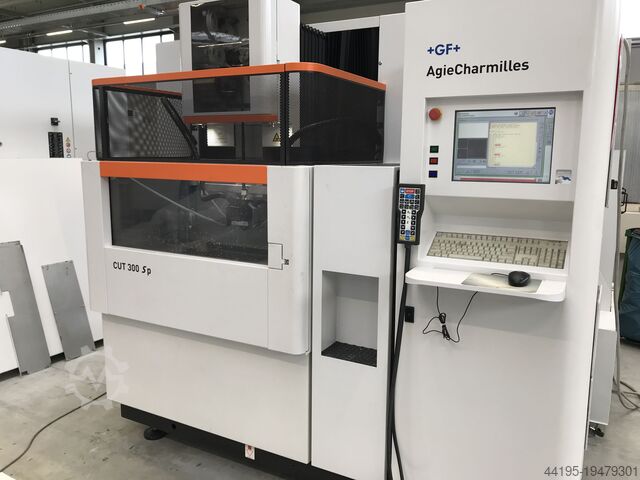

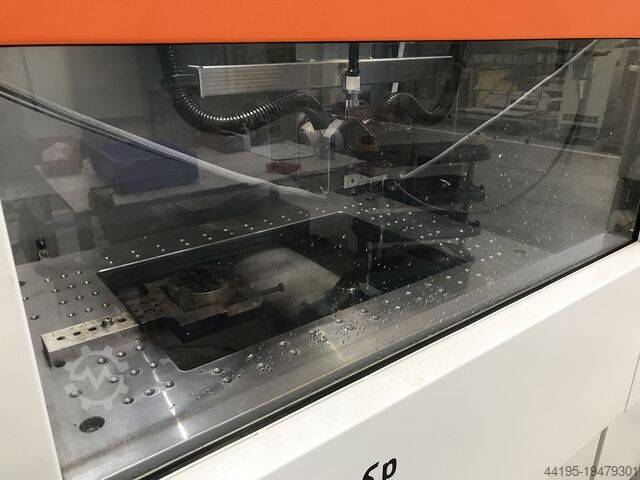

AGIE CHARMILLES CUT 300Sp

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 591.063.002.0050, travel distance X-axis: 550 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 400 mm, table width: 600 mm, overall weight: 2,850 kg, table length: 900 mm, Equipment: documentation/manual, The AgieCharmilles CUT 300 Sp is a high-performance and versatile wire EDM, ideal for precision manufacturing of molds, prototypes, and complex components, offering: * extensive spatial travels * large dielectric capacity * ability for taper cutting * robust CNC control system. Fjdpfxowwrk Nj Aa Nepp

Condition: new, sheet thickness: 45bending length: 2600upper roll diameter: 460 Technical specifications: - Hardened and polished rolls - Complete body made of ST-52 Steel - Machine have 4 rolls and designed for symmetrical working principle - Hydraulic powered cover for easy material extracting - Digital readout for side rolls (2 digital readout) - Side rolls are free for rotation and upwards downwards movements are hydraulic powered - Top and bottom rolls are driven by hydraulic and gearbox. Bottom roll’s vertical movements are hydraulic powered - Separate control panel form machine - Conic bending device - In accordance for CE norms Options: Fpjdped Ab Rhjfx Aa Nsp - variable speed of rotation EURO 5.858,-- - metarial feeding table EURO 5.100,-- - oil coiler STD. - center support EURO 18.750,-- - side supports EURO 12.500,-- - Automatic material extractor - PLC control - CNC control - Automatic material loading system - Changeable top roll - Adjustable bottom roll support system (for customer’s special requests) We have many references!

Condition: refurbished (used), Year of construction: 2015, functionality: fully functional, GF AgieCharmilles CUT 300 Sp Year of manufacture: 2015 AC CUT HMI control Travel paths (X / Y / Z): 550 x 350 x 400 mm Travel paths (U / V): 550 x 350 mm Max. taper angle: +/- 30° at 400 mm height Integrated Collision Protection (ICP) on all 5 axes Maximum workpiece dimensions: 1200 x 700 x 400 mm Maximum workpiece weight: 1,500 kg Fsdpewwr Egefx Aa Njpp Cutting speed: 400 mm²/min Best surface finish: Ra 0.10 µm Available wire diameters: 0.15 to 0.33 mm Complete system dimensions: 2600 x 2600 x 2340 mm Total system weight: 3,300 kg The machine will be cleaned, fully overhauled, and function-tested by us upon receipt of order. A 6-month warranty is provided on the machine. We are happy to offer commissioning of the machine as well.
