Wire edm machine

AGIE Progress 3

Condition: used, Year of construction: 2013, functionality: fully functional, GF AgieCharmilles Progress VP3 Year of manufacture: 2013 Travel ranges: X = 500 mm, Y = 350 mm, Z = 426 mm Travel ranges U/V axis: +/- 70 mm Maximum taper: 30° at a height of 100 mm Available wire diameters: 0.15 – 0.33 mm Iedpfx Aszcdtxeh Ajti Wire EDM machine with automatic wire threading and

Condition: refurbished (used), ECCENTRIC PRESS SGP TYPE : PEZZ 500/1700/1000 PRESSURE : 500t DOWN TABLE DIMENSIONS: 1700x1000mm Itedpfx Ahjhqqnze Aji LENGTH OF STROKE: 20-153mm DISTANCE BETWEEN RAM -TABLE: Min 700mm , Max 800mm WEIGHT: 40.000 kgr MADE IN AUSTRIA

Condition: used, Year of construction: 2007, table length 500 mm table width 350 mm ampere 65 A Control AGIEVISION 5 CNC total power requirement 20 kW weight of the machine ca. 4000 kg dimensions of the machine ca. m A G I E (Switzerland) CNC - Controlled Wire Cutting EDM Machine Model AGIECUT PROGRESS V 3, Year 2007 Working range, X Y Z (=height) 500 x 350 x 426 mm Wire head, U-V axis (helical/taper cuts) + / - 30 °/ +/- 70 mm Resolution of axes 0.0001 mm Speed for positioning the axes up to 3 m/Min. Tolerances (If machine is new) 4 µ Workpiece dimensions, L x W x H max. 1.050 x 650 x 420 mm Max.weight of workpiece with/w.o. Dieelektricum 400/800 kg Clamping System Universal Beams with fixing holes Cutting wire Ø 0.2 – 0.33 mm Size of wire roll up to 25 kg Cutting speed of wire 60 – 300 mm/s. Total electrical load, approx. 20 kW - 400 V - 50 Hz Weight, approx. 4,000 kg Dimensions of machine approx. 2.4 x 2.2 x 2.4 m Accessories / Special Features • AGIEVISION 5 CNC Path Control for 5 Axis with OS 2 Machining Version and With various subprogrammes for a easier and faster designing of machining programmes, Technology devices, PP 123 Agie Geometric helps, DNC-Connection,Graficheck in 2 D a. 3 D, Rethreading of wire when wire is cutted-off, Optimizing the programmed pathes, PURECUT for reduction of Oxidation on workpiece surface,10 various program-languages, and many more features. • Mobile electronic hand held control unit for manual adjustments and set-ups for new workpieces, and separate standing control panel with CD-recorder and large monitor. • “DA” PROGRESS integrated Dieelectricum Aggregate with chiller and Filtering System, large tank incorporated in machine’s basement, Koax flushing, • AGIE Generator with 65 A Capacity and cutting performance up to Itsdpfst Hxbkex Ah Aei 300/450 mm² • AGIE Automatic Wire Threading System with wire shredder and container mounted in backside of machine. Condition : Very good. The machine comes from a first class tool and die shop. It has been kept in very good order and was regularly maintained. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

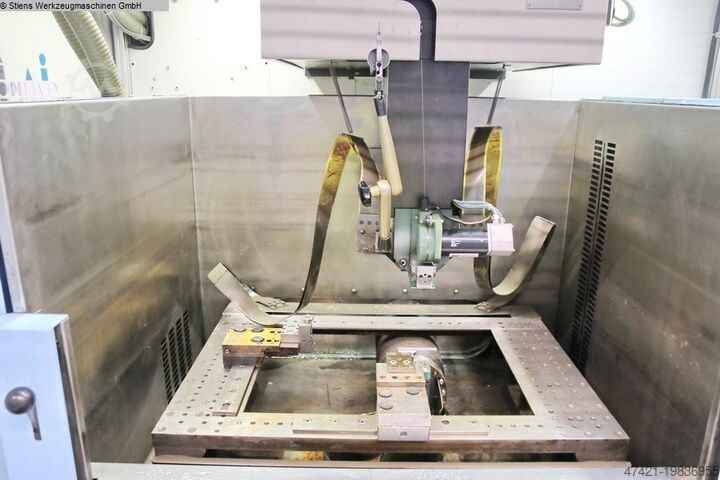

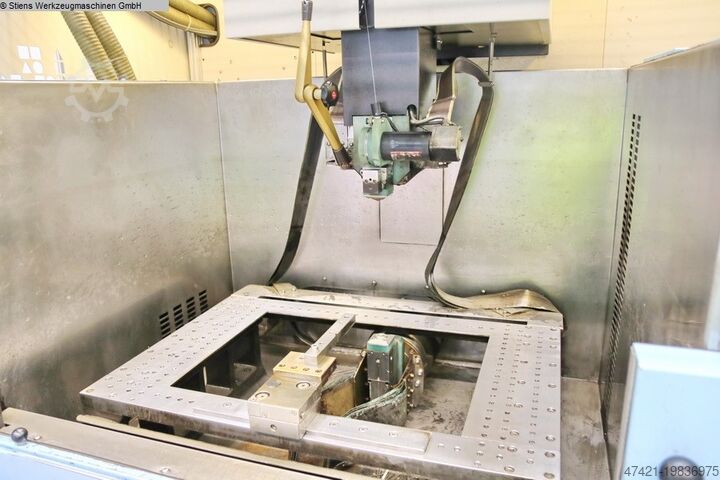

Condition: used, Year of construction: 2004, Working range 1.050 x 650 x 250 mm max. workpiece weight 400 (800) kg control Agievision AGIE max. conicity 30° / 100mm travel -x axis 500 mm travel -y axis 350 mm travel -z axis 426 mm travel U x V-axis mm rapid traverse X-axis 3 m/min rapid traverse Y-axis 3 m/min rapid traverse U-axis 0,6 m/min rapid traverse V-axis 0,6 m/min rapid traverse Z-axis 0,6 m/min wire dia. 0,2...0,33 mm total power requirement 12,1 kVA weight of the machine ca. 3,9 t dimensions of the machine ca. 2,8 x 2,4 x 2,3 m Wire Eroding Machine Itedpfx Aow Spa Noh Aji AGIE - Agiecut Progress 3

Condition: as good as new (ex-display), Year of construction: 2023, travel distance X-axis: 1,450 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,035 mm, Highlights: - fastest chip-to-chip time in this workspace dimension - Optimum footprint - Automation “ready” _____ G720F machining center X-axis travel = 1450 mm Y-axis travel = 1200 mm Z-axis travel = 1035 mm Interference diameter 1,500 mm (2x) table load 2x 750 kg Work area lighting Machine control Siemens Sinumerik ONE HT10 handheld control unit Motorized spindle 17,000 min-1, 64 Nm GROB spindle diagnosis (GSD) for twin-spindle machines Tool magazine, HSK-A-63 with 80 (2x40) tool pockets Tool loading lift for parallel loading and unloading of tools during machining time mechanic-tactile tool breakage check HSK taper shaft cleaning Air blow-off gun Inspection window for viewing the tool change area/tool robot Lighting in the tool change area/tool robot Minimum quantity lubrication unit for two spindles as single-channel Minimum quantity lubrication unit pressure booster Decentralized exhaust system MQL Scraper conveyor with wear plate Iedpfx Aetiyzdjh Asti Basic installation Clamping functionality Evaluation unit for monitoring support evaluation unit for clamping monitoring - volume flow Preparation for process-related measurement (Renishaw) Renishaw RMP400 extra long measuring probe Loading, directly into the machine by the operator Two-hand operation, incl. automatic opening at the end of the cycle HVO console Preparation for direct loading into the machine by robot Machine status light

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, overall weight: 2,650 kg, input frequency: 50 Hz, Possible accessories can be discussed on site. Iedpfx Ajy Irdksh Asti

Condition: reconditioned (used), Year of construction: 2006, operating hours: 3,422 h, functionality: fully functional, machine/vehicle number: 214, workpiece weight (max.): 400 kg, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 430 mm, wire diameter (max.): 0.3 mm, No minimum price – guaranteed sale to the highest bidder! Itjdpfx Aoy Ed E Ijh Asi The machine was overhauled in 2025! The corresponding invoice is included. TECHNICAL DETAILS Maximum workpiece weight: 400 kg Travel X-axis: 500 mm Travel Y-axis: 350 mm Travel Z-axis: 430 mm Maximum wire diameter: 0.3 mm Table load: 400 kg Maximum workpiece height: 420 mm Positioning accuracy: 0.001 mm MACHINE DETAILS Input voltage: 400 V Input frequency: 50 Hz Input current: 17 A Voltage: 3 x 400 V Power: 12.1 kVA Rated current: 17.5 A Short-circuit current: 10 kA Total weight: 2,650 kg Operating hours: 17,800 h EDM hours: 3,422 h EQUIPMENT Wire alignment device

Condition: good (used), Year of construction: 2000, MAKA KPF 334R Year of manufacture: 2000 Compact design with control cabinet integrated into the base frame. CNC control BWO 900C, 1 MB memory, in the integrated PC. Technical data: Working areas / cube dimensions: for tool length 130 mm and diameter 60 mm X-axis: 1,000 mm Y-axis: 1,000 mm Z-axis: 300 mm, at 120 mm tool height A-axis: 540° B-axis: 200° (+/- 100°) Rapid traverse speed: X/Y-axis: 45 m/min. Z-axis: 15 m/min. A/B-axis: 10,000 °/min. 1 high-speed milling spindle HSD 6.8 kW, Speed continuously adjustable from 2,000 – 24,000 rpm, Rated power from 12,000 rpm. With ceramic bearing, air-cooled. Tool holder SK 30 with tool changer. 1 drum-type tool magazine for 10 tools up to Ø 60 mm and – depending on the tool diameter – 130 mm length from the top surface. Aluminum table top 1,000 x 1,000 mm with grid drilling 1 vacuum pump 54 m³/h, 1 vacuum clamping circuit Automatic central lubrication, Ijdpfsir Aq Tsx Ah Aoti Control cabinet with air conditioning unit. Work safety: Sliding door for front loading, protective cabin for the rear of the machine, with a side access door; the cabin is open at the top. Connection values: Voltage: 400 V (max. +/- 5%) Frequency: 50 Hz The use of an RCD (residual current device) in the machine power supply is not possible. Operating temperature: 10 – 35° C Pneumatics: 6 bar, approx. 18 m³/h Tool holders and machining tools are not included in the scope of supply. Used machine, without any guarantee or warranty.

Condition: good (used), Year of construction: 2005, Machine is in good working condition. Itsdjw Rqu Sspfx Ah Aei

Condition: refurbished (used), Year of construction: 2020, Machine Type: Cylindrical Grinding Machine Manufacturer: Schaudt Maschinenbau GmbH Model: PS 4 Year of Original Manufacture: 1986 Renovation/Retrofit: 2020 Control System (Post-Retrofit): Siemens CNC SINUMERIK 840D General Specifications Application: External cylindrical grinding Grinding Method: Plunge, traverse, face grinding Control Type: CNC (Siemens retrofit in 2020) Machine Weight: Approx. 3,500 – 4,500 kg Installation Area: Approx. 3.5 m x 2.0 m Workpiece Capacity Center Height: 180 mm Distance Between Centers: 1000 mm (varies by version) Max Workpiece Diameter: 360 mm Max Workpiece Weight: ~150 kg between centers Grinding Spindle Grinding Wheel Diameter: 400 mm Grinding Wheel Width: 50 mm Bore: 127 mm Peripheral Speed: Up to 45 m/s Spindle Drive Power: ~7.5 kW Spindle Speed Range: Up to 1,500 – 2,500 rpm (depending on wheel size) Headstock Type: Fixed or rotating spindle Speed Range (if motorized): ~30 – 500 rpm Taper: MK4 or similar Drive: AC Servo (post-retrofit) Tailstock Type: Manual or hydraulically actuated Quill Stroke: Approx. 50 mm Quill Diameter: ~75 mm Axes X-Axis (infeed): CNC-controlled Z-Axis (longitudinal): CNC-controlled Resolution: 0.001 mm Drive Type: Digital servo motors with ball screw Position Feedback: Absolute/Incremental linear encoders Coolant System Coolant Tank Capacity: Approx. 150 – 250 liters Coolant Pump: High-pressure, with filtration system Other Features (Post-Retrofit) Siemens HMI with touch interface Electronic handwheels (MPG) Updated safety system and enclosure New electrical cabinet with ventilation and cooling Optional AE sensor for gap detection or touch dressing Isdpfx Aow Avrzsh Aeti
