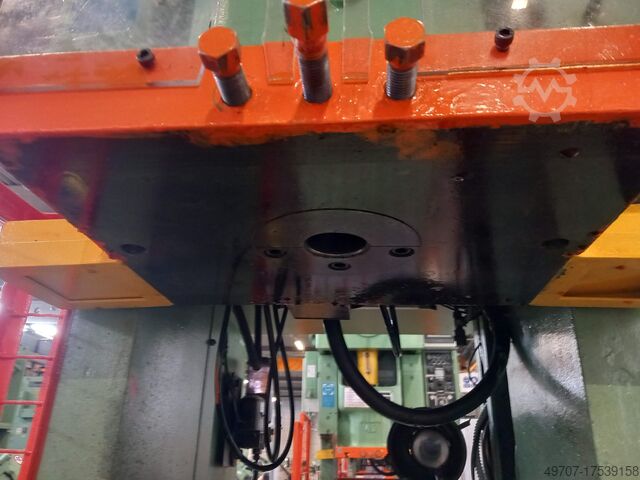

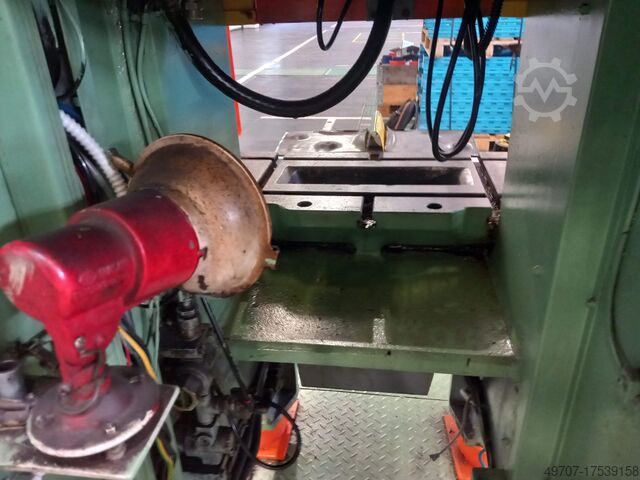

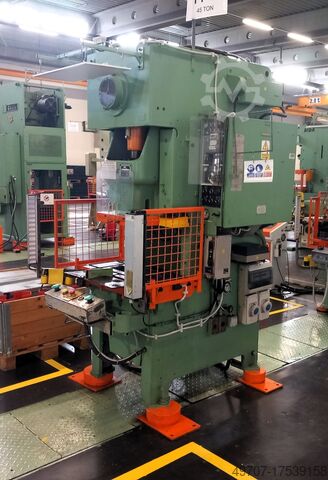

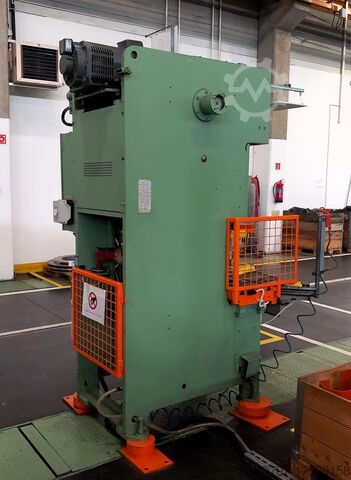

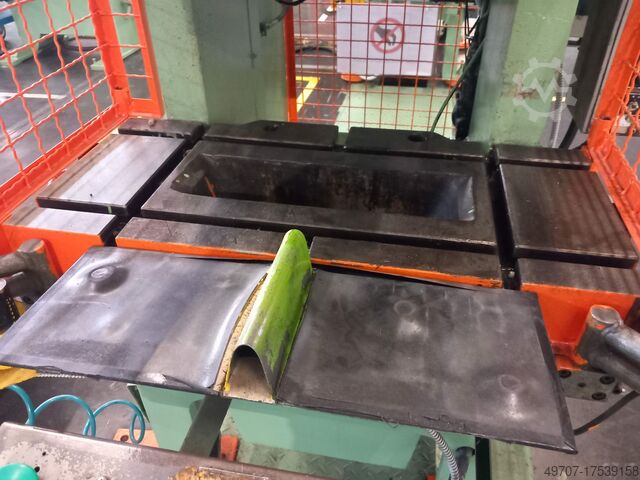

AIDA NC1-45 45t eccentric press

AIDA NC1-45

Year of construction: 1999, condition: ready for operation (used), Module size: 5mm, max. workpiece diameter: 180mm, axial travel: 400mm, shank travel: 200mm, milling cutter diameter: 150mm, tool speed: 2250rpm, table speed: 250rpm, max. tool clamping length for bore milling cutter/end milling cutter: 236mm/360mm, control: Liebherr PC-NC. Documentation available. On-site inspection is possible. Knedpfx Ahovpviujvsd

Condition: good (used), Year of construction: 1998, Max. Pitch circle diameter External gearing 300 mm Max. Pitch circle diameter internal gearing 300 mm Max. Outer diameter of workpiece (equipment) 450 mm max. module 6 gear hobbing width -max. 100 mm Max. Helix angle (with tool Ø 125 mm) +/- 45 ° strokes - infinitely variable 130 - 1300 Hub/min workpiece weight 1000 kg Minimum distance table top - tool spindle -55 / +300 mm Maximum distance table top - tool spindle 200 mm Maximum distance table top - tool spindle 350 mm Manual Upright side shift +/- 25 mm Manual swivelling angle of the tool spindle +/- 0,5 ° Knsdpsvu E Nuefx Ahvjd Max. Tool speed 15 UpM Max. Workpiece speed 27 UpM Max. Tool diameter 7 Zoll voltage 400 V frequency 50 Hz Max. Line power 70 A total power requirement 48 kW weight of the machine ca. 11 t dimensions of the machine ca. 4,27 x 3,11 x 2,87 m taper in main spindle SK 45 table hole 40 mm control Siemens Sinumerik 840 C Gleason PFAUTER gear shaping machine Mod. PSA 300 The CNC modular gear shaping machine with skiving cutter for the machining of external and internal cylindrical gears, with straight or helical involute with straight or helical involute toothing, as well as any other profile splitting process. The work cycle is controlled by a CNC unit, with specific software for machining the gears, machining. Field of application --> The PSA 300 has been designed for the production of: - Gears with straight external teeth - Gears with straight internal teeth - Gears with external helical teeth - Gears with internal helical teeth

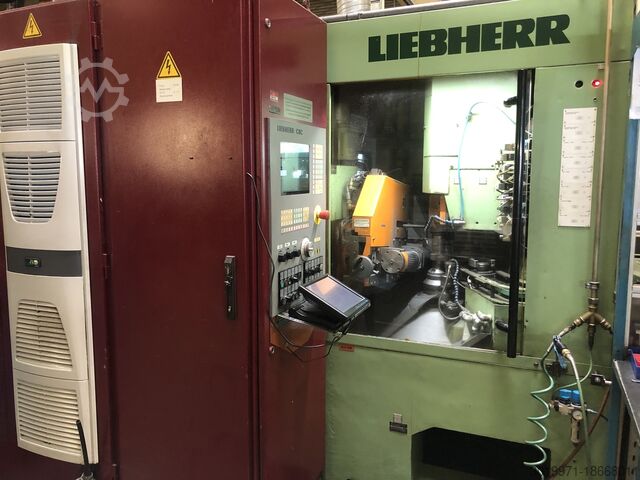

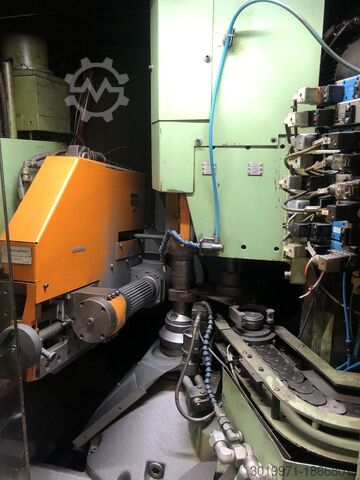

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1997, machine/vehicle number: 0903, Data: Hobbing cutter diameter max. 90 mm Table diameter 145 mm Module -Max. 3 mm Smallest number of teeth that can be milled 4 Milling head swivel angle +/- 45 ° Resolution accuracy 0.1 degrees Workpiece table load 17 kN Milling cutter speed 450 - 4,500 1/min Operating voltage 400 V Control voltage 24 V Frequency 50 Hz Max. nominal current 55 A Kjdpfx Ahov H Atnsvjnd Fuse in the supply line 63 A Max. milling diameter of spur gears/helical gears 125 mm Max. milling width of spur gears/helical gears 250 (axial) mm Spindle stroke 180 mm Max. milling cutter width 200 mm Control system LIEBHERR PC NC If you are interested, another Liebherr LC122 (gear cutting) is available, currently linked to a Wera DRT 250 (sloping) line. Without packaging; any warranty rights are excluded. If you want to dismantle the system yourself, please include the relevant information in your bid. We accept no liability for the accuracy of the technical data, for the completeness of accessories and tools, or for compliance with all safety and environmental protection requirements specified in the accident prevention regulations.
