Flanging and Seam Rolling Machine

AKBEND AKM 250 MOTO

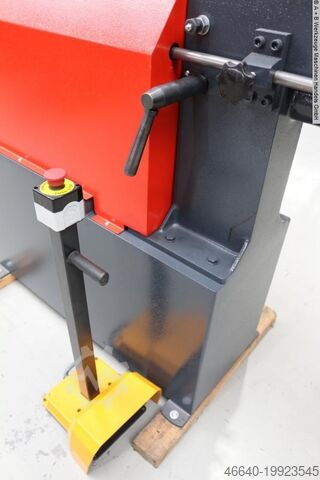

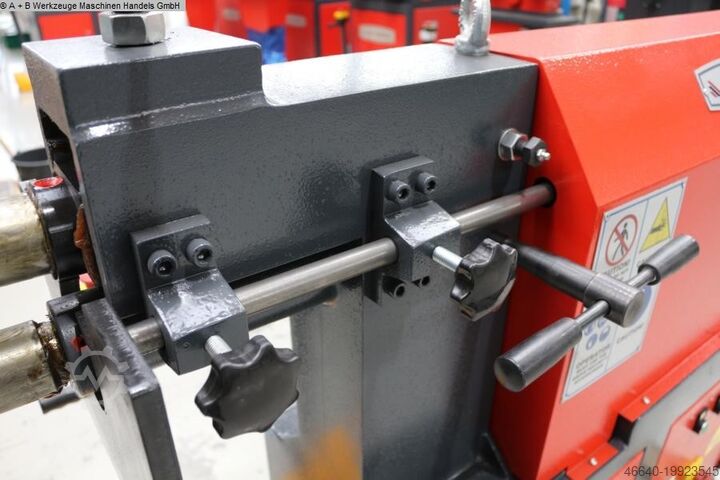

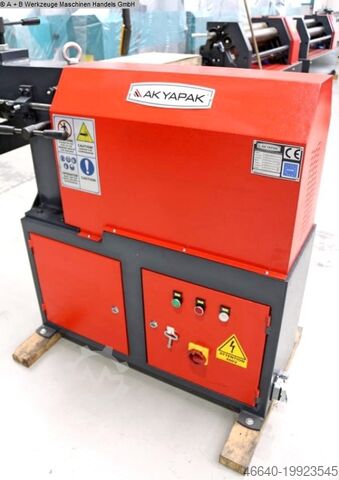

Condition: used, Year of construction: 2021, plate thickness 2.5 mm throat 260 mm distance between roll centers 92.0 mm Dedox A H T Topfx Adgjup weight 295 kg range L-W-H 1200 x 700 x 1200 mm Equipment: - robust beading machine with motor-driven rollers - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation

Condition: new, plate thickness 0,8 mm throat 180 mm weight of the machine ca. 22 Kg dimensions of the machine ca. 500 x 450 x 160 mm Flanging machine is equipped with: Dsdpsht R Hmefx Adgeup - Emergency switch - Footswitch - 7 pcs. Roll sets

Condition: good (used), Working width: 2030 mm Sheet thickness: 1.5 mm Top roller diameter: 82/90 mm Bottom roller diameter: 85/92 mm Electrical connection: 380 V, 1.5 kW Dodovxpptepfx Adgsup Weight: approx. 1300 kg Space required: 2800 x 850 x 1120 mm

Condition: ready for operation (used), Year of construction: 2000, sheet width 2520 mm plate thickness 4.0 mm ST thickness at "Niro-steel" 2.0 mm upper clamping bar adjustment 250 mm adjustment speed 100 mm/sec Adjustment folding beam 80.0 mm work height max. 869 mm control POS 2000 voltage 400 V total power requirement 6.0 kW weight 4100 kg range L-W-H 4120 x 2400 x 2090 mm current list price ~ 90.000 euro from a maintenance workshop with excellent equipment (!!) new touchscreen installed in 2023 - in checked conditoins - machinevideo - ?v=5Y2NheJjdWo Features: - CNC electro-motorized universal bending machine * ??High-precision mechanics with modern control technology * For individual and series production * Robust high-speed machine with high axis speeds * Torsion-resistant welded construction - SCHRÖDER CNC control model POS 2000 * Control panel front right (operable with PC mouse) * Touchscreen replaced in 2023 * Color display * USB interface * Automatic cutting calculation * Material and tool library Duodpfsx H Alcex Adgsp * Dimensionally accurate bending simulation * Windows XP operating system * Swiveling control, front right - Servo inverter-controlled drives * For bending/upper beam & electric backgauge - CNC motorized lower beam adjustment - CNC electro-motorized Backgauge * Travel speed 300 mm/sec. * with rear sheet metal support surface - 1x freely movable double foot switch - Operating instructions (PDF) * Optional accessories included: - SCHRÖDER split gouge tools - top

Condition: used, Year of construction: 2022, plate thickness 4.0 mm throat 260 mm distance between roll centers 132 mm stroke 55.0 OW mm tool adaptor Ø 35 mm, 12 mm Nut mm total power requirement 3.0 kW Dusdpexaazljfx Adgjp weight of the machine ca. 450 kg. range L-W-H 1600 x 900 x 1200 mm Exhibition machine from 2022 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - hydraulic adjustment of the upper roller, with pressure gauge - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation
