Crusher

Alpine

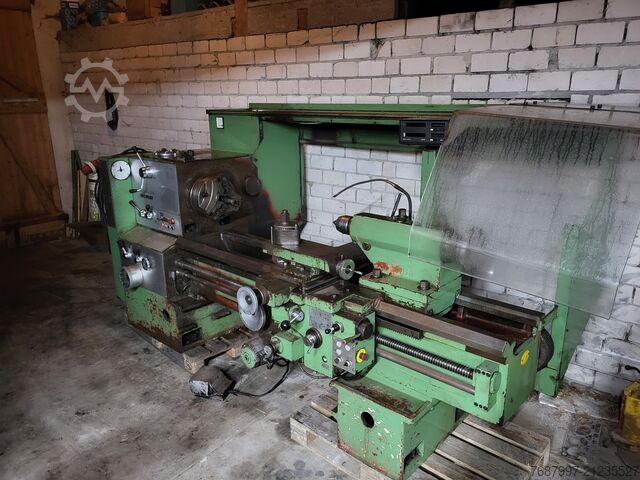

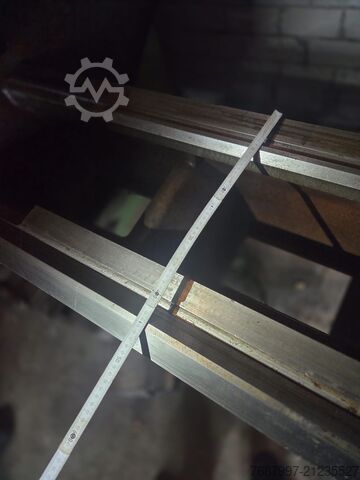

Condition: used, Year of construction: 1985, greates pass round over bed 810 mm swing diameter over face slide 560 mm centre distance 00 mm bed width 480 mm slide valve travel 400 mm upper head travel 180 mm turning tool - shaft cross cut 32 x 25 mm power capacity 22 kW max. torque on the spindle 30 Nm spindle head Gr. 11, DIN 55027 spindle diameter in front bearing 152,4 mm spindle bore 106 mm turning speed range 9 - 1800 U/min turning speeds 24 longitudinal feeds: 0,092 - mm/U face feeds 0,046 - mm/U Hsdpfxsxn Ty Re Afcji metric threading 0,5-112 mm inch threading 1/4 - 56 G/1" thread - module mm thread - DP 1 - 224 Pitch tailstock quill diameter 115 mm quill stroke 225 mm taper of tail spindle MK 6 max. workpiece weight between centres 00 kg max. workpiece weight -without tailstock 750 kg 3-jaw chuck Röhm, Ø Overall size ca. 4600x1900x1600 mm weight ca. 4300 kg Number of feed stages and threads: 99 Accessories: 3-axis digital display Mobile chip guard over the entire length (plexiglass) Coolant device Rapid traverse in Z and X axes Multifix steel holder size C with 6 interchangeable cassettes Bed stop with micrometer scale Fixed steady rest - 300 mm Taper sleeve for main spindle MK 6 Travelling center point (center point) MK 6 Bed guides in very good condition!

Condition: used, ZINC-COATING PLANT FOR PIPES , made by VOEST ALPINE / LOECO Maximum capacity: 60.000 t/year (16 t/h) Hjdpfx Afjyman Hecei Producible dimensions: ¼” to 4” Producible lengths: 4 to 7 m Zn layer: 400 g/m2 according to DIN 2444 Maximum capacity: 60.000 t/year (16 t/h) Producible dimensions: ¼” to 4” Producible lengths: 4 to 7 m Zn layer: 400 g/m2 according to DIN 2444

Condition: used, turning diameter 180 mm turning length 1000 mm swing diameter over bed slide 380 mm centre height 180 mm spindle head DIN 55027 / DIN ISO 702-3 spindle bore 52 mm turning speeds 33 - 1500 U/min transmission ratio 11 feed per revolution 0,072 - 4,038 U/mm diameter of quill 65 mm quill stroke 180 mm total power requirement 5,5 kW weight of the machine ca. 1800 kg dimensions of the machine ca. 2200 x 1200 x 1600 mm Equipment: - 3-jaw chuck - Multi-Fix steel holder - Digital display Hjdpoyk Dg Ujfx Afcji - Coolant device - Machine light

Condition: used, L + Z Lathe VOEST ALPINE - WEILER Type DA 210 / 1 Machine No. 1-004/2552 Year of manufacture: 1983 Centre distance: 1000 mm Swing over bed: 420 mm Centre height over bed: 210 mm Swing over cross slide: 240 mm Centre height over cross slide: 120 mm Spindle bore: 52 mm Spindle speed: 33 - 1500 rpm, 12 steps Chuck flange: short taper DIN 55027 size 6, 4x M12 Tailstock taper: MK 4 Motor power: 5.5 kW Power supply: 380 Volt, 50 Hz - Spindle speed via 12 gearbox steps - EMCO 3-jaw scroll chuck Ø 200 mm with turning and boring jaws - Multifix size B quick-change tool post with 3 change cartridges - Automatic longitudinal and face feed - Coolant system - Spindle brake Hodpfoykca Hjx Afcsi - Emergency stop - Machine lamp - Operating manual Space requirement (L x W x H): 2200 x 1200 x 1450 mm Weight: 1400 kg Very good condition

Condition: ready for operation (used), Year of construction: 1980, functionality: fully functional, turning diameter over cross slide: 300 mm, spindle bore: 80 mm, turning length: 1,500 mm, turning diameter: 300 mm, center height: 180 mm, bed width: 485 mm, total length: 3,700 mm, total width: 1,600 mm, total height: 2,000 mm, workpiece weight (max.): 4,000 kg, For sale: VÖEST-ALPINE lathe in operational condition. An external hydraulic unit is included in the offer. The machine functioned flawlessly until it was removed from service. Loading by arrangement is possible. Year of manufacture: approx. 1980. Hjdpfxsykb Iie Afcoi

Condition: good (used), Year of construction: 1992, functionality: fully functional, Spindle bore: 42 mm Hjdeykahzjpfx Afcoi Swing over bed: 330 mm Multifix tool holder Tailstock with MK3 taper Speed: 1-4500 rpm

Condition: good (used), Year of construction: 1989, Vertical crushing plant Voest Alpine ZS 100 Basic year of construction 1989 (machine/rotor completely overhauled) Hjdpju U Ukiofx Afcji Machine number 89 914 04 incl. drive motor 145 KW

Year of construction: 2000, condition: ready for operation (used), A complete Hosokawa mill for processing polyester resin lumps is available. Complete plant: Feed material: polyester resin, max. feed grain size (dry): 800mm/600mm/20mm-30mm, fineness: below 1.5mm, round hole diameter: 15mm, plant capacity: approx. 3000kg/h, analysis method: Alpine air jet screen 200 LS-N. 1) Alpine single-shaft shredder type A 1500P, feed hopper opening: 2030mm/1440mm, feed hopper volume: 2.5m³, working width: 1500mm, knife circle: 300mm, rotor speed: 100rpm, motor power: 37kW, machine dimensions X/Y/Z: approx. 2100mm/2200mm/2300mm, weight: approx. 3500kg. 2) Automatic dedusting filter AE 48 L, filter surface: 42m², filter bags: Needle felt 550g/m². 3) Alpine Compact-Line granulator 45/100 CL, cutting tool rows: 4, min. hole width: 3mm, required power: 55kW. Including extraction system, conveyor system and accessories/peripheral equipment. Documentation available. On-site inspection is possible. Hsdpfxevdu N As Afcsi

Condition: ready for operation (used), A complete UPG system for polyester resin granulate production is available. 1) High-speed Henschel fluid mixer FM 350C, speed: 1500 rpm, heating unit: Lauda. 2) Raw material supply system with 6 bunkers, screws and vibrating chutes. 3) Conveying system with a collecting tank located 9m above the mixer and a Demag 4t rope hoist. 4) Schenk fluidized bed cooler. 5) Engelsmann ED 250/4 flat bed screen. 6) Alpine B40/63 RO granulator. 7) 2 annular gap compactors Siemens. 8) 2 Kessler & Luch blowers, volume flow: 7000m³/h. 9) Aerobic filter, filter capacity: 4000m³/h. Documentation available. On-site inspection is possible. Hsdpfowk Nk Tsx Afcji

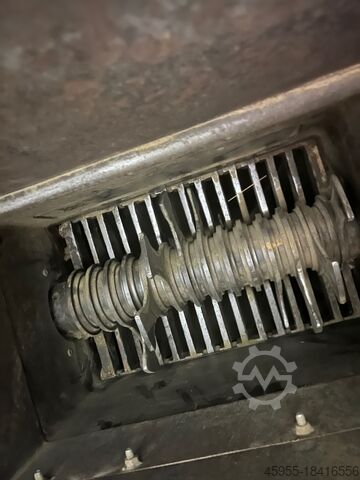

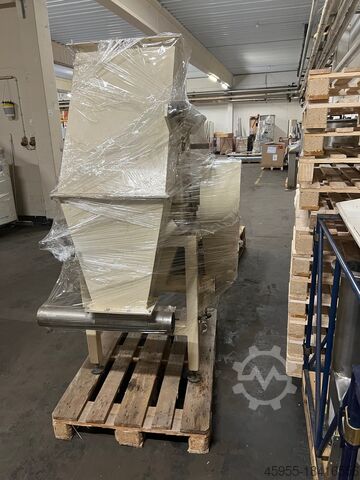

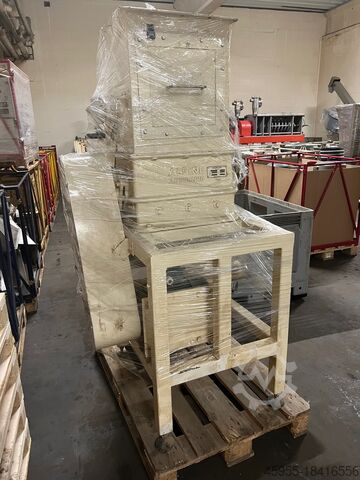

Year of construction: 1976, condition: ready for operation (used), Grinding fineness range: 50µm-5mm, rotor diameter: 630mm, weight: approx. 1200kg. An on-site inspection is possible. Hodpoyarrkofx Afcoi
