Pillar drill

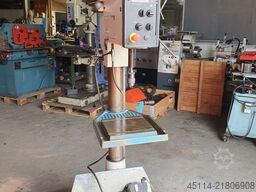

ALZMETALL ALZSTAR 40

Condition: new, Year of construction: 2024, == Exhibition machine == ALZMETALL column drilling machine ALZSTAR 40 SV with coolant unit B (option 25) (consisting of separate tank (33l), pump with motor protection switch, complete fitting) and LED machine light Standard equipment: Mushroom pushbutton, reversing switch (for clockwise and anticlockwise rotation), motor protection switch Infinitely variable speed adjustment, digital speed display, feed overload protection, protection class IP54, connection plug Spindle protection with electrical fuse Technical data: Drilling capacity steel E335 (St 60) 40 mm Thread cutting: Psdpjd Hy Elsfx Ag Dsgk Steel E335 (St 60) M 24 Cast iron EN-GJL-200 (GG20) M 30 Short spindle MK 3 Spindle stroke 120 mm Projection 293 mm Column diameter 115 mm Machine table, usable support 514 x 360 mm T-slots, number x width x distance 2 x 14 x 224 mm Spindle-to-table distance min./max. 117/701 mm Feed rate 0.10 + 0.20 mm/rev Machine height without options approx. 1840 mm Net weight approx. 285 kg Drive stepless Motor 1500 / 3000 rpm Power 1.45 / 1.9 kW Spindle speed 160-2250 rpm

Condition: new, 40 mm threading in St 60 M24 threading in GG 20 M30 Short spindle MK 3 spindle turning speed - stepless 160 - 2250 U/min Center of spindle to wall or column 293 mm Column diameter 115 mm spindle stroke 120 mm Pgedpjyvvm Sjfx Ag Djk Machine table - usable table surface 514 x 360 mm T-Slots Amount - Width - Distance 2 x 14 x 224 mm Distance spindle-table min. 117/701 mm feed 0,10 + 0,20 mm/U Motor output 1,45 / 1,9 kW height of the machine ca. 1840 mm weight of the machine ca. 285 kg

Condition: new, 40 mm threading in St 60 M24 threading in GG 20 M30 Short spindle MK 3 Center of spindle to wall or column 293 mm spindle turning speed - stepless 160 - 2250 U/min Column diameter 115 mm spindle stroke 120 mm Machine table - usable table surface 514 x 360 mm T-Slots Amount - Width - Distance 2 x 14 x 224 mm Pgjdpfsyvvmrsx Ag Dek Distance spindle-table min. 117/701 mm feed 0,10 + 0,20 mm/U Motor output 1,45 / 1,9 kW height of the machine ca. 1840 mm weight of the machine ca. 285 kg

Condition: new, Alzmetall Alzstar 40/S pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 40/S Condition: new Drilling capacity steel E335 (St 60) 40 mm Short spindle MK 3 Spindle stroke 120 mm Thrust 293 mm Column diameter 115 mm Machine table, usable support 514 x 360 mm T-slots, number x width x distance 2 x 14 x 224 mm Distance spindle-table min./max. 117/701 mm Feed manual Pjdpfx Agoyucc As Dogk Machine height without options approx. 1840 mm Net weight approx. 270 kg Spindle speed rpm 160-2250

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 160 - 2250 U/min column diameter 115 mm feed 0.10 + 0.20 mm/U T-slots 2 x 14 x 224 mm distance spindle /table 117 / 701 mm engine output 1.45 / 1.90 kW weight 285 kg Machine height 1840 mm NEW ALZMETALL MODEL RANGE 7 "TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERGENCY STOP - Main switch, lockable - Right and left rotation by contactor control - Control voltage 24 volts - Protection class IP 54 - Painting: DD textured paint, signal white RAL 9003 PANTONE 7545c, black including special accessories: Pgjdpfsxab Rhjx Ag Dek - 25. Coolant system B.

Condition: new, bore capacity in steel (diameter) 40.0 mm throat 293 mm bore stroke 120 mm morse taper 3 MK table: 515 x 360 mm turning speeds 160 - 2250 U/min Pgsdpfx Ajxaakajg Dok column diameter 115 mm feed 0.10 + 0.20 mm/U distance spindle /table 117 / 701 mm total power requirement 1.45 / 1.90 kW weight 285 kg range L-W-H 500 x 800 x 1840 mm Furnishing: - autom. Feed 0.10 + 0.20 mm / rev - stepless speed adjustment - Short spindle MK 3 - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for clockwise and counterclockwise rotation - Digital speed display - Feed overload protection - Spindle protection with electrical fuse - 2 m cable with plug 16A - Operating instructions in German including special equipment: - Coolant device "B" pos. 25.

Condition: new, Drilling capacity in St 60 40 mm threading in St 60 M 24 mm threading in GG 20 M 30 bore stroke 120 mm Short spindle MK 3 throat 293 mm Pgsdpfx Aogp Dyxog Dek column diameter 115 mm Machine table - usable table surface 514 x 360 mm T-Slots Amount - Width - Distance 2 x 14 x 224 mm Distance spindle - machine table min./max. 117 / 701 mm feed 0,10 + 0,20 mm/U spindle turning speed range 160 - 2250 UpM total power requirement 1,45 / 1,9 kW height of the machine 1840 mm weight of the machine ca. 285 kg Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pump with motor protection switch, complete fitting

Condition: new, Alzmetall Alzstar 40/SV pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 40/SV Condition: new Pgsdsxd Tpwspfx Ag Dsk Technical data: Column diameter: 115 mm Machine table (usable support): 514 x 360 mm T-slots (number x width x distance): 2 x 14 x 224 mm Distance spindle-table (min./max.): 117 / 701 mm 2 feeds: 0.1 + 0.2 mm/rev Height (mm): approx. 1840 Drilling capacity St 60 (mm): 40 Spindle stroke (mm): 120 Thrust (mm): 293 Motor (kW): 1.45 / 1.9 Speed range (r/min): 160 - 2250 Weight (kg): 285
