Bench drill ALZTRONIC i12ALZMETALL
ALZTRONIC i12
Bench drill ALZTRONIC i12
ALZMETALL
ALZTRONIC i12
Year of construction
2023
Condition
New
Location
Waiblingen

Machine data
- Machine type:
- Bench drill ALZTRONIC i12
- Manufacturer:
- ALZMETALL
- Model:
- ALZTRONIC i12
- Machine number:
- PRJ065955
- Year of construction:
- 2023
- Condition:
- new
Price & Location
- Location:
- Seewiesenstraße 28, 71334 Waiblingen, Deutschland

Call
Details about the offer
- Listing ID:
- A996-3395
- Update:
- 12.01.2025
Description

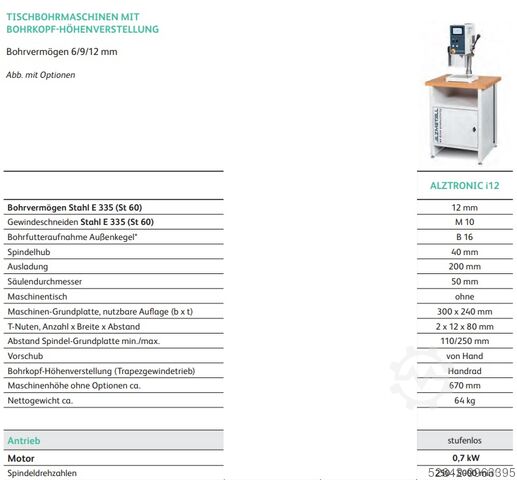

ALZMETALL bench drill press, drilling capacity in steel: 12 mm
Drill chuck mounting: B16 external taper, spindle stroke: 40 mm, overhang: 200 mm, column diameter: 50 mm, usable table surface: 300x240 mm, with T-slots 2 x 12 mm x 80 mm, distance spindle-base plate min./max. 110/250, manual feed, machine height without options: 670 mm, net weight: 64 kg.
- Speed infinitely variable 250-5000 rpm
Standard equipment:

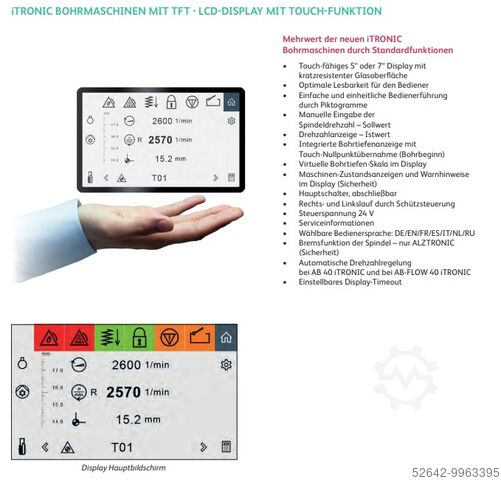

5" TFT-LCD display with touch function: manual input of target spindle speed, display of actual speed, integrated depth gauge with touch function for zeroing, virtual depth scale on the display, machine status indicators and warning messages on the display, service information, selectable operating language DE/EN/FR/ES/IT/NL/RU
Ncedjlub Rdopfx Ac Teu
AC motor 230 volts, 50 Hz, connection plug pre-assembled, cable length 2 m, three separate buttons for clockwise rotation - counterclockwise rotation - stop,
Spindle stop via braking function, spindle guard with electrical protection, main switch lockable, mushroom push button (self-locking) for EMERGENCY STOP, speed adjustment continuously variable via potentiometer, protection class IP54, spindle guard with electrical protection, paint finish: DD textured paint signal white RAL 9003, PANTONE 7545c, black
including the following options:
LED machine light, item no. 12.
Delivery time: from stock, Waiblingen/Beinstein
The listing was translated automatically. Translation errors are possible.
Drill chuck mounting: B16 external taper, spindle stroke: 40 mm, overhang: 200 mm, column diameter: 50 mm, usable table surface: 300x240 mm, with T-slots 2 x 12 mm x 80 mm, distance spindle-base plate min./max. 110/250, manual feed, machine height without options: 670 mm, net weight: 64 kg.
- Speed infinitely variable 250-5000 rpm
Standard equipment:
5" TFT-LCD display with touch function: manual input of target spindle speed, display of actual speed, integrated depth gauge with touch function for zeroing, virtual depth scale on the display, machine status indicators and warning messages on the display, service information, selectable operating language DE/EN/FR/ES/IT/NL/RU
Ncedjlub Rdopfx Ac Teu
AC motor 230 volts, 50 Hz, connection plug pre-assembled, cable length 2 m, three separate buttons for clockwise rotation - counterclockwise rotation - stop,
Spindle stop via braking function, spindle guard with electrical protection, main switch lockable, mushroom push button (self-locking) for EMERGENCY STOP, speed adjustment continuously variable via potentiometer, protection class IP54, spindle guard with electrical protection, paint finish: DD textured paint signal white RAL 9003, PANTONE 7545c, black
including the following options:
LED machine light, item no. 12.
Delivery time: from stock, Waiblingen/Beinstein
The listing was translated automatically. Translation errors are possible.
