Pillar drilling machine

ALZMETALL AX 2

Condition: good (used), DRILLING CAPACITY STEEL E335 (ST 60) [MM]: 14 TAPPING PERFORMANCE STEEL E335 (ST 60) [MM]: M 14 SPINDLE, SHORT: MT 2 DISTANCE SPINDLE TO COLUMN [MM]: 250 TABLE CLAMPING AREA [MM]: 370 x 300 DISTANCE SPINDLE - TABLE MIN./MAX. [MM]: 125 / 455 COLUMN DIAMETER [MM]: 90 Z-TRAVEL OF SPINDLE [MM]: 100 FEED: manual Pgodpfx Aoy D Ebnog Dsk POWER [KW]: 0.6 / 0.95 POWER 2 [RPM]: 0.6 / 0.95 MOTOR 1 [RPM]: 750 / 1500 MOTOR 2 [RPM]: 750 / 1500 SPINDLE RPM RANGE | OPTION 1 [RPM]: 125 – 2,400 SPINDLE RPM RANGE | OPTION 2 [RPM]: 225 – 4,300

Condition: good (used), Year of construction: 1992, Drilling machine, bench drill, pillar drill, column drill -Manufacturer: Alzmetall, Pillar drilling machine type AX2 S -Spindle mount: MK2 -Motor: 0.37 / 0.55 kW -Speed adjustment: stepless -Speeds: 450 - 4300 rpm -Table size: 250 x 250 mm -Travel distance: 560 mm -Spindle stroke: 90 mm -Protrusion: 250 mm -Column Ø: 90 mm -Dimensions: 720/540/H1650 mm -Weight: 145 kg Pjdpfeyv Ahvex Ag Djgk

Condition: not inspected (used), Year of construction: 1989, machine/vehicle number: 1441, functionality: unexamined, rotational speed (max.): 3,000 rpm, total length: 800 mm, table width: 240 mm, table length: 250 mm, overall weight: 250 kg, No reserve price – guaranteed sale to the highest bidder! Bidding obligates you to collect the item within the set deadlines: either between 11.05.2026 and 13.05.2026 or between 18.05.2026 and 21.05.2026! TECHNICAL DETAILS Spindle speeds: 200 – 3,000 rpm Table dimensions: 250 x 240 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 800 x 560 x 1,500 mm Weight: 250 kg Pgedpsym N Rwofx Ag Dsk EQUIPMENT With 2 T-slots Frequency inverter for stepless speed control External reference: Rühl

Condition: excellent (used), Year of construction: 1999, Drilling capacity (steel): 18mm Drilling capacity (cast): 23mm Thread cutting (steel): M14mm Pgedpfxskytxzj Ag Dok Spindle holder: MK 2 Spindle stroke: 100mm Extension: 250mm Column diameter: 90mm Power: 0.55 kW Spindle speed: 125 – 2400 RPM / 225 – 4300 RPM

Condition: used, Year of construction: 1986, Technical details: bore capacity in steel (diameter): 18 mm throat: 250 mm Pgodpfx Aswiwwfsg Dsk bore stroke: 100 mm drill capacity in cast iron: Ø 23 mm metrical thread cutting: ST60: M10 / GG20: M 14 M spindle taper MT: MK 2 spindle speed:: 400 - 630 - 1000 - 1600 - 2500 U/min feed: manuell mm/U Distance spindle/table max.: 75 / 605 mm table clamping surface:: 250 x 250 mm column diameter: Ø 90 mm total power requirement: 0,55 kW weight of the machine ca.: ca. 170 kg dimension machine xH: 0,4 x 0,8 x 1,8 m

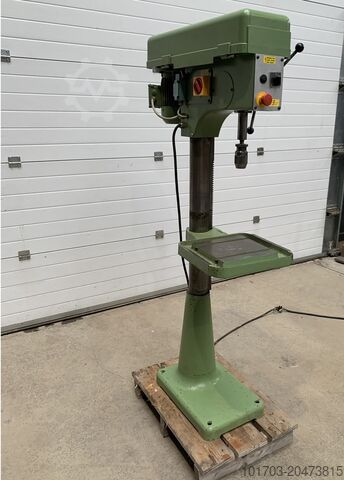

Condition: excellent (used), Year of construction: 1985, Column Drilling Machine ALZMETALL AX2 Cone: CM2 Spindle exit: 100 mm Rotation: from 200 to 500 RPM Table size: Length 370 mm x Width 350 mm Year of construction: 1985 Maxi distance spindle nose/table: 480 mm Throat depth: 250 mm Pgedpfx Agsxu H T Ds Dok 2 R5247921 speeds motor Voltage: 380 V Width: 500 mm Depth: 900 mm Total height: 1700 mm Weight: approx 250 kg
