Press brake

Amada

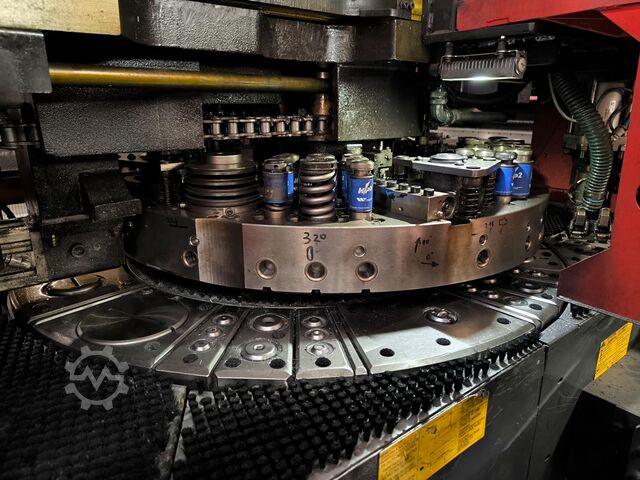

Condition: ready for operation (used), Year of construction: 2000, operating hours: 34,744 h, functionality: fully functional, machine/vehicle number: 258 032, overall weight: 11,500 kg, punching force: 20 t, positioning accuracy: 0.07 mm, tool diameter: 89 mm, TECHNICAL DETAILS Machine capacity: 196 kN (20 t) Air pressure: 5 bar Air consumption: 250 Nl/min Oil capacity: 160 l Turret speed: 25 rpm Travel Ranges Machine travel range without repositioning: 1,250 mm x 2,000 mm Machine travel range with 1 repositioning: 1,250 mm x 4,000 mm Machine travel range with 1 repositioning and 1 turning: Turning not possible Processing Max. sheet thickness with ball table: 6 mm Max. sheet thickness with brush table: 3 mm Max. table load: 100 kg Precision Punching accuracy (in standard mode): ±0.1 mm Positioning accuracy (repeatability): ±0.07 mm Control and Axes Gedpfx Aasyn Nybsfsip Pneumatic clamping devices: 2 Number of simultaneously controlled axes: 3 (X, Y, C) Performance Strokes per minute, feed 25.4 mm: X320 / Y250 Nibbling work cycle, feed 1 mm: X920 / Y920 Tooling Minimum programmable increment: 0.01 mm Number of tools: 31 Max. tool diameter: 88.9 mm Amadex stations: 2 x 11 1/4" + 1 x 2" MACHINE DETAILS Connected load: 30 kVA Operating hours: 53,497 h Cutting hours: 37,808 h Dimensions & Weight Dimensions (L x W x H): 4,890 x 4,370 x 2,137 mm Machine weight: 11,500 kg Note: No tools included, special transport required.

Condition: used, Year of construction: 2022, controller manufacturer: Sonstige, controller model: Amada, _____ Description: Year of manuf. : 2022 Material: Round material:Ø 20 -101.6 mm Rectangular material:20 - 80 mm Cut length:10 - 6,000 mm Saw blade: Design:Disposable carbide saw blades Dimensions:Ø 360 x 2.0 mm Saw: Cutting speed:automatic control Revolutions:55- 180 Feed rate:0 -30 mm/sec Drive power:11 kW x 4P Horizontal clamping pressure:15.2 kN Vertical clamping pressure:3.9 kN Feed system: Drive system:AC servo + ball screw Feed length:715 mm Feed speed:30 m/min Bar loader: Max. diameter:100 mm Standard length:6,500 mm Magazine extension:By 2,000 mm Sorting section:With 2 switches Equipment: Material feed:Bar feeder Chip disposal:Chip conveyor Gedpfx Ajyul Hdjafsip Emulsion mist separator:Air Champion

Condition: excellent (used), Year of construction: 2005, Technical specifications: Working length: 3100 mm Column width: 2650 mm Press force: 100 tons CNC control: AMADA AMNC PC 3D-graphic 15-inch TFT color screen Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Gijdpfx Aev I Sp Ieafop Dual speed of the X, R, and Z axes Automatic crowning Motorized adjustable backgauge Thrust: 550 mm Stroke: 350 mm Working height: 960 mm Laser monitoring: FIESSLER Motor power: 9 kW Dimensions (length x width x height): approx. 4300 x 2300 x 2950 mm Weight: approx. 8 tons Accessories: 1 set of segmented AMADA tools The seller is not liable for typing or data transmission errors. The machine's appearance, technology, and wear are commensurate with its age; used machines are sold without any warranty.

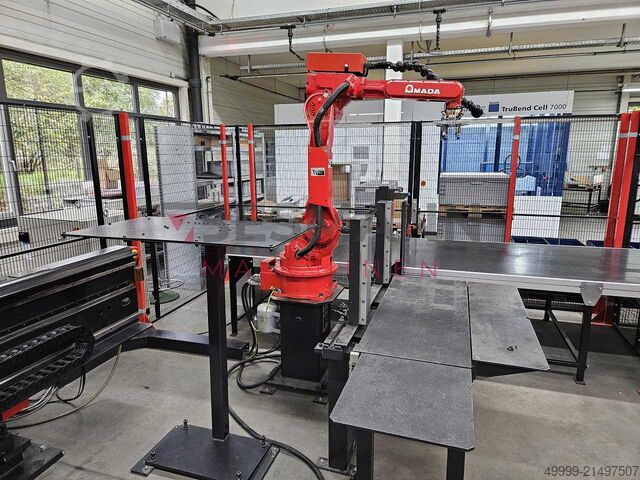

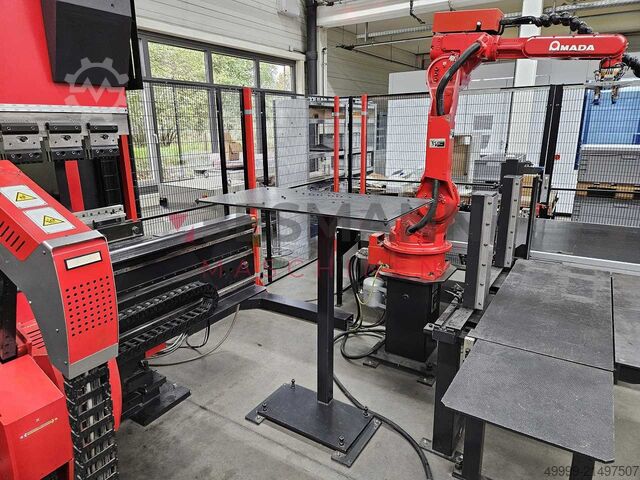

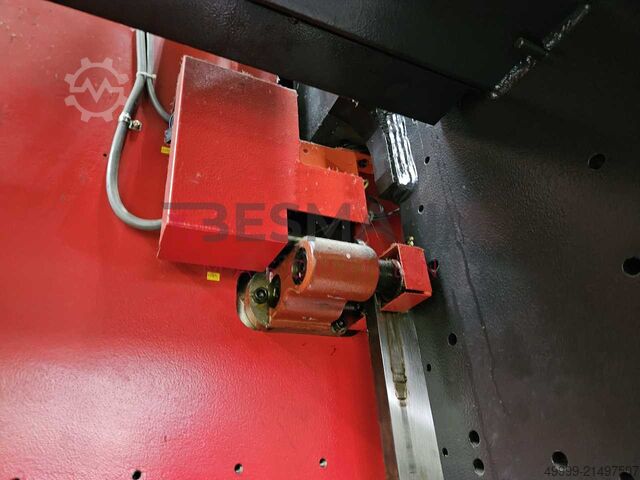

Condition: good (used), functionality: fully functional, Year of construction: 2007, operating hours: 13,800 h, AMADA ASTRO II 100 NT bending cell Automatic bending/folding cell - press brake with bending robot Manufacturer: AMADA Type: ASTRO 100 NT Year of construction: 2007 Condition: used Control: AMNC II PC Switch-on hours: 38536h Automatic operation: 13739h Gedpfx Ajyubzdjafeip Pressing force: 100 tons bending length: 3000 mm Tool clamping: AMADA, standard Clearance between uprights: 2700 mm Projection: 415 mm Stroke: 200 mm Installation height: 500 mm Adjustment range backgauge: 600 mm Width of the work table: 60 mm

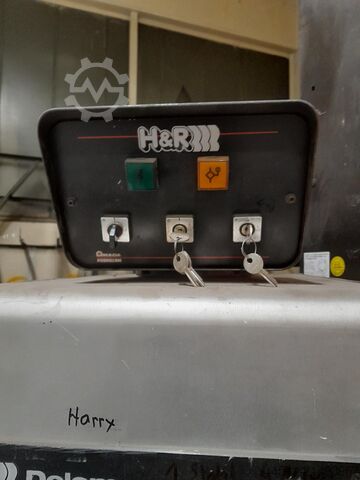

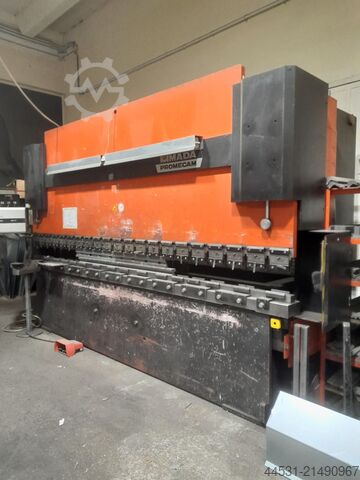

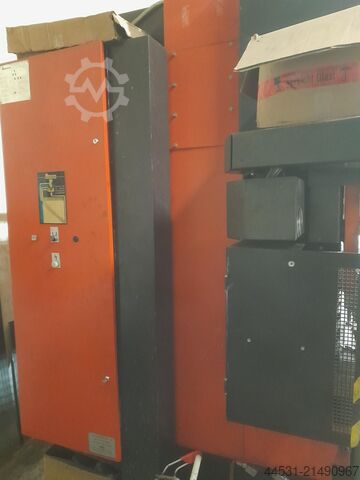

Condition: ready for operation (used), Year of construction: 1991, Immediately available ex works: CNC press brake Amada Promecan Gjdpfxeyt Nk Ds Aafoip Model HFBO 125/40 Year of manufacture: 1991 Control system renewed in 2024 Delem DA 58 control Pressing force: 125 t Working length: 4200 mm Frame gap: 2700 mm Throat depth: 410 mm Stroke: 180 mm Drive: 11 kW Working speed: 8 mm/s Weight: 10 t Many tools included Price: EUR 10,500— plus VAT, ex works

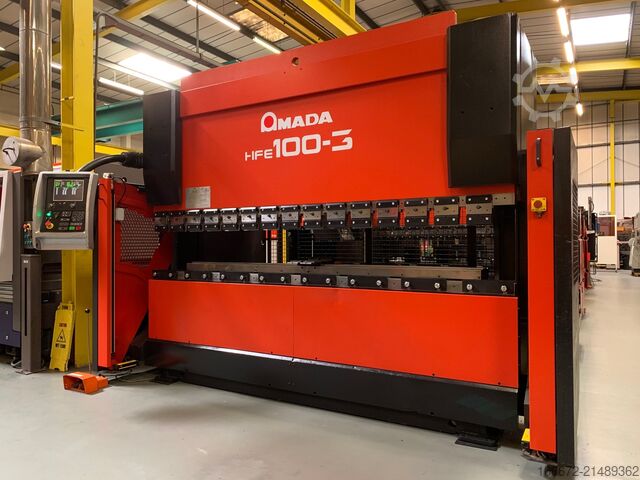

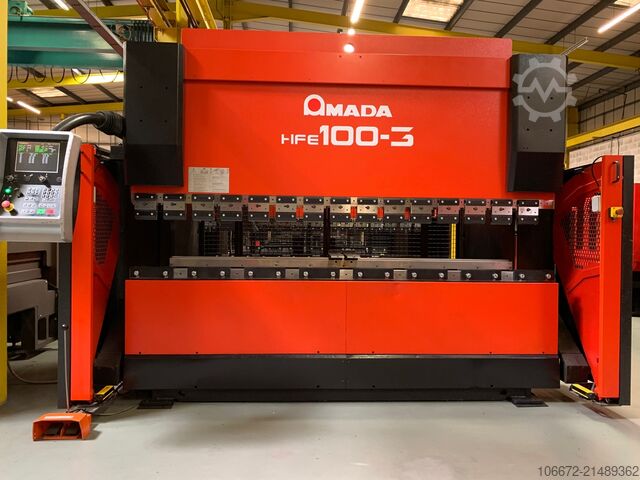

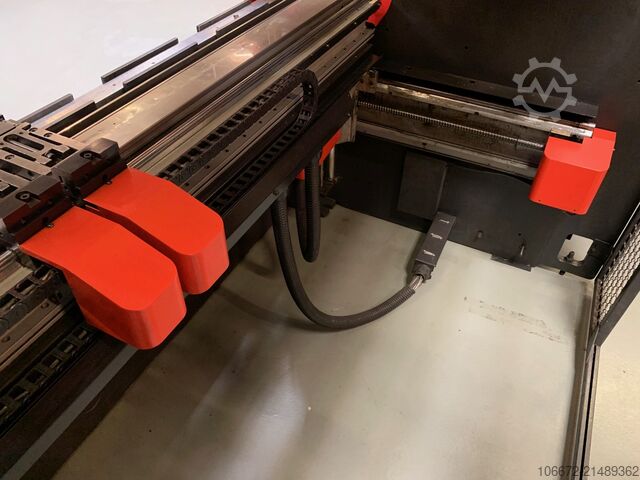

Condition: refurbished (used), Year of construction: 2003, AMADA MODEL HFE 103-3 100 tons capacity x 3000 bending length hydraulic downstroking press brake complete with OP 2000 7 AXIS cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Gjdpfx Aajyt H Awjfjip Model Amada HFE 100-3 downstroke CNC Press brake Year 2003 Tonnage 1000 KN Type OP 2000 CNC Controlled Axis Y1, Y2, X, R1 R2 Z1 Z2 Max. Bend Length 3000 mm Open height 470 mm Stroke Length 200 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity 110 LITRES Motor Power 11 kw Weight 6800 KG kg CNC Control Backgauge Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: like new (used), Year of construction: 2016, Manufacturer: AMADA Model: HFE M2 2204 8 AXESL Year of production: 2016 Serial number: HFE-M2-220.4 LK101025 Number of axes: 7 (8 AXESL configuration) Press force: 2,200 kN Length: 4,000 mm Safety system: AKAS III P (laser) Bending angle measurement: digital angle sensor Stroke: 'Long Stroke' (extended) Gjdpfxox Trw Is Aafoip Connected load: 20 kW Operating hours: 10,238 h Weight: 17,970 kg Dimensions (W x H x D): approx. 550 x 300 x 200 cm Additional equipment: Very large number of tools

Condition: excellent (used), Year of construction: 1997, Manufacturer: AMADA Europe S.A. Model: HFB 80 Year of manufacture: 1997 Serial number: HFB0 80 25 R970112 Pressing force: 800 kN Gjdpfx Aaox H Sl Ssfeip Maximum stroke: 200 mm Power supply: 415 V / 50 Hz Number of phases: 3 Rated current: 171 A Machine weight: 5750 kg

Condition: ready for operation (used), controller manufacturer: AMNC-PC Touch, throat depth: 420 mm, installation height: 470 mm, operating speed: 10 mm/s, total length: 5,840 mm, total width: 3,000 mm, total height: 2,900 mm, power: 9 kW (12.24 HP), travel distance Z-axis: 200 mm, empty load weight: 11,300 kg, passage width: 3,760 mm, table width: 180 mm, 7 assen: Y1 / Y2 / X / X2 / Z1 / Z2 / R Amadabombeertafel met Digipro-optie: CNC-buighoekmeetsysteem Sick laserbeveiliging aan de voorkant Plooimessen in een gereedschapskast: • 00300 – 60° - R6.0 2x 835 • 04706 – 88° - R0.6 4x 835 • 05206 – 88° - R0.6 10, 15, 20, 40, 50, 100R, 100L, 200, 300 • Z24511 – 45° - 0,37° 4x 835 • Z24512 – 45° - 0,37° 415 • Z24513 – 45° - 0,37° 10, 15, 20, 40, 50, 100L, 200, 300 • 45308 – 88° - R0.8 10, 15, 20, 40, 50, 100R, 100L, 125, 138, 200, 270, 300, 310, 370, 835 Buigmatrijzen in een gereedschapskast: • 07900 – 88° - V20 4x 835 Gedpfxsytyqbj Aafsip • 07980 – 88° - V20 10, 15, 20, 40, 50, 100, 200, 400 • 07700 – 88° - V16 4x 835 • 07780 – 88° - V16 10, 15, 20, 40, 50, 200, 400 • T12451 5x 835 • 129001 5x 835 Capacity: 130 ton x 4100 mm Backgauge: CNC Locking speed: 200 mm/sec

Condition: used, Year of construction: 2005, AMADA - HFT 80-25 - 2005 - 80 t capacity - 2500 mm table - stroke 200 mm Godpfxeytrwte Aafjip - weight 5750 kg - under power - used machine, good condition
