VFFS Line
AMTEC VFFS-SYS VC 50-L ECO

Name: AMTEC VFFS-SYS VC 50-L ECO
Brand: AMTEC
Availability: InStock

Year of construction

2025

Condition

New

Location

Hamburg

Machine data

Machine type:: VFFS Line

Manufacturer:: AMTEC

Model:: VFFS-SYS VC 50-L ECO

Year of construction:: 2025

Condition:: new

Price & Location

Location:: Hamburg

Call

Details about the offer

Listing ID:: A187-21026

Reference number:: GE-VW1361-CPL-ECO

Update:: 14.03.2025

Description

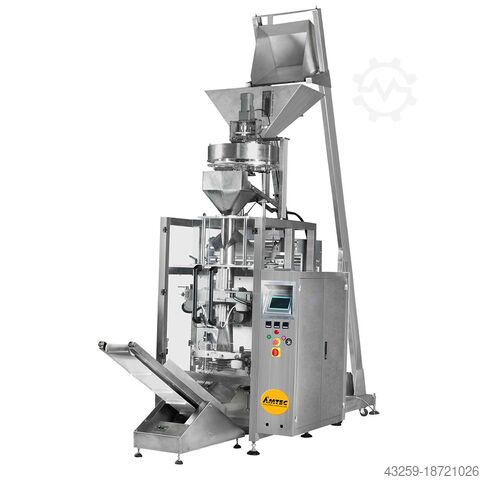

Complete compact vertical packaging system including volumetric dosing unit, 1 cup, single bucket conveyor and outfeed conveyor. Suitable for granulate-type products such as sugar, rice, beans, nuts, etc. The vertical packaging machine (VFFS) is equipped with PLC (control via color touchscreen user interface, different languages available e.g. English, German, etc.), date printer, automatic program set-up, mark sensor registration control, quick change former assembly, pneumatic sealing unit, servo motor film pulling, double pulling possible, air exhausting device, supporting device of finished bags, hole punching device, suitable for OPP and PE film (possibly additional costs for the PE unit). - Specifications of VFFS packaging machine: filling range: up to 3000ml; film width: max. 520mm; bag size (mm): min.-max. L(80-400)xW(80-250); max. speed of the machine in neutral: 50 cycles/min; stainless steel 304; 220V, 4kW; 6bar, 0.4m³/min; packaging machine dimensions LxWxH: approx. 1150x1790x1650mm; machine weight: 600kg. Capacity of dosing hopper is up to 50l. Single bucket conveyor has a material capacity up to 50l. The container is filled manually in the bottom position. In the top position it will be emptied automatically (complete cycle: 1 minute). - Specifications: height: 3-5m; 220V, 1kW; stainless steel; dimensions: L1400xW700xH3500mm. Generally it has to be customized to meet individual customer/product requirements. Therefore deviations of shown specifications are possible. The outfeed conveyor has a stainless steel 304 frame. - Specifications: conveying speed 30m/min; 220V, 0.55kW; conveyor dimensions LxWxH: approx. 1850x550x1230mm; weight: 80kg. Total dimensions of complete system approximately L1150xW5040xH3500mm, depending on final layout. Generally the system has to be customized to meet individual customer/product requirements. Therefore deviations of shown specifications of modules and machines are possible. Main components: Color touchscreen SIEMENS, PLC controller SIEMENS, servo motor SIEMENS, cylinder AIRTAC, solenoid valve AIRTAC, relay OMRON, film pulling motor SIEMENS.

That machine/system is available in different versions for different packaging sizes and with different packaging speeds.

Kdodpfx Akev Nmkcswot
Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
