Thermolift 100

ARBURG

Condition: like new (used), Year of construction: 2021, operating hours: 121 h, functionality: fully functional, clamping force: 1,500 kN, screw diameter: 40 mm, clearance between the columns: 520 mm, injection pressure: 2,500 bar, plate length: 695 mm, plate width: 695 mm, power: 49.5 kW (67.30 HP), type of input current: three-phase, Equipment: documentation/manual, Arburg Allrounder 520 E 1500-400 Golden Electric Machine as new. Very little used, only for sample production. Dksdpfx Afexbpbks Nsi Machine is fully equipped: 40 mm screw High wear resistant cylinder 2nd core pull control for sequential movements – holding pressure via check valve 4 free water manifold circuits with optical flow indicator Conveyor belt – electric 6 electric heating control circuits for mold temperature control Full documentation available. Complete specification list available by email upon request.

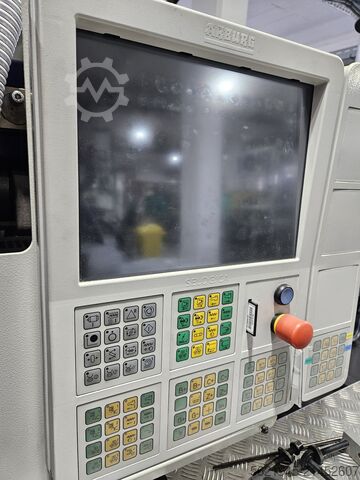

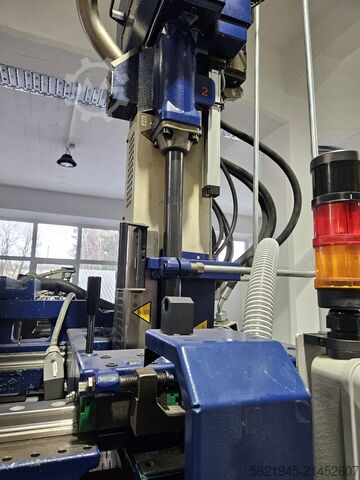

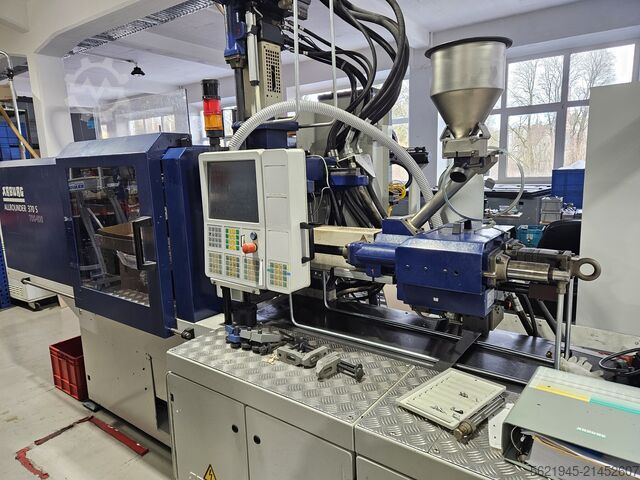

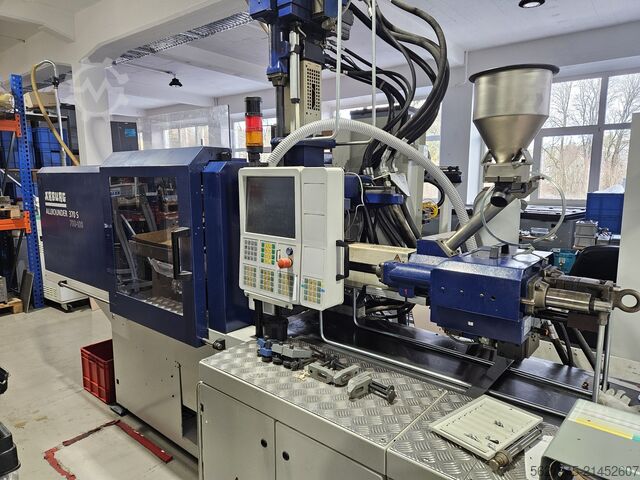

Condition: used, Year of construction: 2008, operating hours: 63,546 h, functionality: fully functional, machine/vehicle number: 210423, clamping force: 100 kN, screw diameter: 25 mm, clearance between the columns: 370 mm, heating capacity: 56 kW (76.14 HP), pump power: 69 W, Arburg 370 S 2k 100t. Dodpfx Asyrz H Usf Njki

Condition: ready for operation (used), Year of construction: 2006, operating hours: 61,935 h, clamping force: 500 kN, screw diameter: 30 mm, injection weight: 77 g, Hydraulic injection moulding machine manufactured in 2006. This Arburg 320C 500-170 GE features a clamping force of 500 kN and a screw diameter of 30 mm. It has a maximum ejector stroke of 125 mm and a platen distance of 550 mm. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 320C 500-170 GE machine we have for sale. Contact us for further details regarding this machine. • Min. mould installation height: 200 mm • Tie bar spacing (H × V): 320 × 320 mm • Platen distance: 550 mm Dsdpfx Afeylybqj Njki • Max. ejector stroke: 125 mm • Installed total power: 22.9 kW • Total connected load: 34 kW • Nominal voltage: 400 V • Frequency: 50 Hz • Rated current: 49 A • Total machine cycles: 11,986,266 • Total pump operating hours: 61,935 h

Condition: ready for operation (used), Year of construction: 2004, operating hours: 64,300 h, clamping force: 3,200 kN, screw diameter: 60 mm, injection weight: 723 g, total height: 2,400 mm, overall weight: 17,700 kg, This hydraulic injection moulding machine was manufactured in 2004. It features a screw diameter of 60mm and can handle a maximum injection weight of 723g. The machine supports a clamping force of 3200kn with a maximum opening stroke of 700mm. It is equipped with special features like 2xAS core pull and 6xDS hot runner control points. Ideal for robust performance in a production setting, the Arburg Allrounder Selecta 720 S 3200-2100 machine we have for sale. Contact us for more information. Additional equipment • The Wittmann robot is not included • Conveyor belt is included, protective housing only for the electrical components • No other peripherals are included. Machine Benefits Qualitative Machine Benefits • Condition: used, pump overhauled Technical Machine Benefits Dedsx D N Sbepfx Af Neki • Known defects: water computer and water batteries should be overhauled (no influence on function) • Machine without handling system and peripherals Extra Information Machine still under power Dimensions Machine Depth 7200 mm

Condition: ready for operation (used), Year of construction: 2014, operating hours: 22,626 h, screw diameter: 25 mm, This Arburg 470 H 1000-170 was manufactured in 2014. A hydraulic injection moulding machine featuring a closing force of 100t and a screw diameter of 25mm. Operating on 400V 3∼, 50Hz with a total connected load of 75kW. Ideal for precision moulding applications. Contact us for more information about this machine. • Units available: 2 similar units • Operating voltage: 400 V, 3-phase, 50 Hz • Control voltage: 230 V, 50 Hz; 24 V AC • Motor rated current: 80 A • Heating rated current: 58 A Djdpfxsx D Rcus Af Neki • Total rated current: 138 A • Total connected load: 75 kW • Calibration year: 2027 • 1x unit from 2011 availabe

Condition: ready for operation (used), Year of construction: 2021, clamping force: 1,600 kN, overall weight: 5,900 kg, This 3-axis Arburg Allrounder 520S 1600-400 was manufactured in 2021. It features a screw diameter range of 35-45 mm and a clamping force up to 1600 kN. The machine includes a removal robot and an enclosure with a FilterFanUnit, ensuring clean operations. Ideal for precision plastic processing, it offers a mold clamping height of 250 mm and platen spacing of 825 mm. Contact us for more information about this machine. Additional equipment • Cooling water connection: Max. temperature: 30 °C, Min. Δp: 1.5 bar | DN 25 Machine Benefits Technical Machine Benefits • Thermoplastic cylinder: 45 mm, high wear resistant • CrN coating (screw and non-return valve) • Standard screw coupling, square geometry • Open nozzle 45 mm • Larger holding pressure pump • Selogica direct control system • Technology level 2, servo-controlled with 2 control pumps • Ejector pressure P/Q controlled • Continuous oil cooling and filtration • Nozzle contact force controlled, programmable (1st injection unit) • Clamping plate set, central 125 mm • Machine raised by 100 mm (increased vibration elements) • 8 programmable digital inputs/outputs • 6 electric mould heating control circuits • 1 additional heating control circuit (nozzle or adapter) • 4 manually adjustable cooling circuits • Controlled machine cooling circuits • aXw Control ScrewPilot (1st injection unit) • Water-cooled control cabinet Dodex D E Dyepfx Af Njki • Reinforced screw coupling with multi-spline geometry • Injection speed with ramp function (F90302 = 1) • Automatic heater standby switching • Sound pressure level: 70 db(a) | ± 3 Extra Information Screw Diameter: 400 unit: 35 / 40 / 45 mm Injection Pressure (Max.): 400: 2500 / 2000 / 1580 bar Shot Weight (Max. g PS): 400: 141 / 184 / 232 g Heating Output 400: 9.7 kW | 5 zones Net Machine Weight: 400: 5900 kg

Condition: ready for operation (used), Year of construction: 2016, operating hours: 9,171 h, clamping force: 1,600 kN, screw diameter: 45 mm, controller manufacturer: ARBURG, This 3s Arburg 520S-1500-400 was manufactured in 2016. It features a clamping force of 1600 kN and a screw diameter of 45 mm, making it suitable for high-temperature thermoplastics. The SELOGICA direct control system with a 15-inch touchscreen enhances usability. Consider the opportunity to buy this Arburg 520S-1500-400 hydraulic injection moulding machine. Contact us for further details. • Programmable and controlled build-up of clamping force • Extended clamping program with 2 stages • Hydraulic, servo-controlled ejector on moving platen • Injection/plasticizing unit: Dkedpfx Afjyg I Iho Nsi • Screw diameter: 45 mm (without nozzle) • High wear-resistant version • Sinter-metal check ring • CrN coating on screw and check ring • Suitable for abrasive, corrosive, and high-temperature thermoplastics • Technology level 2 – servo-controlled, dual-circuit pump system: • Two regulated hydraulic pumps for precise, parallel movements • Programmable nozzle contact force and holding pressure • Continuous oil circulation with additional cooling and filtration • SELOGICA direct control system: • Touchscreen operation with process editor • 15-inch (38.1 cm) display • Multilingual interface (German, English, local language) • Heating capacity zones 1–6: 3.6 kW each (230 V / 16 A) • Cylinder heating temperature up to 450 °C • Connectivity/interfaces: • OPC UA interface (MES/host computer connection) • USB and CompactFlash interfaces for data storage • EUROMAP 67 robot interface • Prepared for ARBURG MULTILIFT robot system • Utilities: • Pneumatic supply with pressure regulator • Cooling water distribution with adjustable circuits and flow indicators • 400 V / 50 Hz, with neutral conductor • Hours: 9,171 Additional equipment • None included in the listing • Note: Machine is prepared for robot integration (EUROMAP 67 interface; prepared for ARBURG MULTILIFT), but no robot/automation is included.

Condition: ready for operation (used), Year of construction: 2013, operating hours: 54,526 h, screw diameter: 35 mm, This Arburg 520 H 1500-400 was manufactured in 2013. A hydraulic injection moulding machine with a closing force of 150t and a screw diameter of 35mm, it operates on 400V 3∼, 50Hz with a total connected load of 89kW. Consider the opportunity to buy this Arburg 520 H 1500-400 hydraulic injection moulding machine. Contact us for more information. • Operating voltage: 400 V 3~, 50 Hz • Control voltage: 230 V, 50 Hz; 24 V~ • Motor/heating rated current: 90/69 A • Total rated current: not specified • Total connected load: 89 kW Dedpfx Afsx D Rk Ej Njki

Year of construction: 2007, condition: ready for operation (used), This Arburg 420A 1000-400 was manufactured in 2007. It features electromechanical main movements by servo drives, a modular plasticizing unit with adaptive temperature control, and a five-point double toggle clamping system with servo-electric adjustment. The Selogica control system enhances operational efficiency. If you are looking to get high-quality injection molding capabilities, consider the Arburg 420A 1000-400 machine we have for sale. Contact us for more information about this machine. • Drive technology: • Electromechanical main movements by servo drives: dosing, injection, mold open/close, ejector • Hydraulic movement for nozzle displacement • Thermoplastic processing • Small hydraulic unit with accumulator, 5.5 kW, 10 cm³ pump (Pos 132/22) • Machine platens with centering ring D125 mm (Pos 356/11) • Injection unit (servo-controlled): • Horizontal 400 injection unit • Modular plasticizing unit with central coupling and adaptive temperature control • Plasticizing assembly D25 mm, high wear/corrosion resistance; open nozzle (220/25), flat nozzle tip (300/00), heater band (320/00) (Pos 060/25) • Heater band temperature up to 450 °C (Pos 427/02) • Standard drive coupling, double-flat (Pos 061/10) • Without hopper (Pos 600/06) • Servo-regulated, programmable nozzle contact force (Pos 408/03) • Clamping unit: • Five-point double toggle with servo-electric adjustment • Electric mold height adjustment • Prepared for mounting a linear robot on the fixed platen • Mold protection via ejector position monitoring (Pos 605/05) • Machine feet (Pos 605/03) • Quick coupling for ejector bar (Pos 605/06) • Electric ejector with position control (Pos 381/05) • Programmable hydraulic core for parallel movements (Pos 382/00) • Air blow unit 1 with pressure reducer (Pos 361/01) • Machine cooling circuits, regulated and programmable (Pos 525/02) • Cooling water manifold with 4 manually adjustable circuits (Pos 512/04) • Control, electrical cabinet, interfaces: • Selogica control • Software packages (Pos 555/01–555/07): Extended mechanical cycle controls; Extended movements; Production control; Optimization/Operator assistance; Quality assurance control; Documentation • Temperature-regulated electrical cabinet (Pos 605/07) • Selogica Direct, French language (Pos 131/05) • Flash card reader (Pos 455/05) • Operator authorization by card, Euromap 65 (Pos 455/06) • Acoustic alarm (Pos 457/00) • Additional socket combination with RCD (Pos 444/01) • 12 mold temperature measurement zones (Pos 469/12) • Additional heater band for nozzle (Pos 468/01) Dodpex D Hgvofx Af Noki • Interface for HB-Therm mold temperature controller (Pos 453/01) • USB serial interface for printer (Pos 454/03) • Robot interface Euromap 67 (Pos 425/05) • Electrical and mechanical preparation for external robot (Pos 425/02) • Water shut-off valve (Pos 501/01) • Interface for Thermolift dryer (Pos 464/01) • Interface for color dosing unit (Pos 493/00) Additional equipment • Electric conveyor belt, programmable (Pos 412/02) • Sorting flap for separating good/bad parts (Pos 375/00)

Condition: ready for operation (used), Year of construction: 2011, operating hours: 68,463 h, screw diameter: 35 mm, This Arburg 470 E 1000-700 was manufactured in 2011. A robust electrical injection moulding machine, it features a closing force of 100 tons and a screw diameter of 25mm. Operating on 400V 3∼, 50Hz with a total connected load of 78kW, it's designed for efficient performance. Consider the opportunity to buy this Arburg 470 E 1000-700 electrical injection moulding machine. Contact us for more information. Dksdpfx Afsx D Rndo Nji • Operating voltage: 400 V, 3-phase, 50 Hz • Control voltage: 230 V, 50 Hz; 24 V AC • Motor rated current: 61 A • Heating rated current: 58 A • Total rated current: 119 A • Total connected load: 78 kW • Calibration (year): 2027 • selection unit: yes • single platen: yes • beam spacing: 470 x 470
