Arburg monitor

ARBURG

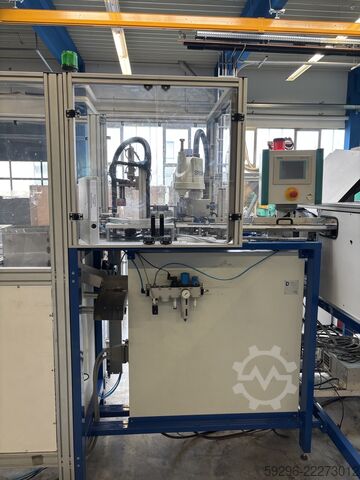

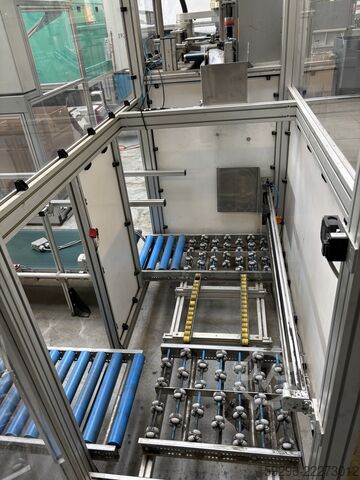

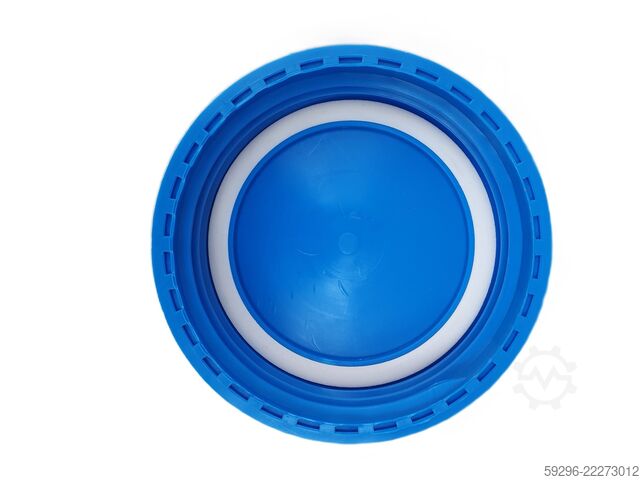

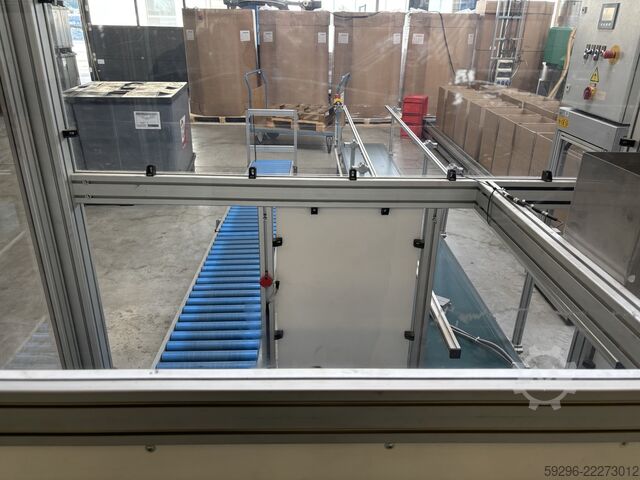

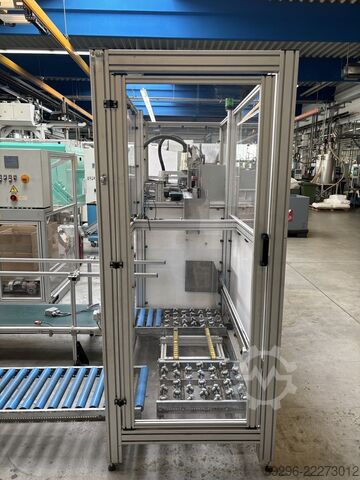

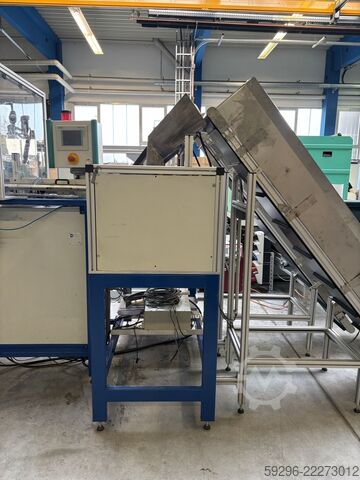

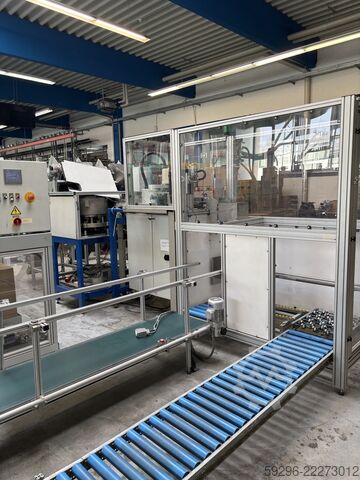

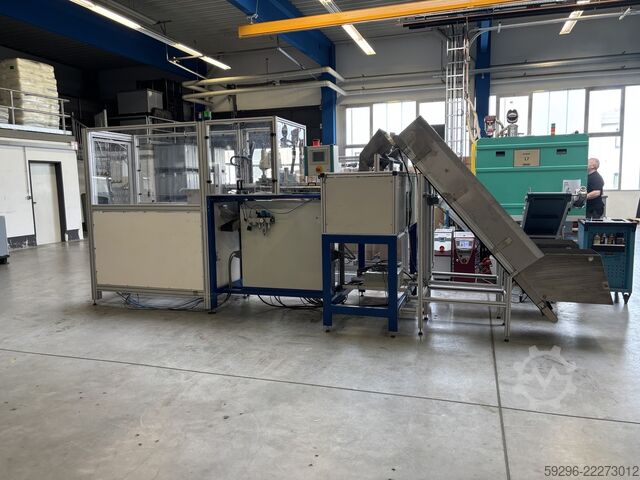

Condition: used, Dear Sir or Madam, We offer for sale: Assembly line for inserting a gasket into a jerrycan cap Cgjdpozi A Uyjfx Ai Hjw incl. 2 feeder belts (for jerrycan caps and gaskets) Assembly unit as well as carton feeding and finished product discharge conveyors

Condition: like new (used), Year of construction: 2018, operating hours: 7,500 h, We are selling our Multilift V 15KG with only 7,500 operating hours. The machine can be inspected/tested; original purchase price was €59,000! Technical Specifications: Z-axis (crosswise to the machine longitudinal axis) Stroke: 1,600 mm Max. speed: 3.0 m/s X-axis (parallel to the machine longitudinal axis) Stroke: 900 mm Max. speed: 2.0 m/s Y-axis (vertical/plunge axis) Stroke: 1,000 mm C-axis (for gripper rotation) - Swing range 0° / 90°, both end positions monitored and manually adjustable - Pneumatic drive, including valve control - Max. torque at 6 bar: 28 Nm - Weight: 2.6 kg First vacuum unit (Venturi principle) with air saving function, suction capacity 65 l/min, blow-off function, vacuum switch for part monitoring, vacuum programmable, integrated condition monitoring for early detection of leaks and wear, routed close to the gripper; Customer-side hose connection: push-in fitting for hose size OD 6 / ID 4 Second vacuum unit (Venturi principle) with air saving function, suction capacity 65 l/min, blow-off function, vacuum switch for part monitoring, vacuum programmable, integrated condition monitoring for early detection of leaks and wear, routed close to the gripper; Customer-side hose connection: push-in fitting for hose size OD 6 / ID 4 Third vacuum unit (Venturi principle) with air saving function, suction capacity 65 l/min, blow-off function, vacuum switch for part monitoring, vacuum programmable, integrated condition monitoring for early detection of leaks and wear, routed close to the gripper Fourth vacuum unit (Venturi principle) with air saving function, suction capacity 65 l/min, blow-off function, vacuum switch for part monitoring, vacuum programmable, integrated condition monitoring for early detection of leaks and wear, routed close to the gripper; Customer-side hose connection: push-in fitting for hose size OD 6 / ID 4 Tenth pneumatic valve 5/3 with locked center position for gripper functions, piped to the gripper flange with quick-release couplings DN 2.7 for hose size OD 6 / ID 4; customer-side hose connection 8 freely programmable inputs for querying 8 gripper-mounted sensors, pre-wired to the gripper flange with a 25-pin connector; up to 8 sensors can be monitored; the corresponding mating connector for the gripper-side connection is included Cgedpfx Aiozi A Uts Hew Second interface for querying 8 additional sensors, via 25-pin connector on the gripper flange, incl. mating connector for gripper-side connection Third interface for querying 8 additional sensors, via 25-pin connector on the gripper flange, incl. mating connector for gripper-side connection Fourth interface for querying 8 additional sensors, via 25-pin connector on the gripper flange, incl. mating connector for gripper-side connection Interface with 4 freely programmable inputs and outputs, non-isolated, on a 42-pin socket on the MULTILIFT, for peripheral devices Additional interface with 16 freely programmable inputs and outputs (24V DC), non-isolated, wired to a 72-pin socket on the MULTILIFT Push-in fitting for hose size OD 6 / ID 4

Condition: like new (used), Year of construction: 2022, operating hours: 12,000 h, We are offering this machine for sale due to a cancelled order. Screw: 40mm / HC version! Core pulls: 2x Blow-out: 2x Selective extraction unit Tool heating: 12x Includes Multilift Select Cgedpfx Aezi A Ugsi Hsw 4x vacuum 4x pressure

Condition: excellent (used), Year of construction: 2015, ARBURG A 520 H 1500-170 e² HIDRIVE (25.008 h) (S&P 3794) Manufacture year: 2015 Operating hours: 25,008 Stunden Screw: 25 mm Injection pressure: 2500 bar Stroke volume: 59 cm³ Clamping Force: 150 t Tie bar distance: 520 x 520 mm Mould installation height min.: 250 mm Plate distance max.: 950 mm Dimensions: 4800 x 1700 x 2400 mm Eeight: 6000 kg Connected load: 29 kW Robot interface EM67, Accumulator, Airvale etc... Price: on request contact: Mr. Ralf Schulz Cgjdpfx Aezi A S Ssi Hjw

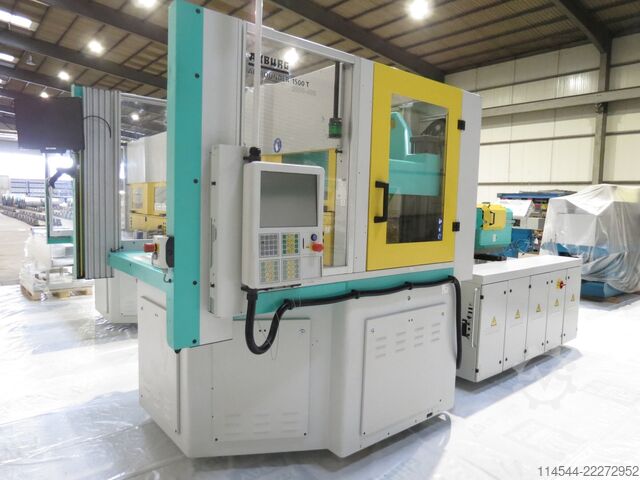

Condition: excellent (used), Year of construction: 2015, ARBURG A 1500 T 2000-400 Drehtisch (29.844 h) (S&P 3792) Manufacture year: 2015 Operating hours: 29,844 Stunden Screw: 40 mm Injection pressure: 2000 bar Stroke volume: 201 cm³ Clamping Force: 200 t Tie bar distance: 1500 mm Mould installation height min.: 400 mm Plate distance max.: 700 mm Dimensions: 4700 x 2100 x 2600 mm Cgsdpfjzi A S Ejx Ai Hew Eeight: 11500 kg Connected load: 22 kW 1500mm Table-diameter, 2-station (180°) turntable, 2 x Corepuller, Airvalve, Interface Colorizing, Hotrunner, price when new approx. 250.000,- € etc... Price: on request contact: Mr. Ralf Schulz

Condition: excellent (used), Year of construction: 2016, ARBURG A 470 H 1000-170 HIDRIVE (32.000 h) (S&P 3796) Manufacture year: 2016 Operating hours: 32,000 Stunden Screw: 30 mm Codpezi A Srsfx Ai Hogw Injection pressure: 2000 bar Stroke volume: 85 cm³ Clamping Force: 100 t Tie bar distance: 470 x 470 mm Mould installation height min.: 250 mm Plate distance max.: 850 mm Dimensions: 4100 x 1700 x 2400 mm Eeight: 5030 kg Connected load: 21 kW Accu, Robot Interface EM67, EM73, Airvalve Price: on request contact: Mr. Ralf Schulz

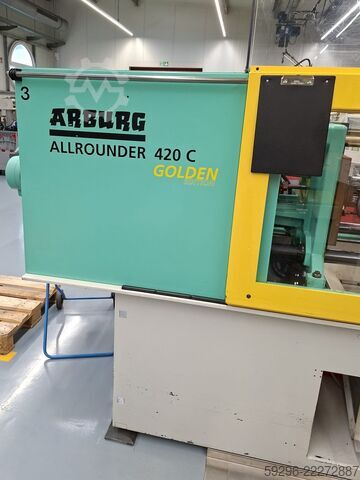

Condition: good (used), Year of construction: 2010, 420 C 1000 - 290 Thermoplastic cylinder, complete, 40 mm, highly wear-resistant Selogica direct control system Cgodpszi A N Dsfx Ai Hsw Hydraulic system with 2 control pumps Anniversary model GOLDEN EDITION Thermoplastic processing Open nozzle, 40 mm Nozzle tip for open nozzle Heating band for open nozzle Clamping plate set 420, central, Ø 125 mm Connection for blow-out device 1 Selection unit, lateral installation, including connection Core pull, 1 for serial movement, holding pressure via check valve Interface for robot system (according to EUROMAP 67), 50-pin Socket distribution: 1 CEE, 1 Schuko, additional Interface for printer, serial USB CompactFlash interface for data set storage User authorization with chip card according to EUROMAP 65 Fault indicator, acoustic 3 electrical heating circuits for tool heating Interface for coloring device 4 freely adjustable cooling circuits Machine-specific cooling circuits, freely adjustable Equipment package: Extended monitoring Equipment package: Extended movement sequences Equipment package: Production control Equipment package: Optimization / operating aids Equipment package: Quality assurance Equipment package: Documentation CD with operating manual and parts list Without granulate hopper 50 L

Condition: good (used), Year of construction: 2014, 420 C 1000 - 290 Thermoplastic cylinder, complete, 35 mm, highly wear-resistant Standard screw coupling, coupling geometry, dual-edge Control system: Selogica direct Hydraulic system with 2 control pumps Anniversary model: GOLDEN EDITION For processing thermoplastics Open nozzle, 35 mm Nozzle tip for open nozzle Heating band for open nozzle Clamping plate set 420, central, Ø 125 mm Connection for blowing device 1 Selector unit, lateral installation, including connection Core pull 1 for serial movement, holding pressure via check valve Interface for robot system (according to EUROMAP 67), 50-pin Socket outlet: 1 CEE, 1 Schuko, in addition Interface for printer, serial USB CompactFlash interface for data set storage Operator authorization with chip card according to EUROMAP 65 Fault indicator, acoustic Cjdpfxezi A Nds Ai Hsgw 3 electrical heating circuits for tool heating Interface for coloring device 4 freely adjustable cooling circuits Machine-specific cooling circuits, freely adjustable Equipment package: Enhanced monitoring Equipment package: Enhanced traversing movements Equipment package: Production control Equipment package: Optimization / operator assistance Equipment package: Quality assurance Equipment package: Documentation CD with operating manual and spare parts list Elastic machine mounting on vibration dampers Connection for ejector plate securing Ejector quick-release coupling Control cabinet, water-cooled Socket outlet: 1 CEE, 1 Schuko Hydraulic ejector Protective device, open at the top

Condition: used, Year of construction: 2017, Arburg 470S 1100 290 injection moulding machine, year 2017 2-component machine The machine has been idle for quite some time. It is from 2017 and has only around 21,600 operating hours. Codpfjxuq Tzex Ai Hogw The machine has a clamping force of 1100 kN; the lower unit is a 290 with a 35 mm screw, and the upper unit is a 100 with a 30 mm screw. Only ABS and TPE have been processed so far. The machine is equipped with an integrated hot runner system and 3 core pulls, along with additional options. Included is a Kuka handling unit, which is operated via the Selogica control of the machine, as well as the complete safety enclosure. The two material loaders and the large conveyor belt are not included in the sale.

Condition: used, Year of construction: 2002, Injection moulding machine Arburg 320 C 600-250, year of manufacture 2002 Cgjdpfexuq U Esx Ai Hjw
