304 ss tank - Closed - 10,500 L

ARSILAC

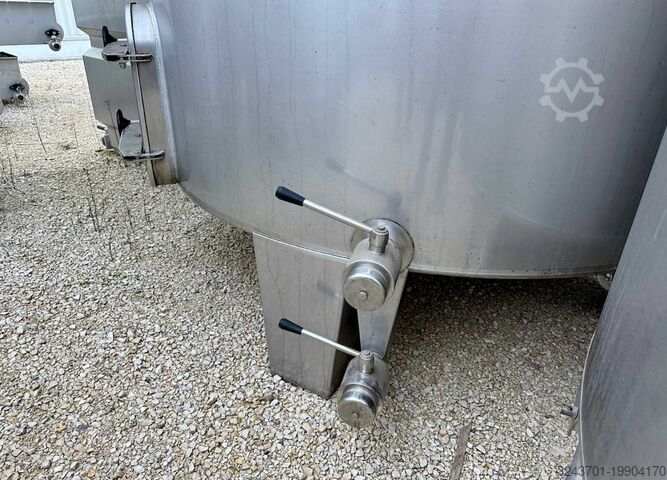

Condition: used, functionality: fully functional, total height: 5,200 mm, pressure: 1 bar, tank capacity: 25,800 l, inner diameter: 2,900 mm, TECHNICAL SPECIFICATIONS - Flat-bottom tank on legs - Material: stainless steel - Capacity: 25,800 litres RING - 1 ladder support bar - 1 lifting tube - 1 support and level tap - 1 oval autoclave door - 1 partial drain valve on square flange BOTTOM - Flat - 1 total drain valve on square flange - Feet DIMENSIONS - Diameter: 2,900 mm - Height: 5,200 mm Iodpfx Aexz Da Iehueht

Condition: used, functionality: fully functional, total height: 4,400 mm, total width: 3,200 mm, overall weight: 2,500 kg, operating pressure: 1 bar, tank capacity: 24,700 l, inner diameter: 3,200 mm, TECHNICAL SPECIFICATIONS - Conical bottom tank on legs - Material: stainless steel - Capacity: 24,700 litres ROOF - 1 off-centre chimney with hatch BOTTOM - Conical - On legs DIMENSIONS - Diameter: 3,200 mm - Height: 4,400 mm - Weight: 2,500 kg Ihodpfx Ahsxz A Tysuet

Condition: used, functionality: fully functional, total height: 5,100 mm, total width: 2,800 mm, pressure: 1 bar, tank capacity: 19,800 l, inner diameter: 2,800 mm, TECHNICAL SPECIFICATIONS - Vertical cylindrical tank - Capacity: 9,400 l + 10,400 l = 19,800 litres - Material: stainless steel ROOF - 1 off-centre chimney at the front with hatch RING - 1 complete level tube for each of the two compartments - 1 oval autoclave door for each of the two compartments - 1 tasting tap on each of the two compartments - 1 rectangular door on the upper compartment - 2 partial drain valves on each of the two compartments - 1 cooling circuit on each of the two compartments BOTTOM - Conical - 4 feet - 1 total drain valve DIMENSIONS - Diameter: 2800 mm Ihedpfsxz A Htsx Ahust - Overall height: 5100 mm

Condition: used, functionality: fully functional, total height: 5,000 mm, overpressure (max.): 1 bar, tank capacity: 20,000 l, warranty duration: 6 months, inner diameter: 3,000 mm, TECHNICAL SPECIFICATIONS - Cylindrical with self-draining skirt - Closed - Capacity: 200 HL - Material: STAINLESS STEEL - Bottom: sloped - Tank numbers: 8 and 9 Iodpfxjxvb Huo Ahujht ROOF - Central hatch Ø 500 mm RING - 1 tasting tap - 1 rectangular door 700×500 mm at the bottom of the ring - 1 50 Mâcon ball partial drain valve with cap - 1 complete level gauge - 1 lift tube BOTTOM - 1 total drain valve with 50 Mâcon ball and cap DIMENSIONS - Diameter: 3000 mm - Total height: 5000 mm APPENDICES - Tank for product density 1 - Conditions of use: atmospheric pressure - 6-month warranty - Complies with CE standards

Condition: used, tank capacity: 39,000 l, GENERAL INFORMATION Equipment: butterfly valve, crane lugs Design: vertical Remarks: All 3 chambers with separate manway & outlet (butterfly valve) External diameter: 3,000 mm Total height: 7,000 mm Iedpfjxqdb Rsx Ahujht Base design: height-adjustable feet Location: outdoor storage Nameplate: Volume: 39,000 litres Product-contact material: V4A 1.4401/04 (AISI316) Condition: used Cylindrical height: 5,250 mm TANK Bottom: conical bottom Number of feet: 6 units EQUIPMENT Manway/Hatch: in cylinder Outlet: present Note: light residues

Condition: used, functionality: fully functional, total height: 4,700 mm, tank capacity: 10,000 l, inner diameter: 2,500 mm, TECHNICAL SPECIFICATIONS - Cylindrical with legs - Floating head - Capacity: 100 HL - Material: stainless steel - Bottom: conical with legs - Top: floating head - Tank numbers: 27 and 28 ROOF - 1 stainless steel floating head RING - 1 ladder support bar - 1 gallows - 1 tasting tap - 1 rectangular door 430×540 mm at the bottom of the ring - 1 MÂCON 50 ball valve for partial drainage Iodpfxow Uqz Hj Ahusht - 1 complete level with tap and ruler (polycarbonate tube) BOTTOM - 1 MÂCON 50 ball valve for total drainage - 4 stainless steel legs 700 mm DIMENSIONS - Diameter: 2500 mm - Collar height: 3060 mm - Total height: 4700 mm APPENDICES - Tank for product density 1 - Conditions of use: atmospheric pressure - 6-month warranty - Complies with CE standards

Condition: new, functionality: fully functional, total height: 2,300 mm, overall weight: 145 kg, tank capacity: 1,789 l, inner diameter: 1,200 mm, TECHNICAL SPECIFICATIONS - Brand: ARSILAC - Model: STOBP1700 - Material: 316L stainless steel - Total capacity: 1789 litres - Base: curved on legs - Roof: centred conical - Interior finish: bright annealed - Exterior finish: brushed ROOF - Off-centre upper hatch with lever, diameter 200 mm - 1 DN40 MÂCON connection on hatch chimney with cap - Empty lifting rings RING - 1 ladder support - 1 round door, diameter 400 mm, at the bottom of the ring, opening outwards - 1 partial drain with square flange 100x100, stainless steel ball valve 40 MÂCON and stainless steel plug and decanter elbow - 1 tasting tap on DIN 15 connection - 1 needle thermometer - 1 complete stainless steel level gauge with tap and stainless steel ruler (polycarbonate tube) - 1 honeycomb belt with 1.8 m² exchange surface - Circuit operating pressure 3 bar, test pressure 10 bar - 1 inlet and 1 outlet on the honeycomb circuit, 3/4" male GAS connection - 1 connection with protective sleeve for control probe - 1 identification plate Iodpew Tly Ujfx Ahueht BOTTOM - 1 total drain with 100x100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 3 stainless steel feet, height 400 mm, adjustment screws and base plate DIMENSIONS - Diameter: 1200 mm - Ferrule height: 1500 mm - Total height: 2300 mm - Weight: 145 kg - Roof thickness: 12/10 mm - Ferrule thickness: 15/10 mm - Curved base thickness: 15/10 mm

Condition: new, functionality: fully functional, total height: 3,050 mm, overall weight: 168 kg, tank capacity: 2,623 l, inner diameter: 1,200 mm, TECHNICAL SPECIFICATIONS - Brand: ARSILAC - Model: STOBP2500 - Material: 316L stainless steel - Total capacity: 2623 litres - Base: curved on legs - Roof: centred conical - Interior finish: bright annealed - Exterior finish: brushed ROOF - Off-centre upper hatch with lever, diameter 200 mm - 1 DN40 MÂCON connection on hatch chimney with cap - Vacuum lifting rings RING - 1 ladder support - 1 round door, diameter 400 mm, at the bottom of the ring, opening outwards - 1 partial drain with square flange 100x100, stainless steel ball valve 40 MÂCON and stainless steel plug and decanter elbow - 1 tasting tap on DIN 15 connection - 1 needle thermometer - 1 complete stainless steel level gauge with tap and stainless steel ruler (polycarbonate tube) - 1 honeycomb belt with 1.8 m² exchange surface on top of the ring - 1 honeycomb belt with 1.2 m² exchange surface around the door - circuit operating pressure 3 bar, test pressure 10 bar - 1 inlet and 1 outlet on the honeycomb circuit, 3/4" male GAS connection Ihjdpew Tlw Tefx Ahust - 1 connection with thermowell for control probe - 1 identification plate BOTTOM - 1 total drain with 100x100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 3 stainless steel feet, height 400 mm, adjustment screws and plate DIMENSIONS - Diameter: 1200 mm - Shell height: 2250 mm - Total height: 3050 mm - Weight: 168 kg - Roof thickness: 12/10 mm - Collar thickness: 15/10 mm - Curved base thickness: 15/10 mm

Condition: new, functionality: fully functional, total height: 3,500 mm, overall weight: 400 kg, tank capacity: 5,205 l, inner diameter: 1,600 mm, TECHNICAL SPECIFICATIONS - Brand: ARSILAC - Model: STOIPSER5300 - Material: 304 stainless steel - Total capacity: 5,205 litres - Base: flat sloped, 4% slope - Roof: centred conical - Interior finish: bright annealed - Exterior finish: brushed ROOF - 1 hatch, diameter 400 mm, with lever - 1 connection with PVC ball vent Ihsdpfxew Tlu Eo Ahujt RING - Lifting rings - 1 ladder support - 1 rectangular door, 420×530 mm, at the bottom of the ring, opening outwards - 1 partial drain with 100×100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 1 tasting tap on DIN 15 connection - 1 needle thermometer - 1 complete stainless steel level gauge with tap and stainless steel ruler (polycarbonate tube) - 4 coil turns with 2.15 m² exchange surface on the shell - 2 coil turns with 0.75 m² exchange surface around the door - Maximum pressure on coil circuit: 1.5 bar - 1 inlet and 1 outlet on the coil circuit, 1‘ 1/4’ male GAS connection - 1 connection with thermowell for control probe - 1 identification plate BOTTOM - 1 total drain with 100×100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 3 stainless steel feet, height 500 mm, adjustment screws and base plate DIMENSIONS - Diameter: 1600 mm - Shell height: 2500 mm - Total height: 3500 mm - Weight: 400 kg - Roof thickness: 15/10ᵉ mm - Shell thickness: 15/10ᵉ mm - Bottom thickness: 20/10ᵉ mm

Condition: new, functionality: fully functional, TECHNICAL SPECIFICATIONS - Brand: ARSILAC - Model: STAIPSER5200 - Material: 316L stainless steel - Total capacity: 4,893 litres - Bottom: flat sloped, 4% slope - Roof: floating cap - Interior finish: bright annealed - Exterior finish: brushed ROOF - 1 316L stainless steel floating cap and complete pneumatic system (stainless steel cover, pump, air chamber, valve) RING - Lifting rings - 1 ladder support - 1 rectangular door 420×530 mm positioned 300 mm from the bottom of the ring and opening outwards - 1 partial drain with 100×100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 1 tasting tap on DIN15 connection - 1 needle thermometer - 1 complete stainless steel level gauge with tap and stainless steel ruler (polycarbonate tube) - 2 coil turns at the top of the shell - 3 coil turns on the shell above the door - 2 coil turns around the door - Total exchange surface area 4.76 m² - Maximum pressure on coil circuit: 1.5 bar - 1 inlet and 1 outlet on each coil circuit, 1‘ 1/4’ male GAS connection - 1 connection with thermowell for control probe - 1 lifting winch - 1 identification plate BOTTOM - 1 total drain with 100 × 100 square flange, 40 MÂCON stainless steel ball valve and stainless steel plug - 1 450 × 100 × 200 mm drain pipe - 1 50 MÂCON connector with plug on drain pipe Ihodpfx Ahow Tlrdsuot - 4 stainless steel feet, height 500 mm, adjustment screws and base plate DIMENSIONS - Diameter: 1800 mm - Height of ring: 2000 mm - Total height: 3220 mm - Weight: 425 kg - Ring thickness: 15/10ᵉ mm - Base thickness: 20/10ᵉ mm
