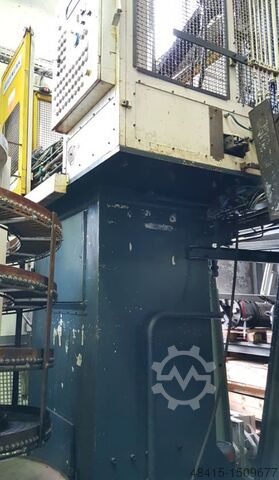

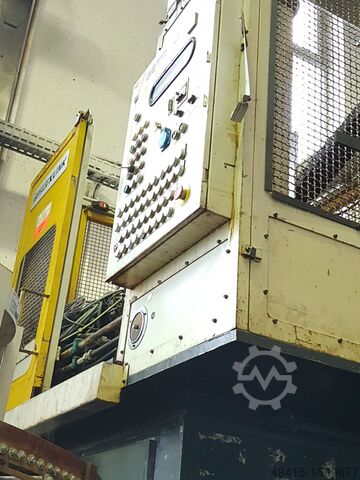

Broaching Machine - vertical

Arthur Klink RIDS 10/1200

Year of construction: 2000, Condition: used, Functionality: fully functional, Internal broaching machine Gjlhotpmnrjcdw Aeub Make: Arthur Klink Type: RISH 10x1000x400 Year of construction: 2000

Year of construction: 1985, Condition: good (used), machine/vehicle number: 04.2187, Hydraulic indoor broaching machine in technically good condition Gjlhsixntwecdw Ajub Manufacturer: Arthur Klink Year of manufacture: 1985 reconditioned Weight: 2t Model: RIW 10 x 1200 x 400 Machine No: 04.2187 Tractive force: 10.000kg at 3m/min clearing speed: hydraulically stepless adjustable from 1m/min to 7m/min return speed: hydraulically stepless adjustable from 7m/min to 30m/min maximum stroke: 1200mm Broaching tool clamping: universal drawing head for flat shanks up to 26mm width maximum workpiece diameter: Ø max. 480mm (due to oil and chip tray) table opening: Ø 70mm power supply: 380 Volt / 50 Hz / 5kW

Condition: used, Functionality: fully functional, Manufacturer: Arthur Klink Year of construction: ca.1960 Type: horizontal broaching machine Model: RH 10-50 Machine. No.: 241 Weight: 3.700 KG General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design Gslsr A Hdgjhcdw Asub Clearing stroke: 1,500 mm Tractive force: 10,000 kg (100KN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece clamping surface: Ø 460mm Workpiece diameter: max. approx. 750mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 7 m/min Return speed: hydraulically infinitely variable from 5 m/min to 30 m/min Space requirement of the machine: (w x d x h) approx. 6500mm x 950 mm x 1,400 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 8kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter Accessories - 1 universal pulling head for flat shafts from 3mm to max. 25mm wide - Adapter sleeve for drawbridge from Ø 85mm to Ø 63mm Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is well suited for heavy profile broaching tools. The machine is used and is in very good condition for its age. The machine is in our warehouse and can be inspected under power. The machine is currently not technically and visually refurbished, but can be used immediately. Pulling heads for profile broaching are mostly available used on request depending on DIN standard, dimensions and stock. Direct contact details and further information can be found in the attached PDF document

Year of construction: 1994, Condition: excellent (used), machine/vehicle number: 04.2398, Manufacturer: Arthur Klink Type: RIW 10 x 1500 x 500 Gjlhcdwsgyd T Es Aeub Machine No.: 04.2398 Year of construction: overhauled by manufacturer 1994 weight: 3700kg tractive force: 10.000kg (100kN) max. stroke: 1500mm max. workpiece diameter: Ø 500mm clearing speed: infinitely variable from 1m/min to 6m/min return speed: stepless adjustable up to 20m/min power supply: 400V / 50Hz

Year of construction: 1999, Condition: like new (used), Functionality: fully functional, Manufacturer: Arthur Klink Year of construction: 1999 Type: horizontal broaching machine Model: RIW 10x1600x400 Weight: 2.700 KG General / technical data: horizontal hydraulic internal broaching machine in mint condition with tool holding system ideal for the use of flat broaching tools. Broaching stroke: 1.600mm Tractive force: 10,000 kg (100kN) Mounting in the drawbridge: Ø 85mm Cylindrical Through-hole in the clamping table: Ø 100mm Workpiece diameter: max. 400mm (due to the machine body of the tool trough) Cutting speed: hydraulically infinitely variable from 1.0 m/min to 9 m/min Return speed: hydraulically infinitely variable from 1 m/min to 24 m/min Space requirement of the machine: (w x d x h) approx. 6,400 mm x 1,450 mm x 1,600 mm (without working area) Power supply: 400Volt 50 HZ Connected load: 9kw Equipment: - the machine has an electric control for the clearing stroke movement with manual operation and automatic sequence - the machine has an integrated coolant system - the machine has a tool holding system for flat broaching tools (no feed) - The broaching carriage with the pulling head holder is equipped with a flat guide on both sides Accessories - 1 universal pulling head for flat shanks from 3mm to max. 25mm wide and a maximum pulling force of 10kN (10,000kg) - Complete machine documentation and CE declaration of conformity Remarks: Gjlsr A Hcbshcdw Ajub The machine is ideal for the production of keyways. Due to the connection with the stable machine bed of the machine and the broaching tool holding system, the machine is particularly suitable for quick and easy use of flat broaching tools. The machine has been used very little and is in mint condition. The machine is available for inspection in our warehouse and is ready for demonstration under power. Our direct contact details and further information about the machine can be found in the attached PDF document

Year of construction: 1955, Condition: used, machine/vehicle number: 1331, Manufacturer: Karl Klink Model: RW 10 Year of manufacture: 1955 Weight: approx. 2950 KG Machine. No.: 1331 General / technical data: hydraulic horizontal internal broaching machine in a good working condition clearing length: 1500mm turning: 1 piece pulling force: 10000 KG at 3m/min (5000KG at 7m/min) Clamping tool: universal pulling head for flats up to 26mm width Through hole in clamping table: Ø 100mm Workpiece diameter: max. 420mm (due to the oil and oil sump) cutting speed: hydraulically infinitely variable from 1m/min to 7m/min Return speed: hydraulically infinitely variable from 7m/min to 25m/min Dimensions of the machine: (w x d x h) approx. 6200mm x 700mm x 1900mm (without working area) Power supply / connected load: 380Volt 50 HZ / 8 KW hydraulic motor: 7,5 KW Accessories / special equipment: - the machine is equipped with a universal drawing head for flat sheets - the machine has a movable coolant cutting unit for 2 media - the machine has an oil and oil tank with a tool feeder slide Gjlhcdwodbr H Ts Aeub Remarks: The machine is ideal for the production of keyways and profiles. The machine runs smoothly and is very clean in the area of the guides and the cylinder. Broaches and mandrels can be supplied on request. The machine is ready for inspection under power in our warehouse.

Year of construction: 1961, Condition: used, General / technical data: Vertical duplex external broaching machine with two tables Manufacturer: Karl Klink Model: RSA 10 T/Zw. Year of manufacture: 1961 weight: approx. 6.500kg tractive force: 10t clearing speeds: 1 - 11m/min return speeds: 7 - 25m/min maximum stroke: per machine unit 1250mm clamping area: 500 x 500mm passage width: 380mm Gujlhcdelwu Hrew Ajb power supply: 380 Volt / 50 Hz Remark: The machine is under power in our warehouse and can be inspected.

Year of construction: 1951, Condition: good (used), machine/vehicle number: 1133, horizontal hydraulic broaching machine Karl Klink (our Ref No. WKG 1678) machine type: horizontal internal hydraulic broaching machine manufacturer: Karl Klink type: RW 10 built in: 1951 stroke 1500mm pulling force: 10.000KG Gslhcsdcdrpjdw Aoub working stations: 1PCs drive: hydraulic system equipment: coolant system Optional accessories available on request: Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3.000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke

Year of construction: 1956, Condition: used, machine/vehicle number: 1413, Manufacturer: Karl Klink Model: RISZ 10x 1200 Year of manufacture: 1956 Weight: 3450 KG Machine. No.: 1413 General / technical data: used vertical hydraulic indoor rasping machine with up to 3 rasping points in a ready to use condition tractive force: 13000 KG (maximum) room length: 1200mm Raeumstellen: 3 pieces Spacing between the racks: 100mm Diameter of the pulling head: Ø 85mm passage width between the cylinders: max. 390 mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1150 x 1500 x 3725mm (tool feeder extended) Power supply / connected load: 380Volt 50HZ / 7,5KW Gelhcdsdbmgmow Aoub Accessories / special equipment: The drawbridge of the machine has 3 space tool holders, the tool table has 1 space (changeable). The tool clamping system as well as the tool feeder is provided for a spring-mechanical locking (DIN 1415). The machine has an automatic tool feeder, the existing tool feeder is also available for only 1 tool (middle space). The machine has an integrated coolant system for cutting oil. Remarks: The machine is in a good condition according to its age and is ready for immediate use. It is designed for manual production with medium batch sizes. The machine has

Year of construction: 1960, Condition: refurbished (used), machine/vehicle number: 1733, Vertical internal broaching machine with switching plate of the company Karl Klink Type: RSI10DT Machine No.: 1733 Year of manufacture: 1960 weight: 4,9 to broaching force: 10.000kg With switch plate ( 2 stations ) Power supply: 380V / 50Hz Rated current: 35 A Connected load: 7,5 kW The machine is completely revised and is therefore in a very good condition. Gslhcegyd S Sodw Aoub

Year of construction: 1962, Condition: good (used), machine/vehicle number: 1886, Used vertical hydraulic internal broaching machine with 3 broaching points Tractive force: 10.000 kg clearing length: 1.200 mm Broaching points: 3 pieces Distance between the broaching points: 380 mm Mounting diameter of the broaching heads 3 x Ø ___mm Passage width between the cylinders: max. XXX mm Guelhcdwjt Dwb Ds Asb Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1,300 x 1,450 x 3,350 mm (without pit) Power supply / connected load: 380Volt 50 HZ / 8.0 KW Accessories / special equipment: The machine is equipped with a workpiece table with 3 holes for 3 broaching positions. The tool clamping system is provided for spring-mechanical locking in the drawbridge and in the feeder. The machine has an integrated coolant system. Remarks: The machine is designed for use in series production, ideally a foundation (pit) or optionally a platform is required for optimum use. Drawing heads and needle lifters are available on request. The machine can be viewed in our warehouse.

Year of construction: 2000, Condition: excellent (used), machine/vehicle number: 03.2456, CNC Ibroching machine Arthur Klink RISH 6.3X1000X400 Renewed in 2016 Guslhcdwsirwiqe Asb

Year of construction: 2000, Condition: excellent (used), technical data coming soon. Gelhcdek S U Hcow Ajub

Year of construction: 1993, Condition: good (used), machine/vehicle number: 03.2370, Arthur Klink - internal broaching machine (WAG 748) machine type: internal vertical hydraulic broaching machine manufacturer: Arthur Klink type: RISZ 10 x 1000 built in: 1993 stroke: 1000mm pulling force: 10.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, magnetic chip conveyer Golhcecc D Ddodw Aeub remark: machine under power in stock the machine has an automatic workpiece loading system for 2 workpieces, ideal useable for high production Optional accessories available on request: tools, workpiece holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke.

Year of construction: 1990, Condition: excellent (used), Manufacturer: Arthur Klink Guelhcdwelpadys Asb Year of manufacture: 1990 Model: RISZ 16 x 1250 x 400 / HG Technical data: Vertical internal broaching machine in technically very good condition tractive force: 16.000kg clearing speed: up to 27,5 m/min infinitely variable return speed: up to 34 m/min infinitely variable maximum stroke: 1250mm broaching units: 4 pieces accessories: - automatic tool changer - automatic part feeding (part specific) - hydraulic tool clamping device (part specific) Remark: High performance production broaching machine for high volume production with high cutting speed!

Year of construction: 1980, Condition: good (used), machine/vehicle number: 03.2123, Manufacturer: Arthur Klink Model: RISZ 25x 2500 x 500 Year of manufacture: 1980 Machine No.: 03.2123 General / technical data: used vertical hydraulic indoor rasping machine with 3 rasping points in a very good condition tractive force: 25000 KG clearing length: 2000mm wheel positions: 3 pieces Distance between the wheels: 160mm diameter of the drawing heads: 3 x Ø 100mm Clearance width between the cylinders: Nominal size 500mm passage width between the cylinders measured: max. 590mm Cutting speed: hydraulically infinitely variable from 1m/min to max. 10m/min Return speed: hydraulically infinitely variable from 5 to max. 25m/min Space requirement of the machine: (w x d x h) approx. 3400mm x 3400mm x 6900 mm (without pit) Power supply / connected load: 380Volt 50 HZ / 22 KW Accessories / special equipment: Gslhcdodffzfew Aeub The machine is currently without work table. On the machine was a workpiece sliding table mounted with a special workpiece clamping device for external broaching. (The workpiece sliding table is changeable). The tool clamping system is equipped with a hydraulic lock in the draw bridge as well as in the feeder. The machine has a coolant system with integrated chip conveyor. Remarks: The machine is in very good condition and is still in its original paint. It is designed for serial production, for optimal use a foundation (pit) is ideally needed. Drawing heads and needles

Year of construction: 1971, Condition: excellent (used), Horizontal internal broaching machine Arthur Klink RIW 16x1800 -WAG 718- Manufacturer: Arthur Klink Type: RIW 16 x 1800 Guelhcdshpqqujw Asb Year of manufacture: 1971 Max. Tractive force: 16t Max. Stroke: 1800mm Max. Cutting speed: 7m/min Max. Return speed: 25m/min Max. Tool diameter: Ø 95mm Weight: 4,8to

Year of construction: 1983, Condition: excellent (used), machine/vehicle number: 03.2133, Arthur Klink - internal broaching machine (KOM 138) machine type: internal vertical hydraulic broaching machine manufacturer: Arthur Klink type: RISZ 16 x1250 x400 built in: 1983 stroke: 1250mm pulling force: 16.000KG working stations: 3 PCs drive: hydraulic system equipment: coolant system, magnetic chip conveyer remark: in an excellent condition, ready to use, perfect slides Optional accessories available on request: pulling head, pick up tool holder Information about us: we are specialized for second hand broaching machine and still have anytime about 80 pcs of used broaching machines in our stock, vertical and horizontal machines from 3000kg up 63.000kg pulling force and from 1000mm stroke up to 3500mm stroke Gelhcdwjd Nb A Ne Asub

Condition: good (used), Year of construction: 2006, Power: 16 tons. Gjlhswiihcjcdw Aeub Maximum stroke: 1,000 mm. Table width: 500 mm.

Year of construction: 1958, Condition: used, machine/vehicle number: 1545, Manufacturer: Karl Klink Model: RIS 6 x 1000 Year of manufacture: 1958 Weight: 2500 KG General / technical data: used vertical hydraulic indoor rasping machine with 1 rasping point in a working condition tractive force: 6000 KG clearing length: 1000mm diameter of the pulling head: Ø 85 mm passage width between the cylinders: max. 280 mm Cutting speed: hydraulically infinitely variable from 1 m/min to max. 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to max. 25 m/min Space requirement of the machine: (w x d x h) approx. 1000 x 1200 x 2800mm Power supply / connected load: 380Volt 50 HZ / 4KW Gusljda Ugishcdw Ajb Accessories / special equipment: The machine is equipped with a workpiece table for 1 rearrangement. The tool clamping system is provided for a spring-mechanical locking (DIN 1415). The machine has an integrated cooling system. There is a double pulling head for 2 flat broaching tools with tool support plate. Remarks: The machine is in a good condition according to its age and is ready for immediate use. It is designed for manual production use with medium batch sizes. For the use ideally a machine pit or alternatively a platform is needed. Drawing heads are available on request. The machine has no tool feeder. The machine can be inspected in our warehouse under power.

Year of construction: 2004, Condition: good (used), - Tractive force: max. 160 kN - Clearing stroke: max. 1000 mm - Truck feed stroke: max. 630 mm - Table top width: 630 mm - Broaching speed: 10 m/min Gjlhcdjv Dvnaow Aoub - Return speed: 23 m/min - Installed power: max. 88 kW - Machine weight: 12,410 kg

Condition: used, Year of construction: 2023, _____Equipment follows.....,Storage location:93095 Hagelstadt Guslhjvz R Ucocdw Ajb

Condition: refurbished (used), Functionality: fully functional, Forklift battery with a 1-year warranty 48V 6PZS 750AH - DIN B REMA 320 A connector installed - alternative connectors can be converted upon request Including Aquamatik for automatically filling the cells with distilled water Test date 2024 Dimensions: L 1,030 x W 619 x H 627 mm Weight: approx. 1,050 kg Capacity: min. 90-100% (C5 report included with delivery) Fits: Linde A 10 - 117-00 Linde A 10 Z - 117-00 Jungheinrich EFX Jungheinrich EFX 125 Jungheinrich EFX 13 Jungheinrich EFX 413 Jungheinrich EKX 410 Nichiyu FBT18-80 and more... All common battery sizes available. Guslhcdwjwindcj Asb

Condition: like new (used), amount 39 STK Broaching tool, broach, special tool, grooving tool, grooving machine, grooving machine, grooving jointing machine, grooving jointing tool, broach - Manufacturer: KARL KLINK, Various broaches in a complete package, with cabinet. Gjlhju A I A Docdw Aeub Quantity= 39 pcs. Unit price per piece = 140,00€ / per piece Complete purchase with cabinet = 120,00€ / per piece
