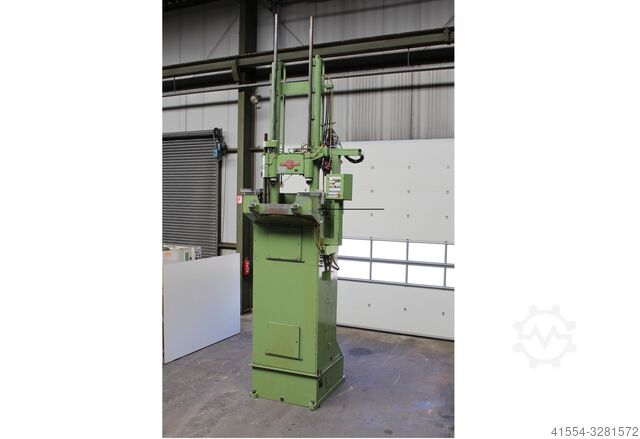

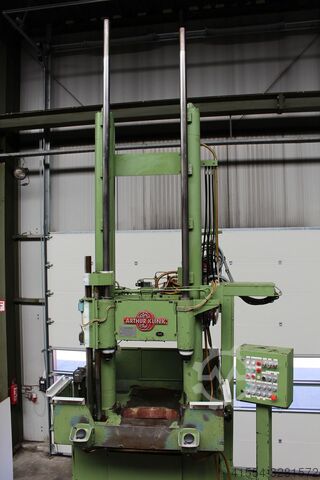

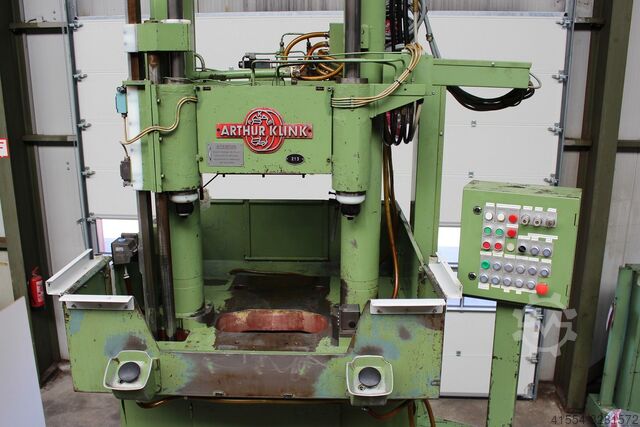

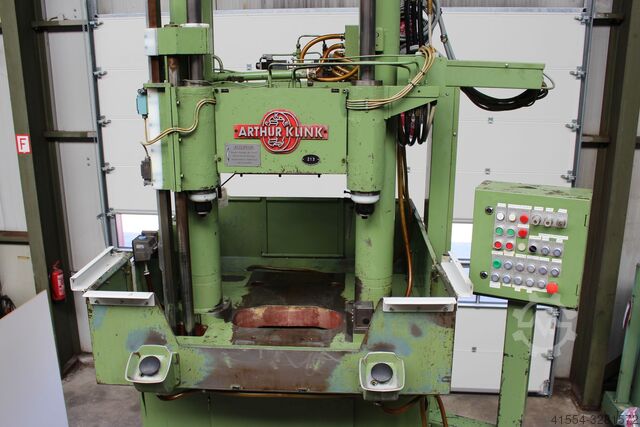

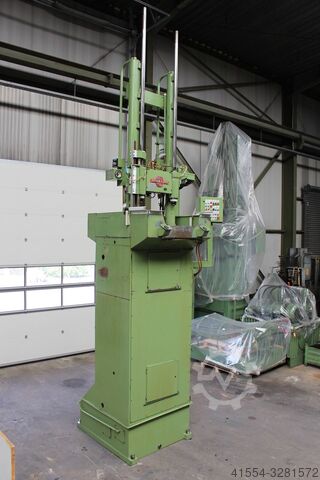

Internal broaching machine

Arthur Klink RISZ 25 x 2000 x 500

Manufacturer: Arthur Klink
Model: RISZ 25x 2500 x 500
Year of manufacture: 1980
Machine no.: 03.2123

General / technical data:
Used vertical hydraulic internal broaching machine with 3 broaching stations in very good condition.
Pulling force: 25000 KG
Broaching length: 2000 mm
Hedpjdffzfjfx Adzjr
Number of broaching stations: 3
Distance between broaching stations: 160 mm
Mounting diameter for broach holders: 3 x Ø 100 mm
Clearance width between cylinders: Nominal size 500 mm
Measured clearance width between cylinders: max. 590 mm
Cutting speed: Hydraulically continuously adjustable from 1 m/min to max. 10 m/min
Return speed: Hydraulically continuously adjustable from 5 to max. 25 m/min
Machine footprint: (w x d x h) approx. 3400 mm x 3400 mm x 6900 mm (without pit)
Power supply / connection value: 380 volts 50 Hz / 22 kW

Accessories / special equipment:
The machine is currently without a workpiece table. A workpiece sliding table was mounted on the machine, with a special workpiece clamping device for external broaching. (Workpiece sliding table can be modified).
The tool clamping system is equipped with a hydraulic locking mechanism in the pull bridge and in the feed mechanism. The machine has a coolant system with an integrated chip conveyor.

Remarks:
The machine is in very good condition and still has its original paint. It is designed for use in series production, and for optimal use, a foundation (pit) is ideally required. Broach holders and pin ejectors are available upon request. The machine can be inspected at our warehouse.

The listing was translated automatically. Translation errors are possible.
