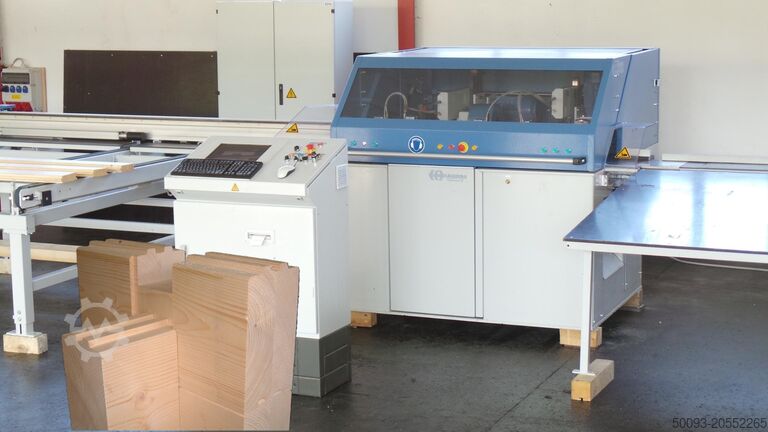

Auertec log house milling machine

Auertech BL100A

New machine

Year of manufacture: 2023

Delivered in 2024; originally packaged and not commissioned

Equipment and technical data:

Feeding Table with Cross Conveyor
Number of lanes: 6x with supergrip timing belts
Pitch: 650 / 650 / 850 / 1500 / 1500 mm
Length: approx. 1.8 m
Drive: geared motor, 1.5 kW
Minimum length of workpiece to be fed: 0.8 m
The placement of the raw material (laminated logs) onto the cross conveyor is performed by the operator. The cross conveyor automatically transfers the workpieces to the infeed table via level lowering.

Infeed Table
Smooth sliding table with gliding plastic, on which the raw material is pushed into the machining zone by the servo pusher without damage.
Support width: approx. 200 mm
Csdsxavtkopfx Abwohc

1 pc. Log Cabin 4F-SERVO

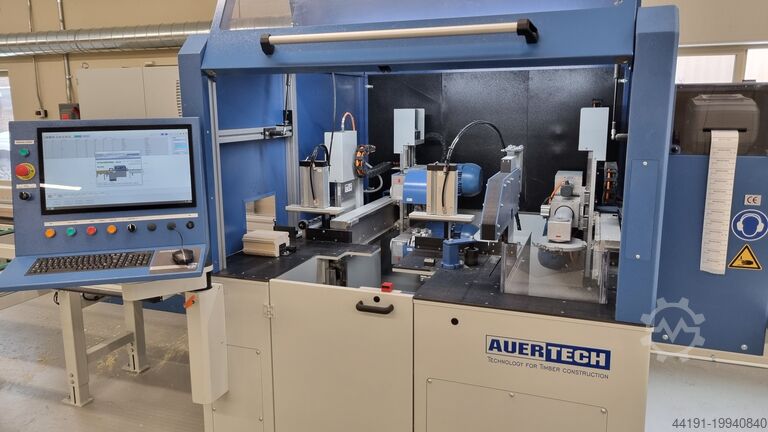

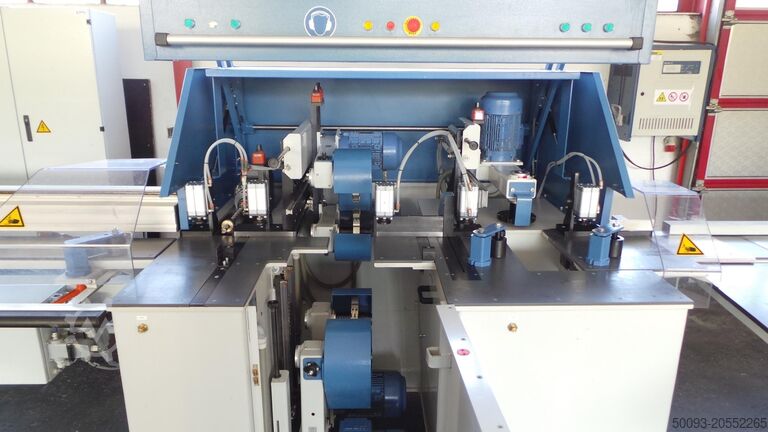

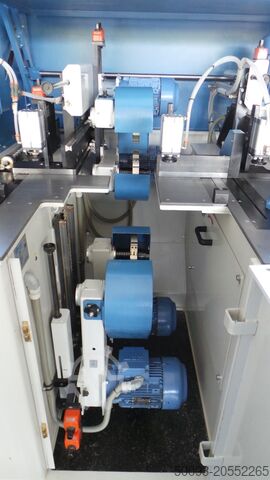

Main milling unit for producing the log cabin corner joint by milling on four sides of the log in a single clamping. Machining is carried out by two milling tools from the back and two milling tools from below, each guided on horizontal and vertical feed supports.
Machining dimension: 140 x 200 mm
Milling depths: horizontal top: max. 60 mm / horizontal bottom: max. 35 mm / vertical: max. 95 mm
Spindle diameter: 30 mm
Milling cutter, max. size:
Horizontal: 2x D=220 x W=120 mm
Vertical: 2x D=280 x W=120 mm
Motor power: 4 x 4.0 kW
Speed: c
Feed horizontal & vertical: SERVODRIVE, continuously adjustable via software operation; automatic by IPC control / manual via two-hand push buttons
Milling depth adjustment: spindle, digital counter
Workpiece clamping device: vertical pneumatic / horizontal pneumatic
Extraction: underfloor hopper ?160 mm (pit required on site)
Complete with electrical system, PLC control and pneumatics. Machine frame prepared for the installation of end groove or dovetail mill, drilling unit and crosscut saw. Enclosed machine housing with upward-opening protective cover (with gas spring) and viewing window. Electrical control cabinet mounted on plinth with 3.0 m cable conduit. - Ready for operation, but without tools.

1 pc. Option i: automatic milling depth adjustment for 4F mill
The system consists of 4 additional NC-controlled SERVO axes for automatic milling depth positioning of the 4F tools. Input and parameter settings are performed entirely via the IITO Control Software. Full control of all motions allows for numerous additional machining possibilities:
- Individually tailored grooves and millings on all four sides of the workpiece
- Cutouts or markings for window and door openings
- Individual two-sided milling on workpiece sides
- Individual three-way connections
- Half corner joints for upper and lower logs or for beam layers
Control: automatic with IPC / PLC / IITO software
Milling depth adjustment: SERVODRIVE
Tolerance: +/- 0.1 mm

2 pcs. groove cutter, 4-piece, D220; 21–90 mm; solid tool steel
For 4-sided horizontal mill
Wall thickness: +/- 28-100mm
Dimensions: ø220/30
Adjustable width: 21.0 - 90 mm
Design: Z=3; V=3, solid/HM-WEPLA 15x15x2.5

2 pcs. groove cutter, 4-piece, D280; 21–90 mm; solid tool steel
For 4-sided vertical mill
Wall thickness: +/- 28-100mm
Dimensions: ø280/30
Adjustable width: 21.0 - 90 mm
Design: Z=3; V=3, solid/HM-WEPLA 15x15x2.5

1 pc. combination mill for end groove & dovetail
3-axis controlled milling unit with a combination
