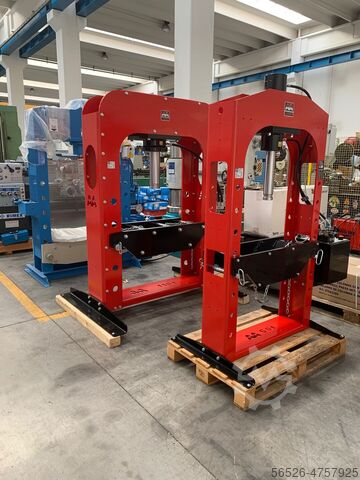

50 ton hydraulic press

AXA P50MR

The P50MR motorized hydraulic press guarantees high performance and maximum execution precision thanks to the robust structure entirely cut by laser without welding in the points of greatest stress.
They are equipped with a 400 [V] 50-60 [Hz] submersible motor control unit, a fast approach and return pump calibrated to 20 [bar] plus an adjustable pressure pump with handwheel to obtain the required power.
They are also equipped with a pressure relief valve with mechanical block to prevent overpressure and the pressure gauge (standard) allows to calibrate with extreme precision the power delivered.
Power Ton 50
Inside light shoulders mm 800
Approach speed mm/min 1800
Working speed mm/min 350
Rapid flow rate l/min 26
Flow rate in slow l/min 5
Cylinder stroke mm 300
Cylinder bore mm 135
Stem diameter mm 70
Shank diameter mm M30
Tank capacity 50 litres
Max. pressure bar 350
Voltage V400
Frequency Hz 50-60
Codpfxefvhqgs Agmerh
Engine power kW 3
Max. current consumption A 5.5
Weight kg 500
Dimensions 1550 x 800 x 1965 (h)
