Electro-hydraulic press 150 Ton

AXA PM 150/15

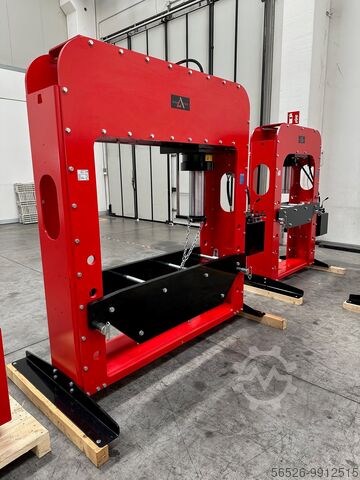

AXA ELECTRO-HYDRAULIC PRESS WITH MOVING CYLINDER.
Capacity: 150 tons.
Dual automatic speed with rapid traverse.
Special electrical panel with fast/slow switch for one-hand operation.
Moving cylinder with 816 mm traverse stroke.
Internal daylight from shoulder to shoulder: 1500 mm.
Ram stroke: 300 mm.
No. 01 AXA PM150/15 ELECTRO-HYDRAULIC PRESS WITH MOVING PISTON – NEW CONDITION “CE” MARKED.
-DUAL AUTOMATIC SPEED WITH RAPID TRAVERSE.
-COMPLETE WITH A SPECIAL ELECTRICAL PANEL FOR FAST/SLOW SWITCH FOR ONE-HAND OPERATION.

-TECHNICAL DATA SHEET ATTACHED.

-Applied force: 150 tons
-Cylinder stroke: 300 mm
-Internal daylight: 1504 mm
-Approach speed (rapid traverse): 1450 mm/minute
Laodpfxelruhdj Ammec
-Working speed (slow): 105 mm/minute
-Cylinder ram stroke: 300 mm
-Cylinder ram diameter: 110 mm
-Stem diameter: M30
-Tank capacity: 50 liters
-Max. pressure: 350 bar
-Voltage: 400 V, Frequency: 50-60 Hz
-Power: 3 kW motor
-Max. current consumption: 7.3 A
-Weight: 1500 kg

GALTECH distributors.
• 2MP block.
• No. 2 VIVOIL external gear unidirectional pumps. One for rapid approach and return (calibrated at 20 bar), and one with adjustable pressure controlled by a handwheel to set the required power.
• Maximum pressure valve with mechanical lock to prevent overpressure.
• Standard pressure gauge to display the applied force.
• INTECH electrical panel certified according to current regulations and with independent CE marking.
