Milling Machining Centers 5 Axis

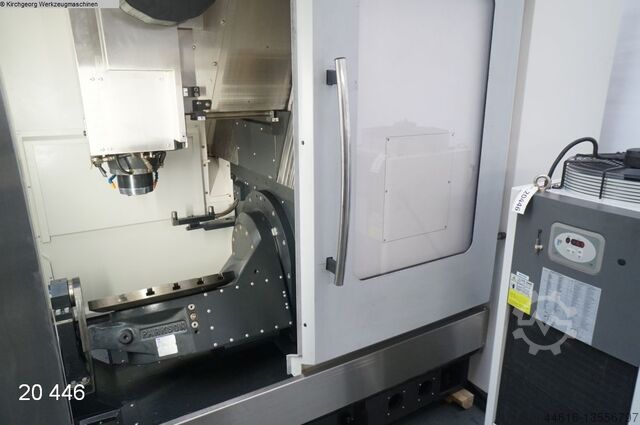

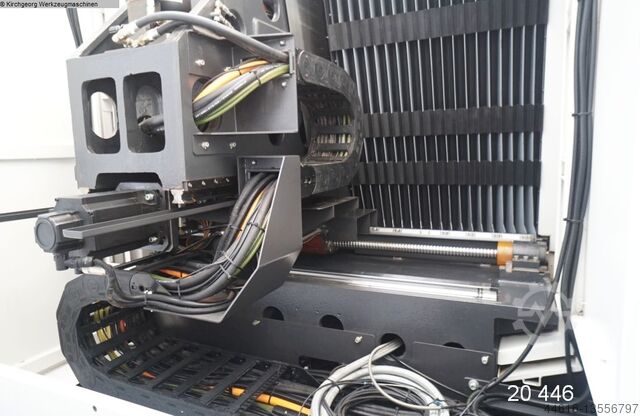

AXON LITZ LU 620 / iTNC 640

Condition: as good as new (ex-display), Year of construction: 2024, General Tool magazine : 2x chain magazine with 32 stations each Rapid traverse in X/Y/Z : 48 m/min Traverse path X/Y/Z : 800/900/620 mm Spindle Technology : Direct drive Speed : 15.000 rpm Bledpfsur Ng Ujx Ah Isd Tool holder : HSK-A63 NC rotary table Technology : Swivel rotary table with torque drive, made by Kessler A-axis : +/- 120 C-axis : 360° Clamping surface : ø800 mm Table load (max.) : 1,000 kg Workpiece dimensions (max.) : ø800 x 500 mm Equipment Distance measuring system : Direct (glass scales) in all axes Chip management : Chip conveyor Coolant management : IKZ system with filter and high pressure, 18 bar Workpiece measurement : Touch probe, Heidenhain TS 740 Tool measurement : Laser, BLUM Set-up mode : Electronic handwheel Additional equipment : Spindle cooler

Condition: excellent (used), Year of construction: 2022, operating hours: 3,000 h, CNC Milling Machine POSMILL E 2050 Year of manufacture: 2022 Spindle hours: 730 h Bsdpoxz Dlqefx Ah Iold Heidenhain TNC 640 Technical Data: X-axis: 2050 mm Y-axis: 1150 mm Z-axis: 700 mm Table clamping area: 2200 x 100 mm Power milling spindle: S: 10,000 rpm ISO 40 Tool changer for 60 tools Heidenhain linear measuring system X, Y, Z Control cabinet extension for 4th and 5th axis

Condition: used, Year of construction: 2020, Console / table Horizontal clamping surface (L x W) mm 315 x 710 T-slots (number / width / distance) mm 5 / 14 / 63 Spindle / table distance mm 100 - 450 Max. table load kg 200 Travel, automatic / manual Longitudinal travel (X-axis) mm 400 Transverse travel (Y-axis) mm 315 Vertical travel (Z-axis) mm 350 Vertical milling spindle Spindle holder DIN 2080 ISO 40 Spindle speeds rpm 80 - 3,000 Pivoting degrees +/- 45 Quill stroke, manual mm 80 Feed rates Rapid traverse (X/Y/Z) m/min 5 / 5 / 2.5 Feed rate (X/Y/Z) mm/min 2,000 Drive power Bjdpju Tfgxjfx Ah Isld Total power kW 7.5 Machine dimensions and weight Length mm 1'520 Depth / width mm 2,130 Height mm 1'950 Weight kg 1'700

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, simultaneous 5-axis version - SIEMENS 840 D SL control - Working range X= 780, Y= 600, Z= 520 mm - C-axis 360° - B-axis -50°/+110° - Table clamping surface 720 x 540 mm - Spindle speed 20 - 15,000 1/min - Tool magazine 60 places - HSK 63A tool holder Bjdpjr T S Nhofx Ah Ijld - High pressure system IKZ 40 bar - Measuring probe 3D Weight 8,100 kg

Condition: like new (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 1791, MATEC 30HV/NC X = 2,000 mm Y = 825 mm Z = 800 mm / horizontal Z = 675 mm / vertical - 1-axis CNC swivel head Swivel radius 300 mm, swivel angle max. +/- 105 degrees Direct path measuring system +/-3, optionally continuous or indexed with clamping Clamping forces: 2,400 Nm unclamped, 4,200 Nm clamped - Electronic handwheel (portable) - Remote diagnosis / remote maintenance - Tool magazine with 48 positions - Additional tool magazine with 216 positions Fixed tool magazine for loading the internal tool changer of a machine tool. Including: - Linear and rotary axes with drives - Controllers and sensors - Gripper for tool holder SK40 - Sheet steel enclosure - 6 tool levels for storing up to 216 tools with SK40 holders D = 80 mm or D = 160 mm if adjacent slots are free, comprising: 40 pcs. with L = 430 mm 64 pcs. with L = 260 mm 112 pcs. with L = 160 mm Maximum tool weight: 10 kg - Tool loading and unloading via tool flap - Transfer to machine via double gripper - Tool data entry via the machine operating panel, selection of tool positions via the operating panel of the additional magazine - Option: Operating panel for tool data entry at additional magazine - Additional price for motor spindle 9,000 rpm Motor spindle with 30 kW (40% duty cycle) 17 kW (100% duty cycle) Torque 191 Nm (40% duty cycle) 108 Nm (100% duty cycle) - Internal coolant supply 20 bar - Internal coolant supply 40 bar - Compressed air to external nozzles - Internal compressed air through tool - Rotoclear - Automatic safety doors - HOWIMAT CNC 220.2/TMI-50 rotary table 1-axis precision indexing table with direct drive Bjdpfxsxg D Ate Ah Isld Indexing accuracy deviation max. +/- 10 seconds Radial/axial runout deviation max. +/- 0.003 mm - Single rotary union for rotary table or counter bearing - Zero-point clamping system integrated in the machine table, without draw studs and cover. - Tool breakage monitoring - Fully enclosed work area with roof - Bellows with steel lamellae - Direct measuring system X-, Y-, Z-axis - Chip conveyor - Rinsing gun - Centralized oil lubrication - Work area lighting - Installation elements

Condition: like new (used), Year of construction: 2023, functionality: fully functional, travel distance X-axis: 1,760 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 850 mm, Travel Paths X-axis: 1760 mm Bljdpfx Aoydmprsh Ijd Y-axis: 600 mm Z-axis: 850 mm Vertical distance table – spindle nose: 0 – 820 mm Horizontal distance table – spindle nose: 180 – 1030 mm Spindle & Drives Spindle speed range: 30–12000 rpm Swivel head B-axis: interpolating B-axis travel range: -100 to 100 Max. torque at 40% duty cycle: 191.0 Nm Max. torque at 100% duty cycle: 127.0 Nm Max. power at 40% duty cycle: 40.0 kW Max. power at 100% duty cycle: 26.6 kW Rotary Table RTA 4-TF-630 Table diameter (vertical rotary axis): 630 mm Weight: 595 kg Tool Changer Tool holder: HSK A 63 Tool pockets: 42 Machine Dimensions Length / width / height: 6850 / 3450 / 3100 mm Weight: 19 t Accessories: – Documentation – Measuring probe

Condition: as good as new (ex-display), Year of construction: 2025, operating hours: 150 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 48 m/min, rapid traverse Y-axis: 48 m/min, rapid traverse Z-axis: 48 m/min, nominal power (apparent): 35 kVA, torque: 120 Nm, controller manufacturer: Heidenhain, controller model: TNC7, table load: 2,000 kg, rotary table diameter: 800 mm, overall weight: 18,600 kg, spindle speed (min.): 20,000 rpm, spindle motor power: 34,000 W, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, As-new demonstration machine, laser, probe, configurable through coolant (IKZ) Bljdpfx Ahsxbzyrj Isd

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK40 - Spindle power : 32,5 [kW] - Spindle speeds : 40.000 [rpm] - Number of spindle hours : 1.211 [h] LINEAR AXES - Travels on X/Y/Z axes : 420 / 320 / 320 [mm] - Cutting feed rates (X/Y/Z) : 60.000 [mm/min] A ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Cutting feed rate : 200 [rpm] B ROTARY AXIS - Travel : 100 [°] (+/-) - Indexing precision : 0,001 [°] - Cutting feed rate : 200 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 60 - Tool exchange time : 5 [sec] TABLE - Table dimensions : Ø 250 [mm] - Maximum weight upon table : 20 [kg] - Distance table / spindle nose (min./max.) : 40 / 360 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 35 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2.050 x 2.555 [mm] - Machine height : 2.520 [mm] - Machine weight : 5.000 [kg] MACHINE HOURS - Number of hours under power : 4873 [h] EQUIPMENT - CNC : Heidenhain iTNC530 - Electronic handwheel - Linear scales - 3 colors status lamp - Coolant tank * With washing gun Bsdpsuhbuuofx Ah Ield - Chips conveyor - Oil mist extractor : FILTERMIST FX5002 - Spindle cooling unit - Electrical cabinet air conditioning - Tool probe : Renishaw - Workpiece probe : Renishaw - Tool-holders : 60 - Tool preparation bench

Condition: new, Year of construction: 2025, operating hours: 10 h, machine/vehicle number: AS0422, NEW MACHINE Simultaneous Turning Center SPINNER TTS-Triplex V1 with two independent turrets SPINDLE 1 up to 5,000 rpm - 65 mm Motor spindle with water cooling with hydraulic hollow clamping cylinder, bar capacity 65 mm, speed range 0–5,000 rpm Bodpjtrfblefx Ah Ijld SPINDLE 2 (counter spindle) up to 7,000 rpm - 42 mm Motor spindle with water cooling with hydraulic hollow clamping cylinder, bar capacity 42 mm, speed range 0–7,000 rpm SPINDLE FLUSHING Spindle 2 EJECTOR UNIT integrated in counter spindle TURRETS 1 and 3: 12-station with CNC servo drive, top left 12 turret stations are driven Independent axis movement in X1 / Z1 / Y1 TURRET 2: 12-station with CNC servo drive, lower position 12 turret stations are driven, Independent axis movement in X2 / Z2 Tool holder system BMT45 on the turret Control SIEMENS 840DE - Path control with SHOPTURN BASIC interface - Rotatable control panel - 19" color LCD screen - Handwheel integrated in control panel - 1 free USB port - Ethernet interface - Siemens turning cycles for threading, deep drilling, parting, grooving - Thread cutting without compensating chuck for central threads in spindle center SHOPTURN 3D SIMULATION of finished part Tool monitoring via current draw "FORCE-CONTROL" – operation to hard stop CNC clamping force adjustment on both spindles CHIP CONVEYOR as hinged-belt conveyor discharging to the right COOLANT SYSTEM incl. high-pressure pump 25 bar MEASURING PROBE for tool measurement UNIMAG interface for bar feeders PARTS PICKUP DEVICE for removing workpieces from spindle 2 including catch tray L=180 mm Dmax=65 mm mounted on turret 2 including chute to the front of the machine PARTS CONVEYOR STANDARD DOCUMENTATION IN GERMAN consisting of machine manual and CNC manuals delivered digitally on the control STANDARD PAINTING two-tone in light grey RAL7035 and blue-grey RAL5008 Electrical version EUROPE STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN system (5-wire) The tool holders shown in the pictures are not part of the offer. Notes: The price includes warranty services only within Germany for 12 months. Machine is brand new. Special price version V1-840D For new and demo machines, the images may not necessarily depict the actual machine, but comparable machines. Accessories shown such as clamping devices or tool holders are only included if listed in the technical description. Request a detailed quote ex works. Visit our facility near Munich or one of our showrooms. We may have other comparable machines available. Prior sale reserved.

Condition: reconditioned (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, number of slots in tool magazine: 60, controller manufacturer: Heidenhain, controller model: ITNC 530 HSCI, coolant supply: 40 bar, spindle speed (max.): 18,000 rpm, spindle speed (min.): 20 rpm, Equipment: chip conveyor, documentation/manual, Universal machining center DMG-Mori DMU 60 Evo Linear year 2013 Traverse paths X/Y/Z 600 mm x 500 mm x 500 mm Control Heidenhain ITNC 530 HSCI NC swivel rotary table 600 mm x 500 mm Swivel range B-axis -5° to + 110° C-axis 360° incl. table cooling Spindle speed 20 -18 000 rpm HSK 63 A Tool magazine with 60 places Infrared measuring probe TS 649 Laser tool measurement IKZ with 40 bar, chip conveyor Electric handwheel. 3 D Quickset Bledsu Rdynspfx Ah Ijd ATC Operating mode 4 Tropic package
