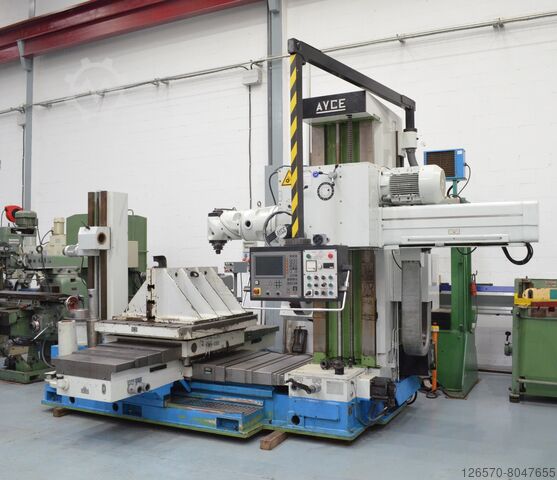

Horizontal boring machine AYCE AC-100 K4

AYCE AC-100 K4

Used cnc horizontal milling boring machine

Cjdpfx Abjizxbijwohc
Brand: AYCE

Model: AC100-k4

Serial number: 740

Year: 1998

Power: 16kw

Weight: 12,700kg

AC100-K4 MODEL WITH CONTINUOUS ADVANCE VARIATION

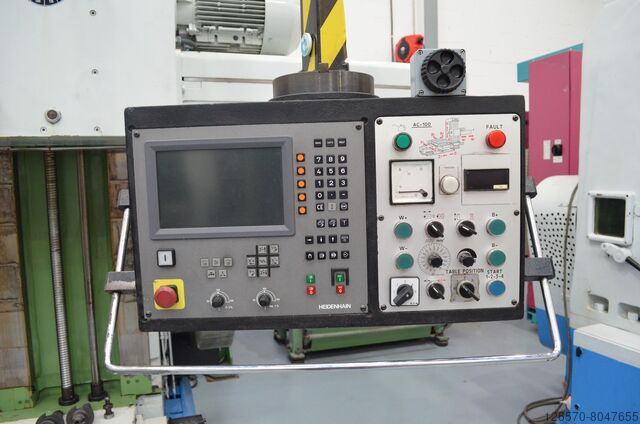

Numerical control: Heidenhain TNC124 with 4 axes (X, Y, Z, B)

Number of bench supports: 4 (K4)

OPTIONALS:

- Cnc Heidenhain

- Automatic positioning of the table rotation 4 x 90º.

- Vertical course 1200mm (Instead of 1000mm that the standard model has)

- Refrigeration equipment

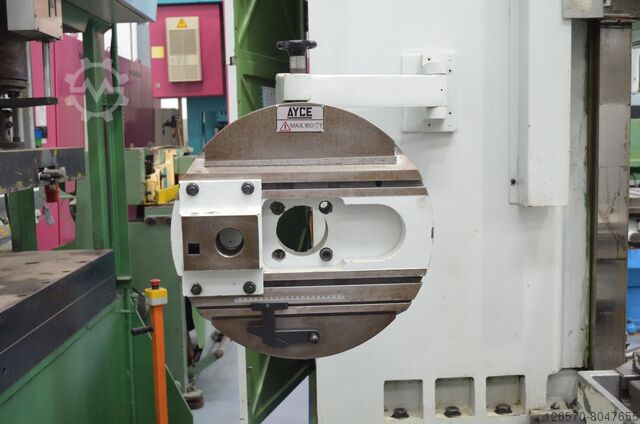

- Face plate and clamping arm

- Universal vertical apparatus, Huron type with hydraulic tool clamping

- Rest for vertical course of 1200mm

- Table rotation display 4th AXIS (B)

Principal axis:

- Shaft diameter: 100mm

- Inner cone: ISO 50 with quick tool clamping (Instead of Morse 5)

- Drill mounting diameter: 171.45mm

- Horizontal course of the main axis: 700mm

- Vertical course of the main axis: 1200mm

- Number of turning speeds: 18

- Speed range: 12-1200 rpm

- Maximum distance between plate and steady rest: 2250mm

Advances:

- Number of work advances in all directions: INFINITE

- Min/max value of work progress: 2 - 1500 mm/min.

- Rapid advances in carriages and head: 3000 mm/min.

- Rapid advance main axis: 1500 mm/min.

- Rapid table rotation advance: 600 degrees/min.

Rotary table:

- Turntable dimensions: 1100x1200mm

- Table longitudinal course without steady rest: 1500mm

- Curos longitudinal table with lunette: 1200mm

- Cross course: 1700mm

- Distance between axis/maximum table center without steady rest: 1975mm

- Distance between axis/maximum table center with steady rest: 1600mm

Automatic centralized greasing.

Hardened and rectified guide.

Telescopic guide protectors.

Ball screws in the 3 axes.

Automatic hydraulic locks in all movements.
