Line drilling machine

Ayen

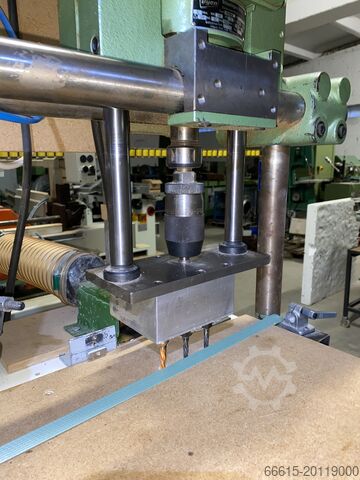

Condition: used, Used dowel drilling machine Ayen Type DB 1000-B23 for drilling operations in the production of dowel joints in woodworking. The machine features a working width of 720 mm, a maximum clearance of 820 mm and different drilling depths for vertical and horizontal machining. Fodpfszryr Ujx Akhjpk Technical data: - Working width: 720 mm - Max. clearance: 820 mm - Drilling depth, vertical: 45 mm - Drilling depth, horizontal: 120 mm

Condition: used, Year of construction: 1999, Machine number: 9114108 Weight (approx.): 150 kg Motor power: 0.71 / 1.26 kW Overhang – stand to drilling center: 600 mm Max. material height: 200 mm Table width: 1000 mm Number of drilling spindles: 4 Drill chuck: Screw-in thread Drilling depth limitation: Yes Drilling stroke: 70 mm Speeds: 1400 / 2800 rpm Workpiece clamp: Yes Drilling feed: Hand lever Working height or feed table height: 890 mm, with lighting Fpedpfxjzd Hntj Akhjk Storage location: Nattheim

Condition: used, Second-hand machine Features and technical specifications: - Universal dowel drilling machine for horizontal and vertical drilling - Working width 720 mm - with drilling beam, drive motor 3 PS, 2800 rpm - 23 drilling spindles, drilling pitch 32 mm - Pneumatic workpiece clamping via foot valve - 2 stop rails, 1000 mm - with chassis Fpsdpfszk N Atox Akhek Availability: at short notice Storage location: 63934 Röllbach

Condition: excellent (used), Ayen drilling units with Festo control system Fpedpfow I R Iaox Akhjk 4 drilling units, 1.5 kW, stroke 240 mm. 2 units with bevel gear as sawing units; individual sale possible.

Year of construction: 1992, condition: excellent (used), 23 spindles working width 720 mm vertical drilling depth 45 mm Fjdpfx Akjk Up Itehopk horizontal drilling depth 120 mm

Condition: ready for operation (used), Drilling machine Brand: Ayen Model: DB 1000 B23 Machine no.: 681642 Pneumatically controlled drilling machine. Fpodpfox Aplxex Akhjk The drill box can be replaced with other drills. Machine size: 120x80x205 cm (LxWxH) Weight: 275 kg Stock no.: 2001012 Technical data 23 spindles cc 32 mm Max opening: 820 mm Working width: 720 mm Drilling depth: Horizontal 120 mm, vertical 80 mm Mitre 90º-45º Motor: 2.2 kW, 50 Hz, 380 V, 2800 RPM, 3-phase

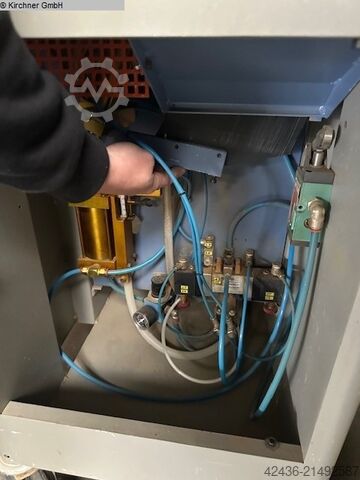

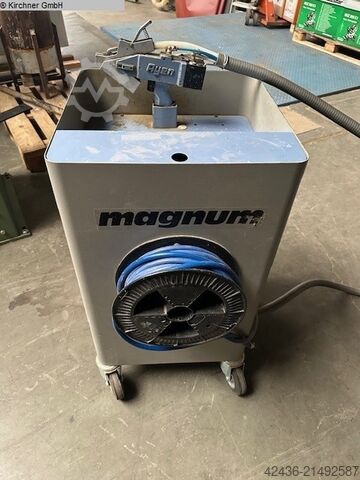

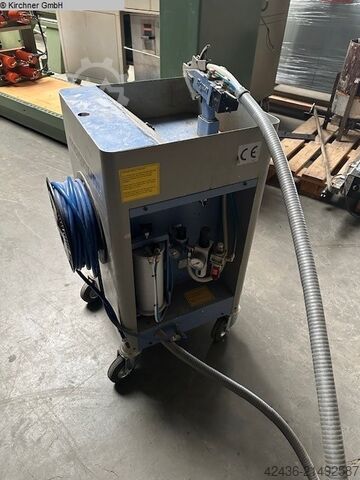

Condition: used, Year of construction: 2008, used, good condition with automatic length measuring device Manufacturer: Ayen Type: Magnum 8/10 V Year of manufacture: 2008 Machine No.: 0826788 Glue tank: 1.4 ltr. Dowel diameter: 8 x 10 mm Dowel length: 30-45 mm with glue indicator CE type-tested Glue gun mobile Space requirement approx. 480 x 480 x 900 mm Weight approx. 71 kg Fsdpfx Ajy A Tbgjkhopk Storage location: 97447 Gerolzhofen, free loaded, unpacked Delivery in as-inspected condition without warranty or guarantee

Condition: used, Year of construction: 1977, used manufactured by Ayen type DB 1000 K2 built in 1977 Mach.-No. 751212 Fodpfx Aksvwgagohjpk number of spindles 23 piece number of drilling beams 1 drilling from top tiltable pneumatic comb lowering pneumatic drill chuck D 10 mm clamp 3 piece grid 32 mm required space ca. l x w x h mm 1200 x 800 x 1600 weight ca. 370 kg total connected power 2,2  kW located in  97447 Gerolzhofen sale in current condition as seen - free on truck -

Year of construction: 1980, condition: excellent (used), 1 drilling beam 21 drill bits, grid system 32 mm max. travel range of the drilling beam min. 22 mm to max. 624 mm row spacing min. 125 mm, max. 603 mm (drilling line) Motor: 4.4 kW drilling stroke: 98 mm oil brake cylinder with a stroke of 70 mm operating pressure: approx. 6.0 bar air consumption: approx. 3 l/cycle travel range from min. 20 mm to max. 650 mm Weight: approx. 540 kg Dimensions: 2500 x 1100 x 1700 mm The machine will be refurbished and its functionality will be tested. Condition: very good. Fedefhn Iropfx Akhspk

Condition: ready for operation (used), functionality: fully functional, AYEN push-rod drilling unit electro-pneumatic push-rod drilling unit Fedpfxeqv Ey Uo Akhopk various types 2 units RPM 1C, 0.73 kW – €450 each 1 unit RPM 0.5C, 0.37 kW – €400
