Spindle moulder

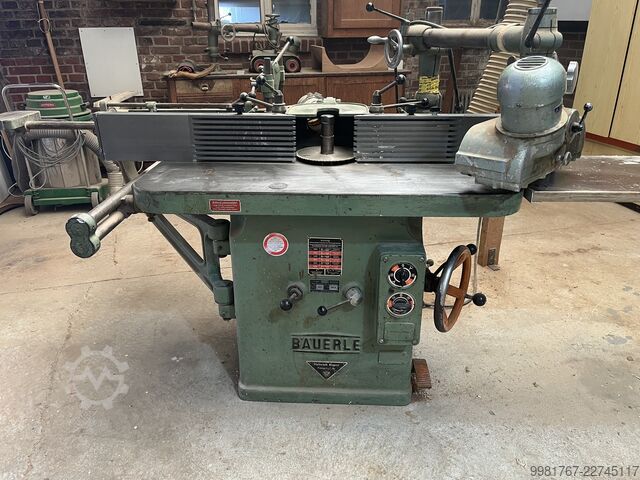

Bäuerle SFM

Condition: used, Year of construction: 1987, Used machine Year of manufacture: 1987 Condition: completely inspected by the workshop Table size 2000 x 880 mm (entire table in a cast construction) with extendable frame support Drive motor with pole change, 5/6 kW Spindle speeds 3000/4500/6000/9000 rpm Vertical adjustment of the milling spindle 110 mm Swivel angle of the milling spindle 45° Kdsdpfsz Dcp Dsx Akwot with Holz Her 3-roller feed mechanism Pictures show the machine in a condition prior to refurbishment. Availability: approximately 3-4 weeks after order receipt Location: Flörsheim

Condition: used, Year of construction: 1962, machine/vehicle number: 62/51 12, We are offering this used Bäuerle SFM table milling machine, manufactured in 1962, for sale. It is model no. 62/51 12. We are offering the machine for 1,700 euros net, negotiable. Kdsdpfx Aksz Afa Sjwjt If you have any questions or require further information, please feel free to send us a message or call us.

Condition: good (used), Year of construction: 1960, Make: Bäuerle, including integral fence and HolzHer power feed Model: SFM 2 Tilting range: 0 to 45° Brake Motor with 2 speeds/pole-changeable 6 speed settings: 1,800 - 4,500 - 5,600 - 6,000 - 9,000 - 12,000 rpm Forward/reverse rotation Table size: 1150 x 1200 mm Kedpfxey E T Ufe Akwodt Spindle diameter: 30 mm Milling fence Required space approx. 1200 x 1200 x 1300 mm Weight approx. 1000 kg Location: 54634 Bitburg, loaded free on truck, unpacked Delivery in current condition as inspected, function-tested without overhaul, without warranty or guarantee

Condition: used, Year of construction: 1992, Table dimensions 1100 x 880 mm Motor output 7,5 kW Spindle diameter 30 mm reus 3000/4500/6000/9000 U/min Kdsdezr Rq Ispfx Akwot Weight 650 kg Year 1992 Used Machine Year of manufacture: 1992 Features and technical specifications: - Universal table milling machine for machining wood, plastic, and light metals. - Interchangeable MK5 milling arbor, secured for left/right rotation - Special ball bearings for high-speed operation - Special ribbed table with quill and additional dust extraction under the table. - Locking mechanism for tool change in any spindle position - Digital height indicator with 1/10 mm resolution and zero setting (optional) - Maintenance-free and dust-protected bevel gear feed mechanism: 1 revolution = 1 mm, stroke 130 mm - Central lubrication of both bearings and the feed spindle - SFM 101 control panel - Speed displayed visually and automatically - With automatic brake - Extremely fast belt change with automatic speed display - Machine table dimensions: 1,100 × 880 mm - Working height (table): 900 mm - Motor power: 7.5 kW - Speeds (VBG 7 visual display): 3,000 / 4,500 / 6,000 / 9,000 rpm - Max. height adjustment of the milling spindle: 130 mm - Safety interlock for high speeds - Milling spindle taper: MK 5 - Milling spindle, interchangeable: Ø 30 mm - A-weighted sound pressure level at ear level: L(A) 75 dB - Connection diameter: 2x120 mm - Air velocity: 24 m/s - Air flow rate at table: 680 m³/h - Airflow rate at the router fence: 1,060 m³/h - Dimensions: approx. 140 x 100 x 175 cm - Weight: approx. 700 kg

Condition: used, A Bäuerle SFM-type rigid table router or rigid router for profiling and routing timber. Technical data: - Spindle diameter: 30 - Direction of rotation: Left and right - Motor: 3 kW Kedszryrbopfx Akwodt

Condition: used, A Bäuerle SFM-type rigid table router or rigid router for profiling and routing timber, fitted with a table extension and a feed mechanism. Technical data: Kjdpfx Akszryp Tswsdt - Spindle diameter: 30 - Clamping length: approx. 120 mm - Speed (milling cutter): 3,000/5,000/6,000/10,000 rpm - Direction of rotation: anti-clockwise and clockwise

Condition: used, used Cleaned, functionality tested, test run performed, partially refurbished 16 A cable installed Belt renewed Runout measured New wooden jaws attached Manufacturer: Bäuerle Type: SFM Motor: 4, 5.5 hp Motor: 2 speeds/pole-switchable 6 speed levels: 2800 / 4500 / 6000 / 5600 / 9000 / 12000 Foot brake Kdedpfx Aksy Ay Awowst Right-left rotation Spindle diameter: 30 + 40 mm Table size: 1100 x 900 mm Wooden stop jaws: new Belt: new Milling stop with fine adjustment Space requirement: approx. 1000 x 900 x 1000 mm Weight: approx. 600 kg Location: 97447 Gerolzhofen, free loading, unpacked Handover in the current condition as inspected, without warranty or guarantee.

Condition: reconditioned (used), Year of construction: 1966, machine/vehicle number: 662310, functionality: fully functional, Rated power at 380V: 3kW + 4kW Clockwise/counterclockwise rotation Kdsdpfxjiw D N De Akwst Star-delta switch 2800/4500/6000 RPM and 5600/9000/12000 RPM

Condition: used, used, good condition, low operating hours Machine thoroughly cleaned, lubricated Test run performed Spindle runout measured max. 0.1 mm Manufacturer: Bäuerle Model: SFM 2 Machine no.: B1533 tilt range from -5° to +45° mechanical brake 6 speed levels: 2800/4500/5600/9000/6000/12000 rpm forward/reverse rotation Table size: 1100 mm x 900 mm spindle diameter: 30 mm cast iron fence jaws milling fence with fine adjustment extraction port D 120 mm Kedpeycxg Hsfx Akwjdt required space approx. 1100 x 1100 x 1200 mm weight approx. 1000 kg Location: 97447 Gerolzhofen, loaded free on truck, unpacked Delivery in as-is condition as inspected, without guarantee or warranty

Condition: used, Used, excellent condition, including milling fence. Milling fence with fine adjustment, central adjustment via rack and pinion. Machine fully cleaned and lubricated, partially overhauled. Various parts replaced. Star-delta switch overhauled. Foot brake adjusted. Fence jaws replaced. Spindle runout checked: precise, only 0.01 mm tolerance. Brand: Bäuerle Model: SFM 2 Machine No.: 8719 Tilting range: 0 to 45° Ksdpoyt R Nusfx Akwsdt Brake Motor with 2 speeds/pole changeable 6 speed levels: 1,800 / 4,500 / 5,600 / 6,000 / 9,000 / 12,000 rpm Reversible direction of rotation Table size: 1150 x 1200 mm Spindle diameter: 30 mm Milling fence Required space: approx. 1200 x 1200 x 1300 mm Weight: approx. 1,000 kg Location: 97447 Gerolzhofen, loaded free of charge, unpacked Sold as seen, function tested. No overhaul, no warranty or guarantee.
