Electric dual-screw unit with automatic feed and pneumatic double stroke
BÖLLHOFF Type UVS-100-2-R-E

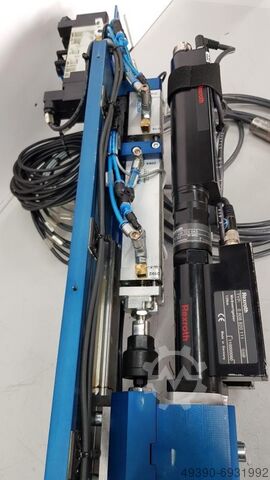

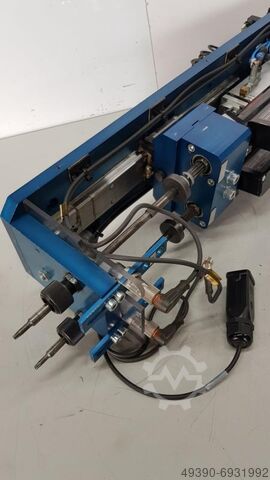

The Böllhoff Uniquick Vario UVS-100-2-R-E dual-screw unit has a pneumatic double stroke via Festo valves and cylinders.
In addition, various monitoring systems are installed for complete automation.

Technical data:
Torque of electric screwdriver: 0.6 Nm
Torque of gearbox: max. 10 Nm
Speed: max. 20,000 rpm
Rated voltage: 3~ 0-230 VAC
Current consumption: max. 7 A (per screwdriver)
Pneumatic long-stroke cylinder: 80 mm
Pneumatic short-stroke cylinder: 20 mm
Pneumatic total stroke: 100 mm
Screwdriver spring stroke: 20 mm
Distance between the two screwdriving tools: 73 mm
- equipped with a TORX bit T27 or TP27 (presumably for M6 screws)
- a Bosch Rexroth LT303 power module is required to operate the screwdriver. (Power module not included)

Screwdriver 1 and 2 each consist of the following components:
Rexroth Type Servo motor
Rexroth Type 0 Planetary gearbox
Rexroth Type 0 Encoder
Rexroth Type 0 Straight gear

Component details:
Electric screwdriver unit Rexroth
Servo motor Rexroth
Type: EC302 SZ3
Material number: 0
Torque: 0.6 Nm
Peak torque: 0.7 Nm
Speed: max. 20,000 rpm
Current consumption: max. 7 A
Rated voltage: 3~ 0-230 VAC
Weight: 0.8 kg

Gearbox unit Rexroth
Type: 3GE27 SZ3
Material No.: 0
Efficiency: 90%
Gear ratio: i=18.9
Torque: max. 10 Nm
Weight: 0.4 kg
Installation length 65.5 mm

Encoder Rexroth
Type: 2DMC012 SZ2
Material No.: 0
Rated torque: 12 Nm
Gear ratio: 1
Efficiency: 1
Weight: 0.55 kg
Installation length: 118.5 mm

Straight gear Rexroth
Type: 2GA82 SZ2 1/4"SQ
Material No.: 0
Spring travel: 20 mm
Spring force: 16 - 34 N
Laedohxvu Eepfx Amtsd
Tool holder: 1/4" square
Maximum torque: 10 Nm
Gear ratio: 1
Weight: 0.2 kg
Installation length: 90 mm

A motor connection cable of 7m is included.

Overall dimensions W x H x D: approx. 180 x 920 x 300 mm
Total weight: approx. 20 kg
good condition
