Repatriation

Barbaric RTS Compact

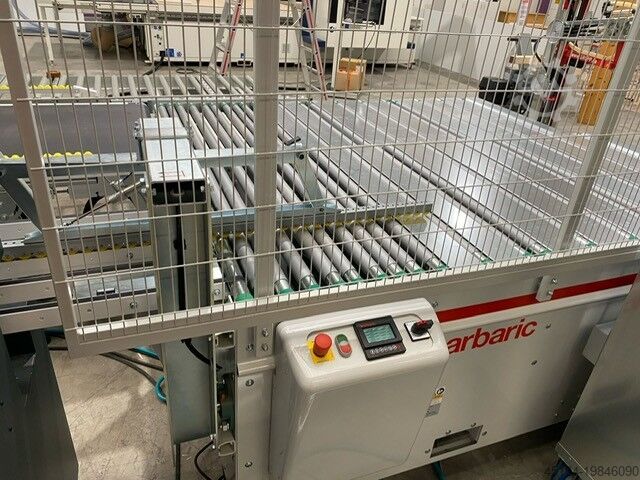

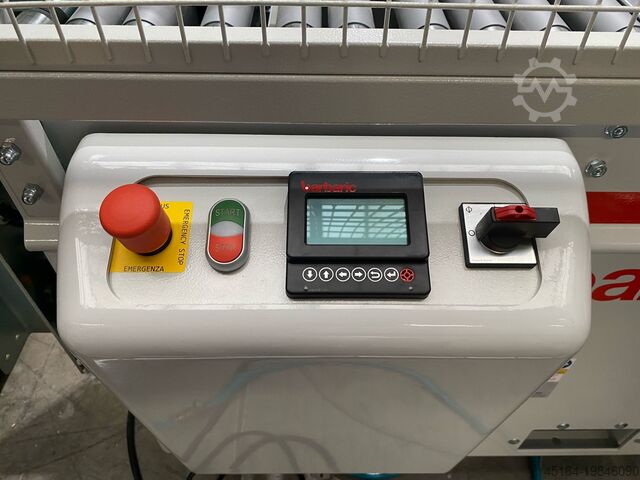

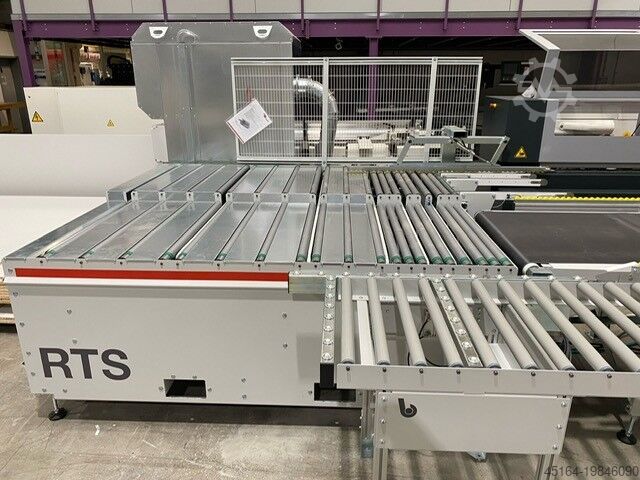

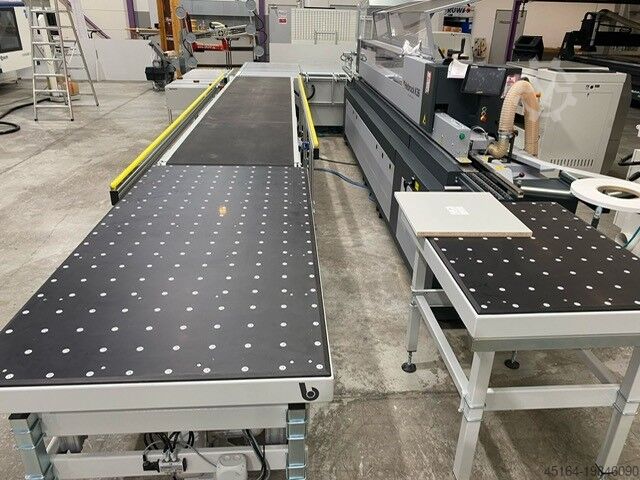

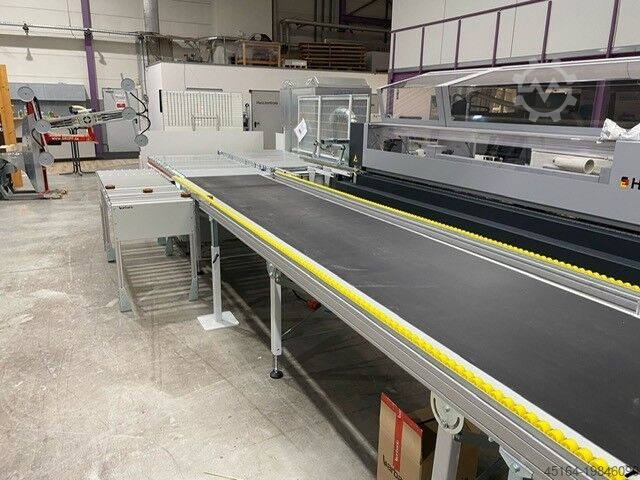

Exhibition machine return systemReturn system for edge banding machinesMax. part sizes: 2800 x 1300 mmMax. Part size for 4-sided edging: 1300 x 1300 mm (optional 2400 x 800 mm) Continuous feed from 7 - 20 m/min (optional 30 m/min) Adoption of the edge banding machine's forward stroke speed is possible (0 - 10 V) Electric drives with frequency converter and gear motor Pneumatic lifting function Workpiece detection via sensors Control unit with 3.2" display Height adjustable from 800 - 1000 mm Maximum weight: 60 kg Paint finish RAL 7035 Conveyor belt Conveyor belt for the return transport of the panels Speed of the return conveyor belt: 7-30 m/min Conveyor belt width: 800 mm Roller conveyor Slightly inclined adjustable roller conveyor with plastic rollers and stop for installation after the dryer as an outfeed station for the returned panels Conveyor belt width: 800 mm Variant 3 for left-hand running edge banding machine Incl. packaging A… Length of edge banding machine 4800mm – 5300mm B… Length of return conveyor belt 3000mm C… Length of roller conveyor 2500mm Roller track 1-lane with RTS Compact conveyor system extension. Addition of an additional free-standing roller track as well as a roller conveyor and lifting unit to support large parts. Using adjustable pivot points, the panels are rotated after transfer and returned almost straight via the return conveyor belt. Pneumatically controlled top pressure. Part lengths: 300 - 2400mm Part widths: 200 - 800mm Panel thickness: 8 - 35mm (panels must be inherently stable) These part sizes are recommended by Barbaric. Parts with deviating dimensions may not be functional and can cause problems. Increasing the panel length with end-face edging can lead to a risk of crushing on system components as well as on-site objects or hall columns. Ergonomics package RTS Compact Stk Ergonomics package RTS Compact consisting of a lifting table and measuring devices. Lifting table: 1960 x 960 mm. Dimensions of the blowing table: 960 x 760 mm. Steel construction with attached air cushion table with blowing nozzles for easy lifting. Table can be pneumatically lifted.
Csdow Sy Tmopfx Abwjhc
Storage location: Garbsen
