Drilling milling machine

Bauer Z30

Condition: excellent (used), Year of construction: 2007, geared motor -Speed: 19.5 rpm -Power: 0.37 kW -Brake: 24 V -Design: B5 -Shaft: Ø 30 x 60 mm -Protection class: IP 65 -Quantity: 4 available -Price: per piece Lsdpfx Akjb A H S Ioyerk -Dimensions: 665/200/H250 mm

Condition: used, Year of construction: 2018, functionality: fully functional, turning diameter: 1,000 mm, turning diameter over bed slide: 710 mm, turning length: 8,000 mm, Used heavy-duty lathe with extensive steady rest equipment – ideal for pipe machining and long rolls! This robust conventional lathe with an impressive turning length of 8,000 mm was specifically designed for pipe machining applications. The sophisticated machine design allows the cutting edge to easily pass the open steady rests – ideal for precise machining of long, hollow workpieces. Technical Highlights: • Turning diameter over bed: 1,000 mm • Turning diameter over support: 710 mm • Center height: 900 mm • Turning length: 8,000 mm • Spindle bore: 155 mm • Machine weight: approx. 18.2 tons • Main drive: 30 kW with frequency converter, continuously variable Design advantages: • Machine bed cast in one piece and artificially aged – for maximum stability and stress-free operation • 5 hardened and ground guideways for maximum precision • Continuous feed control of the longitudinal axis via ball screw – no Norton or lock-box gearing • Electric-driven tailstock with hydraulic clamping • Manually adjustable cross support with trapezoidal thread spindle • 4-station tool carrier, manually pivoting Ljdpfev Tnttjx Akyork • Triple-guided turning support – for extremely smooth running Steady rests & tube processing: • Various steady rests (stationary and follow-on) optional Available • Motorized steady rest carriers with hydraulic clamping • Spindle adjustment conveniently possible from the operator's side • Traveling steady rests can be mounted either on the left or right Application: Thanks to its sophisticated design, the machine is ideally suited for light to medium-duty machining – especially for the precise machining of tubes. The continuously variable speed and feed control ensures high flexibility and ease of use.

Condition: used, Gear motor, electric motor Ljdpfjdff I Ejx Akysrk -Speed: 9.7 rpm -Power: 0.37 kW -Construction: B5 -Brake: 24 V DC -Diameter shaft Ø 40 mm -Protection class: IP 65 -Number: 1x available -Dimensions: 690/300/H230 mm -Weight: 52 kg

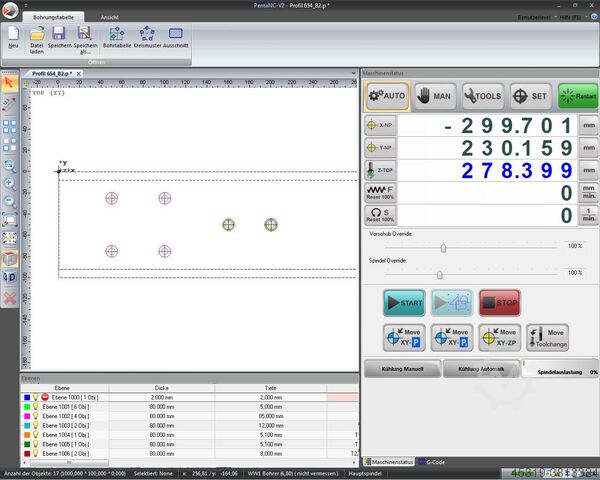

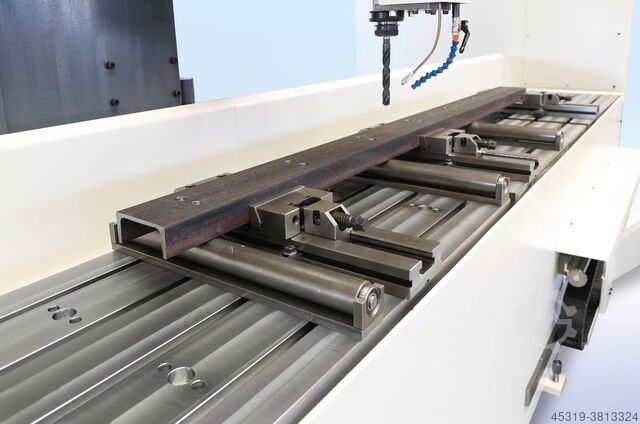

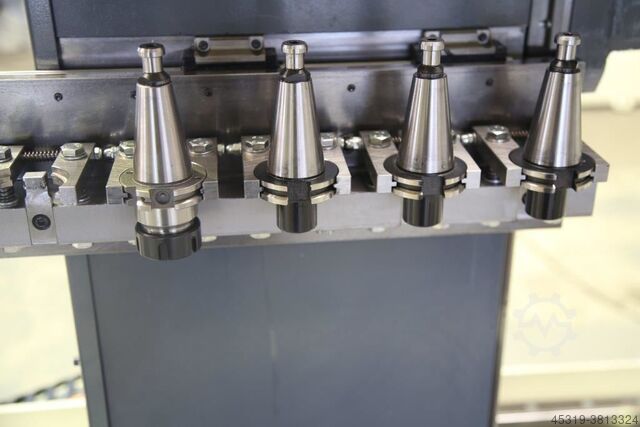

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 50 h, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 7 m/min, rapid traverse Z-axis: 7 m/min, table length: 3,000 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 7,500 W, number of slots in tool magazine: 10, Equipment: rotational speed infinitely variable, CNC drilling/milling machine with Mitsubishi CNC control, but with the BAUER user interface, no CNC knowledge is required. SK 40 tool holder, Automatic tool changer for 10 tools, Automatic tool length measurement, DXF and DSTV data import, Lodpfx Akowhftreyork Handwheel, Pendulum machining (but without light barrier protection), Light barrier on the operator side, Spindle motor 7.5 kW, Spindle speed 200-4000 rpm, 21.5" touchscreen, Additional office software license, Retractable protective hood

Condition: used, Year of construction: 1998, Technical details: Lsdpfxowwlt Rj Akyork turning diameter: 830 mm turning length: 4000 mm turning diameter over bed slide: 540 mm spindle bore: 130 mm turning speed range: 2 - 1600 U/min rapid speed: 4 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 55 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment *

Condition: used, Year of construction: 2005, 1 used crankshaft milling device in very good condition for mounting e.g. on a lathe for milling crankshafts or other milling work Make: SEMA, Origin Austria Model: SE 100 Year of manufacture: 2005 Technical data: Spindle holder ISO 50, concentricity / test mandrel L=300 mm = 0.01 mm Speed range, infinitely variable, currently set to 2,000 rpm Spindle is designed for up to 3,000 rpm Drive power currently 15 kW The milling spindle is designed for up to 25 kW Bearing diameter 110 mm The 2 screwed-on adapter plates under the milling spindle are each screwed on. These plates can be used for your lathe, reworked or may have to be newly manufactured. Screw-on surface of the milling spindle: L x W: 490 x 250 mm Accessories / special features: Milling spindle: - The milling spindle is mounted on the face support of your lathe - Infinitely variable speed adjustment, LENZE frequency converter, designed for up to 30 KW - Clockwise / counter-clockwise rotation - Lifetime lubricated spindle bearings - Sturdy construction with hardened and ground spindle - High precision - Spindle with 2 bearings and 5 spindle bearings - Tool tightening via a threaded spindle - Mobile carriage with control panel - Emergency stop - Lockable main switch Drive gear for the main spindle: - A long drive rod is mounted in the spindle bore and connected to the gearbox - Infinitely variable speed adjustment, LENZE frequency converter Lredpfxoddziye Akyjk - Clockwise / counterclockwise rotation - Jog mode Fast / slow The pictures show this unit mounted on a SARO SPA 10 x 3000 universal lathe for milling crankshafts. This lathe is not included in the scope of delivery! Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: good (used), Year of construction: 2002, machine/vehicle number: 21085, Offer 20439 Technical data: - Cutting capacity at 90° round: 380 mm - Flat: 550 x 380 mm - Hydraulically adjustable miter to the right/left: 30 / 45° - Digital dual-sided display of set angle - Cutting capacity at 45° round: 280 mm - Flat: 380 x 280 mm - Material support height approx.: 1050 mm - Saw blade dimensions: 4250 x 34 x 1.1 mm - Cutting speed continuously adjustable: 18 - 110 m/min - Hydraulic cutting pressure continuously adjustable: 0 - 10 m/min - Hydraulic saw blade tensioning - Hydraulic material vise - Minimum quantity coolant system - Total drive power: 400 V / 2.5 kW - Space requirement approx.: W 1350 x H 2450 x D 2300 mm Ledpfx Aow Advujkyork - Weight approx.: 1200 kg

Condition: used, Year of construction: 2022, turning diameter over bed 540 mm turning diameter over slide rest 340 mm turning diameter in the gap 800 mm length of gap 350 mm turning length 3000 mm turning speeds 40-1800 U/min bed width 340 mm 3-jaw chuck 255 mm spindle passage 52 mm No. 65 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity Lrjdpfx Asyq Sxxjkyek More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2010, Vertical metal band saw Manufacturer: Bauer Model: VG 450 L Year of manufacture: 2010 Cutting capacity: 90° round = 450 mm 90° flat = 450 x 620 mm 45° left = 450 x 420 mm 45° right = 450 x 390 mm 30° right = 450 x 250 mm Material feed height: 930 mm Saw band wheel Ø: 450 mm Saw band dimensions: 4,450 x 34 x 1.5 mm Cutting speed: 35, 70 m/min. Optional stepless adjustment Saw band guide: Deflection rollers + carbide jaws Material clamping: manual via handwheel + trapezoidal spindle Saw frame feed: hydraulic cutting pressure control Material feed: manual Spraying device Lredpsyfib Hofx Akyok Compressed air: min. 2 bar Designed for mitre cuts Saw motor: 2.2 kW Coolant pump: 0.1 kW Hydraulic pump: 0.37 kW Space requirements (L/W/H): 2,150 x 1,400 x 2,250 mm Weight approx. 900 kg Operating instructions ä16426

Condition: used, Year of construction: 1998, turning diameter 555 mm turning length 4000 mm control Monforts Control System type MTC-K CCUO turning diameter over slide rest 290 mm cross movement . mm spindle passage . mm turning speeds 1600 U/min transmission ratio . quill stroke . mm rapid traverse . m/min main drive motor . kW 3-jaw chuck Rotha-S Plus 3-jaw-chuck diameter . mm total power requirement . kW weight of the machine ca. . t dimensions of the machine ca. . m Serial number: 262/01 Lredeyqv N Ujpfx Akysk Machine number: Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
