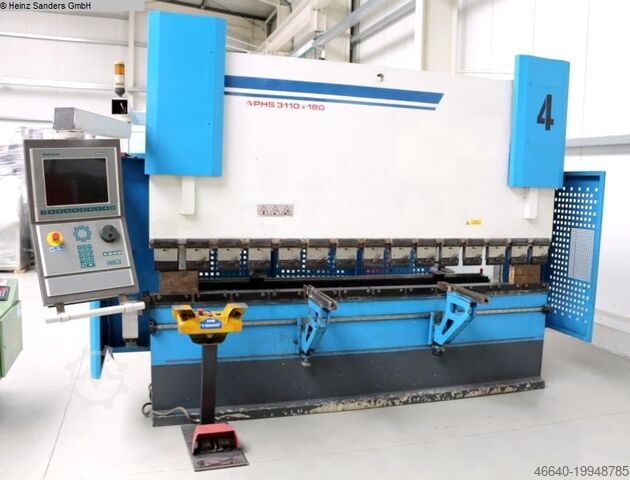

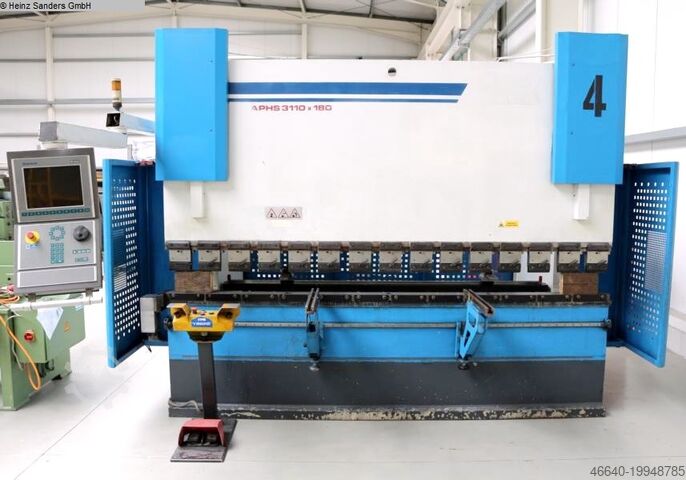

Hydr. pressbrake
BAYKAL APH-S 3110x180

Name: BAYKAL APH-S 3110x180
Brand: BAYKAL
Availability: InStock

Year of construction

2008

Condition

Used

Location

Ahaus

Show map

Machine data

Machine type:: Hydr. pressbrake

Manufacturer:: BAYKAL

Model:: APH-S 3110x180

Year of construction:: 2008

Condition:: used

Price & Location

Location:: Ahaus

Call

Details about the offer

Listing ID:: A199-48785

Reference number:: 1125-9308465

Update:: 08.09.2025

Description

pressure 180 t
chamfer lenght 3110 mm
distance between columns 2600 mm
column arm 410 mm
ajustment speed 100 mm/sec
working feed 10.0 mm/sec
return speed 80.0 mm/sec
back stop - adjustable max. 750 mm
stroke 260 mm
dayligth 460 mm
table height 880 mm
oil volume 210 ltr.
operating pressure max. 240 bar
control DELEM
total power requirement 15.0 kW
weight of the machine ca. 11.200 kg.
range L-W-H 4250 x 2000 x 2800 mm
Current new price approx. 85.000 euros
Special price on request

Features:
- Electro-hydraulic CNC press brake

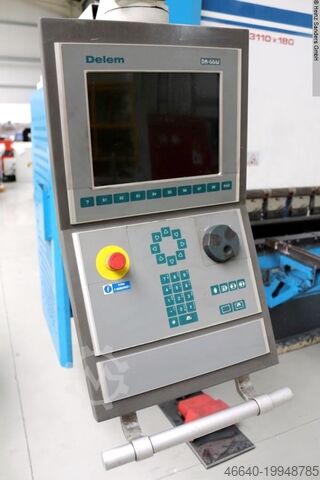

- With DELEM CNC control model “DA 66W”
* 2D graphic programming
* Automatic bend sequence calculation and collision detection
* High-quality LCD screen (TFT)
* Swivel control panel, front left
- CNC-controlled axes: Y1 + Y2 + X + R + CNC crowning
- CNC electric motor-driven backgauge (X axis)
* with 2x manually adjustable stop fingers
- CNC electric motor height adjustment of the backgauge (R axis)
Lrodpfx Aaexa Hivjqoh
- CNC electric motor table crowning
- ROLLERI upper tool adapter (quick-change clamping)
* including crowning device in the tool holder

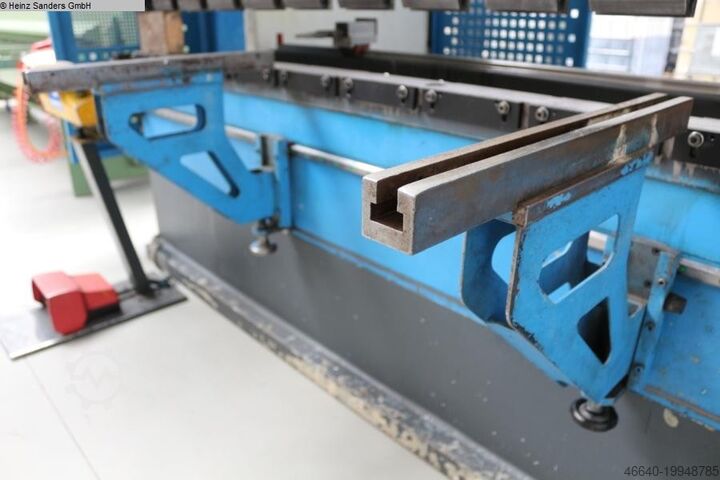

- 2x front, sliding support arms (“sliding” system)
- Side guard (swivel doors)
- Rear guard (sliding door)
- 1x freely movable 2-hand/foot control
- Operating instructions (PDF)
