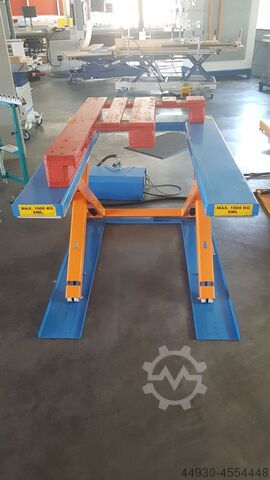

TUB 1000 X Lift table super flat U-shaped

Beck Maschinenbau GmbH TUB 1000X

Technical description with the following key data:

Load capacity: 1000 kg static load
Usable stroke: 895 mm
Overall height: 85 mm
Ppodpofm U Auofx Anpeu
Total height: 980 mm
Platform length: 1450 mm
Platform width: 1000 mm
Material: Smooth sheet metal
Lifting time: approx. 15 sec. for the full usable stroke
Lowering time: load-dependent
Electrical connection: 3 x 400 V / 50 Hz + protective earth, with 16 A CEE plug and 3 meters of cable
Motor: 1.1 kW, 1,400 rpm
Valve voltage: 24 V DC
Degree of protection: IP 54 generally, solenoid valve and switch IP 65
Unit placement: free-standing
Control box: Dead man's control including 2 m cable
Total weight: approx. 205 kg

Standard version:
The lifting tables comply with EN 1570 E and are marked with the CE symbol.
The steel parts are cleaned, primed with anti-rust paint, and coated with a two-component polyurethane paint.
The lifting tables are equipped as standard with all-round safety shut-off strips made of aluminum and with mounting supports for repair and servicing.
Our lifting tables are designed for approximately 10 lifting cycles per hour with full load, 8 hours per day. For more intensive operation, we offer special lifting tables.
Warranty: 1 year on parts for normal operation in one shift, excluding labor costs.

The listing was translated automatically. Translation errors are possible.
