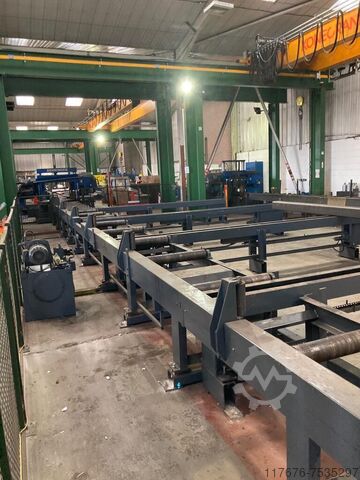

Double Column Horizontal Bandsaw Line

BEHRINGER HBP 360 -704G

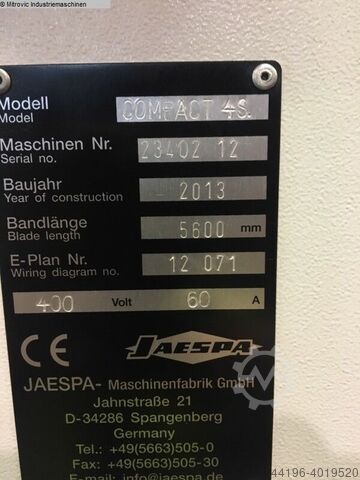

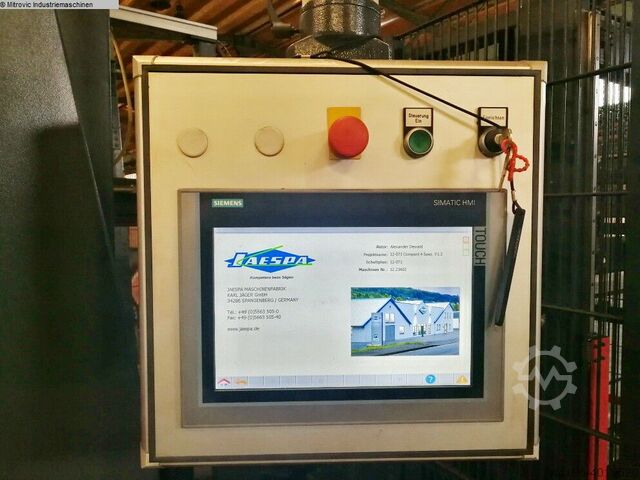

Year of construction: 2013, condition: used, cutting diameter 420 mm saw band length 41 x 5600 mm cutting width 1,3 mm Control Simatic S7 Touch band speed 17 - 110 m/min sawing motor 7,5 kW diameter of round bars 420 x 3000 mm diameter of round bars 300 x 6000 mm total power requirement 30 kW weight of the machine ca. 18,5 t dimensions of the machine ca. 12,5 x 5,0 x 2,5 m Gbedpfjd Izmaex Abpew CNC sawing machine with band saw JAESPA Compact 4S and round steel magazine and discharge gripper for sawing round bars from 50 - 420 mm and 6 pockets with a max. bar weight per pocket of 3400 kg. Cut-off lengths 20 - 1000 mm. As good as new condition, approx. 1,000 working hours.

Condition: used, Total power requirement 12 kW weight of the machine ca. 4,1 t dimensions of the machine ca. 3,1 x 5,9 m saw band length Gedpjv Aya Rofx Abpobw 6300 mm capacity 90 degrees: round 410 mm capacity 90 degrees: flat 620 x 400 mm capacity 45 degrees: flat 450 x 400 mm cutting range 30° flat 300 x 300 mm cutting speed 20 - 140 m/min feeding length 3000 mm Control unit NC Coolant Oil mist and not white water

Condition: used, Year of construction: 1993, machine/vehicle number: 493187, Lg. No. 21236 Godpfx Ajwqpmnsbpobw Hydraulic - twin-column guided miter - metal band saw Technical Data: - Cutting range at 90° Round 360 mm - Rectangle 600 x 360 mm - Cutting range at 45° Round 320 mm - Miter adjustment via handwheel - Saw band size 5400 x 38 x 1.3 mm - Cutting speed steplessly adjustable 19 - 130 m/min - Cutting pressure steplessly adjustable 0 - 10 m/min - Manual material clamping - Pre-selection of the stroke height of the saw band - Micro-spray coolant system - Total drive power 400 V / 8 kW - Space requirement ca. W 1800 x H 2000 x D 3250 mm - Weight approx. 2200 kg - Infeed + outfeed roller conveyors each approx. 6000 / 8000 mm

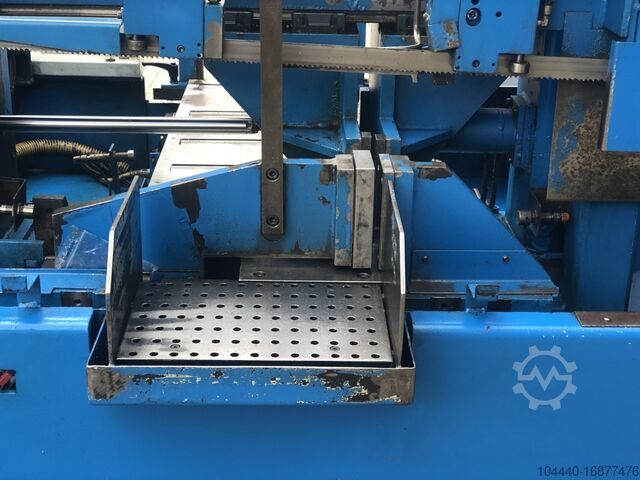

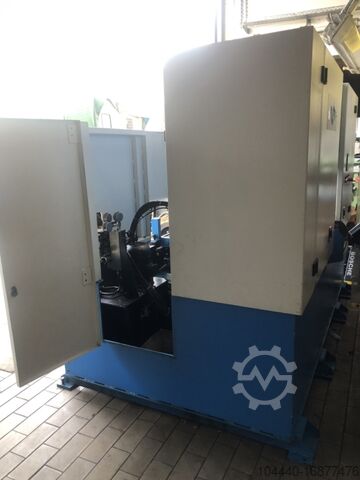

Condition: used, Year of construction: 2018, Horizontal bandsawing machine Make: JAESPA Model: Compact 2.8 Year of construction: 2018 TECHNICAL DETAILS: Automatic band saw - horizontal Cutting diameter 280 mm Saw blade length 5080 x 34 x 1.1 mm Cutting area flat 330 x 280 mm Cutting width 330 mm Gbjdpfsudb Sfjx Abpjw NC control Feed 460 mm Cut-off lengths 9999.9 mm Speed 15 - 120 m/min Machine weight approx. 2.3 t Dimensions approx. 3250 x 1580 x 2050 mm Column design for heavy-duty, industrial use o Intuitive NC control of the machine via PLC WAGO and 7" color touchscreen. Frequency-controlled, infinitely variable belt drive Saw arm with highly sensitive feed movement via servo motor and ball screw ball screw Backlash-free linear guides in both columns Hydraulic material clamping with long-stroke cylinder in front of and behind the saw blade saw band Clamping vice and lifting jaws open on both sides with infinitely adjustable clamping pressure clamping pressure Material feed via servo motor and ball screw drive in chain dimension the repeating operation is clocked. Unlimited material feed length Fully hydraulic saw blade tensioning Automatic saw blade guide arm adjustment Fully equipped with chip conveyor
