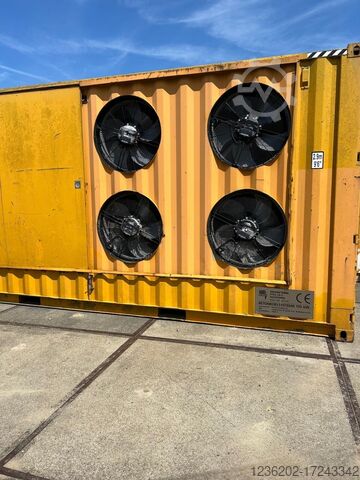

Container 20ft concrete cooling system 170KW

bendex

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: M2019011975, cooling capacity: 430 kW (584.64 HP), Carrier Chiller 30 RBP-430-0095-PE (AquaSnap Series) Type: Air-Cooled Liquid Chiller Model: 30RBP-430-0095-PE Variant: 30RBM/RBP Serial Number: M2019011975 Year of Manufacture & Test: 06/2019 Manufacturer: Carrier SCS, Montluel, France (United Technologies, Carrier Corporation, USA) Technical Specifications: Nominal Cooling Capacity: 430 kW Refrigerant: R-410A Circuit A: 23.50 kg / Circuit B: 26.70 kg Total Charge: 50.2 kg GWP: 2088 Compressors: Danfoss Scroll SH240A4ACE (thermally protected) Power Supply: 400 V / 3 Ph / 50 Hz Maximum Current Draw: 340 A Maximum Starting Current: 210 A Power Input: 210 kW Operating Temperature Range: –20 °C to +52 °C Net Weight: 2760 kg Protection Rating: IP54 Pressure Data Refrigerant: R-410A Allowable Pressure (Min/Max): High side (PS): –1.0 / 44.2 bar (–99.0 / 4420.0 kPa) Low side (PS): –1.0 / 31.1 bar (–99.0 / 3110.0 kPa) Safety Relief Valve Setting: 42 bar Rupture Disc Setting: 45 bar Test Pressure: 15.0 bar (unit leak test) Additional Information: Air-cooled design with axial fans and integrated condensers. Electrical control panel with Carrier management system. Hermetically sealed system, original Carrier service log included. Ltsdpfx Ajxb D Rasc Hoa Serviced and maintained by official Carrier service centre.

Condition: used, Year of construction: 2018, functionality: fully functional, machine/vehicle number: GLT135SHE -2200333157, cooling capacity: 354 kW (481.31 HP), type of input current: three-phase, type of cooling: water, overall weight: 4,428 kg, ambient temperature (max.): 46 °C, ambient temperature (min.): -20 °C, input voltage: 400 V, pressure: 3 bar, temperature: 7 °C, volume flow: 60.7 m³/h, pump pressure: 2.51 bar, total width: 2,190 mm, total length: 4,530 mm, total height: 2,425 mm, warranty duration: 3 months, Equipment: type plate available, Process Chiller / Air-cooled Chiller, Type: Galaxy GLT 135 SHE Manufacturer: MTA S.p.A. The Galaxy GLT 135 SHE units are compact air-cooled chillers designed for outdoor installation (operational from -20°C to +43°C). Features include a plate evaporator, scroll compressors, control and switch cabinet, compressor shut-off valves, equipment suitable for low ambient temperatures down to -20°C (EC fans), P2 pump, 510-liter buffer tank, electric frost protection heater, condenser filter mats including Victaulic couplings. Cooling capacity (kW): 354 Chilled water temperature out/in (°C): 7 / 12 Flow rate (m³/h): 60.7 Available pump pressure (bar): 2.51 Ambient temperature (°C): 32 Refrigeration circuit: Refrigerant: R 410A Number of refrigeration circuits: 2 Number of compressors: 6 Capacity steps (%): 0-17-33-50-67-83-100 Ledsxqnydopfx Ac Hota Electrical data: Voltage (V): 400, Frequency (Hz): 50, Phases: 3 Max. power input (kW): 167.7 Max. current (A): 273.3 Starting current per circuit (A): 421.8 Protection class: IP54 Dimensions: Length (mm): 4530, Width (mm): 2190, Height (mm): 2425 Weight (kg): 4428 Connection: Victaulic DN 125 Serial number: 2200333157 Year of manufacture: 2018 Condition: Cosmetically: 2, Technically: OK & tested Used Price: on request in EUR (plus VAT, ex works Nettetal) – 3 months warranty MTA offers, upon request, a functional test of the chiller together with the buyer prior to collection at the Nettetal branch. Used machines may have visual imperfections due to previous use. (Subject to technical changes and prior sale!)

Condition: used, Year of construction: 2004, functionality: fully functional, Bite here 4 pieces of fans with mounting plate and bracket. Lsdpfjk Dz Enex Ac Hjta These were installed in an EC 200HP from York. Price is per fan.

Condition: used, Year of construction: 2016, cooling capacity: 301 kW (409.25 HP), type of input current: three-phase, type of cooling: water, overall weight: 2,000 kg, volume flow: 359 m³/h, total width: 1,420 mm, total length: 5,400 mm, total height: 2,300 mm, Equipment: compressor, Industrial chiller for technology water GWK Sklc 260.1 Gas: R134a Year: 2016 Capacity: 301 kW Lodpox Dddrjfx Ac Hota Circular pump is not included.

Condition: used, Year of construction: 2014, functionality: fully functional, cooling capacity: 327.2 kW (444.87 HP), type of cooling: air, overall weight: 2,852 kg, total width: 2,300 mm, total length: 3,850 mm, total height: 2,450 mm, warranty duration: 6 months, Aircooled chiller TRANE CGAM120 327.2 KW Ltjdpfoxwa T Aox Ac Hoa Cooling capacity: 327.2 kW / 93.04 tons (12/7 — 35°C) Year of manufacture: 2014 Options: Hydraulic module. Refrigerant circuit: 2 pcs. Heat exchanger: Plate Condenser: Copper / Aluminum Compressors: 4 pcs. Danfoss CSHN374K0AK0 (scroll, soft starter) Type of refrigerant: R410а Number of fans: 6 pcs. (2 pcs. Frequency inverter) Hydraulic module: 1 pcs. water pump Wilo N180/160-11/2-N66 TRANE, expansion vessel. Dimensions: 3.85x2.3x2.45 m. Weight: 2852 kg. Working hours: 4718/4717/5460/5541 h. Condition: Good
