Drilling machine

Bernardo BF 45 HSV

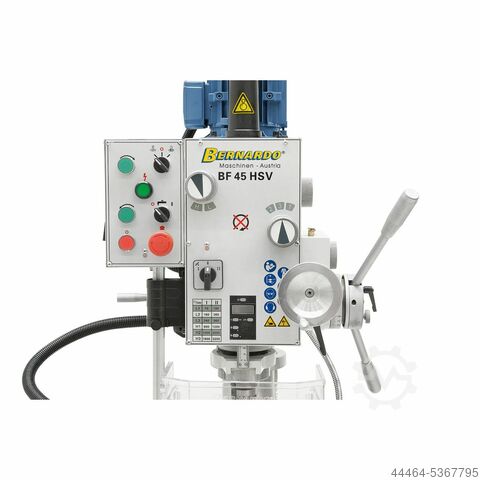

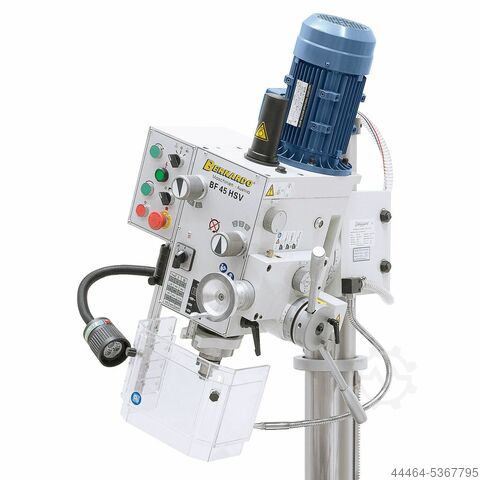

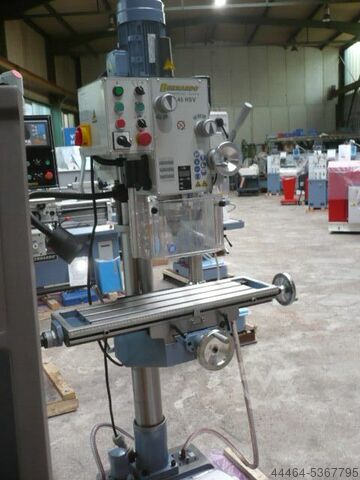

Bernardo BF 45 HSV Drilling and Milling Machine
Technical Specifications
Drilling capacity in steel: 32 mm
Drilling capacity in cast iron: 40 mm
Milling cutter arbor max.: 80 mm
Overhang: 280 mm
Spindle speed: (12) 75 – 3200 rpm
Spindle taper: MK 4
Quill stroke: 120 mm
Quill feed: (3) 0.10 / 0.18 / 0.26 mm/rev
Table size: 730 x 210 mm
T-slot size: 14 mm
Distance spindle / table max.: 640 mm
Distance spindle / base plate max.: 1190 mm
Travel (x / y): 495 / 200 mm
Milling head swivel: -90° to +90°
Height adjustment milling head: 260 mm
Laedpfjgd H Uxex Amtjd
Column diameter: 115 mm
Working area base plate: 365 x 375 mm
Motor output S1 100%: 1.1 / 1.5 kW (400 V)
Motor input S6 40%: 1.5 / 2.2 kW (400 V)
Machine dimensions (W x D x H): 1070 x 800 x 2060 mm
Weight approx.: 362 kg

Scope of supply
• Quick-change drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MK 4 / B 16
• Draw spindle M 16
• Reducing sleeve MK 4 / 3
• Combination milling arbor MK 4 / 27 mm
• Automatic quill feed
• Height-adjustable protective shield
• Digital quill stroke indicator
• Thread cutting device
• Coolant system
• LED machine light
• Longitudinal measuring scale
• Operating tool
