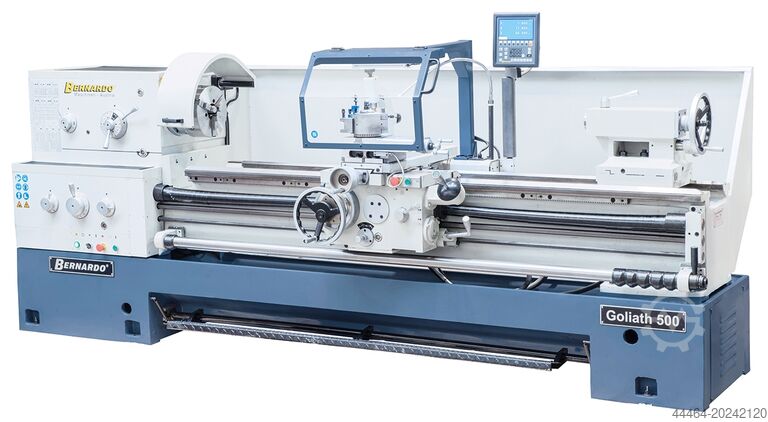

Lead/traction spindle latheBernardo
Goliath 500 x 1500
Machine data
Price & Location
- Location:
- Stahlwerkstrasse 4, 57555 Mudersbach, DE
Details about the offer
- Listing ID:
- A202-42120
- Update:
- 08.10.2025
Description
Technical Specifications
Centre distance: 1500 mm
Centre height: 250 mm
Swing diameter over bed: 500 mm
Swing diameter over gap*: 720 mm
Swing diameter over cross slide: 310 mm
Bed width: 400 mm
Spindle bore: 80 mm
Spindle mount: DIN 55029, D1-8
Speed range (24 steps): 9 – 1600 rpm
Longitudinal feed range (80 steps): 0.063 – 6.43 mm/rev
Cross feed range (80 steps): 0.027 – 2.73 mm/rev
Metric threads (46): 1 – 224 mm
Inch threads (44): 1/8 – 28 TPI
Quill diameter: 75 mm
Quill stroke: 150 mm
Quill taper: MT 5
Motor power: 7.5 kW (10.0 HP)
Machine dimensions (L x W x H): 3020 x 1240 x 1550 mm
Weight approx.: 3285 kg
* Removable gap bed section length: 200 mm
Features
• Versatile applications in general mechanical engineering, production, single-part manufacturing, etc.
• One-piece cast machine bed ensures maximum rigidity and minimal vibration, providing the essential prerequisite for precise turning
• Modern precision angular contact ball bearing spindle bearings

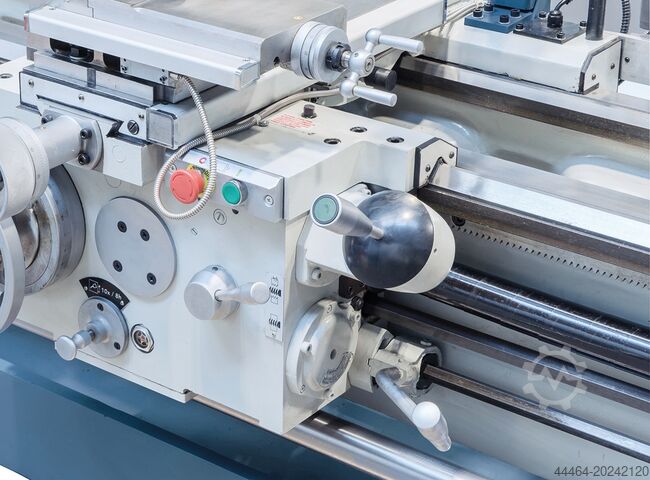

• Central, user-friendly feed and thread control, with lead and feed shafts
• Rapid traverse in longitudinal and cross directions as standard to reduce idle time
• Large-dimension, hardened and precision-ground gears
• Removable gap bridge allows machining of large-diameter workpieces
• Adjustable tailstock for taper turning, handwheel with fine graduation (0.02 mm)
• Electromechanical foot brake to minimise non-productive time
• Excellent cutting performance, even during facing operations
Scope of delivery
• Slip clutch
• Rapid traverse longitudinal and cross

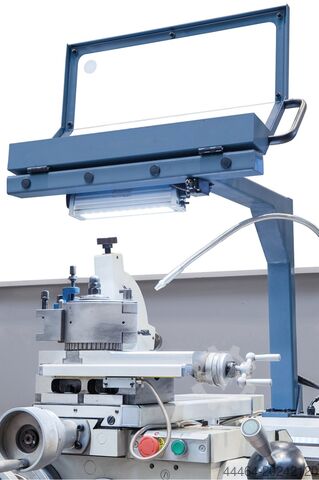

• LED machine lamp

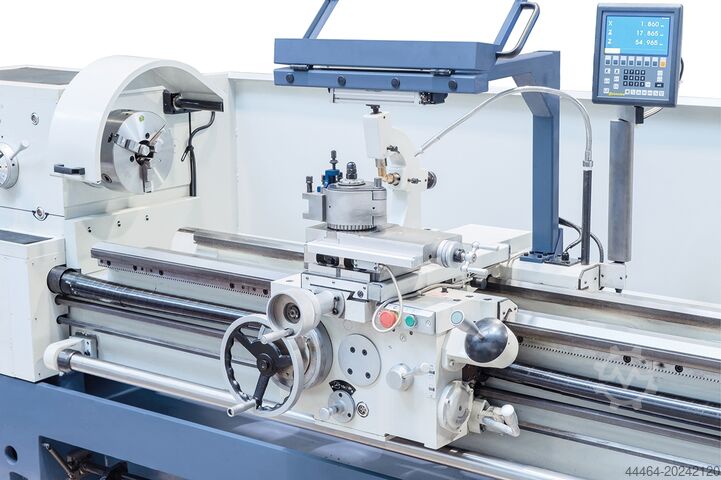

• 3-axis digital readout ES-12V with LCD display

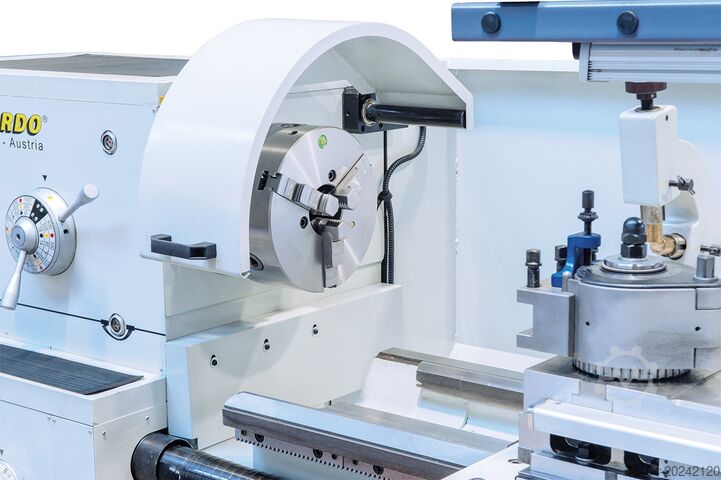

• 3-jaw chuck PS3-250 mm / D8

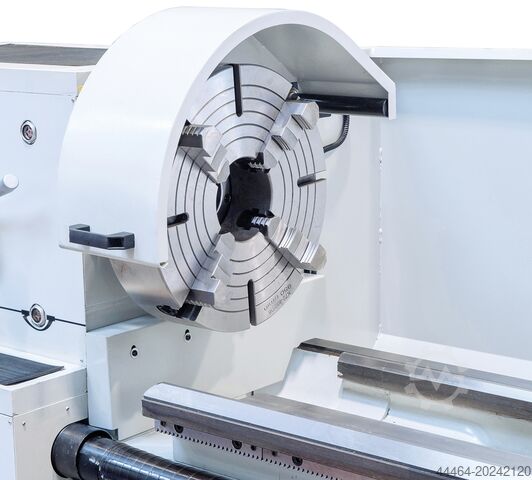

• Face plate 400 mm
• Fixed steady rest – max. through diameter 200 mm
• Follow rest – max. through diameter 110 mm
• 1 live centre / 1 revolving centre
• Motor with magnetic brake as per CE standards
• Foot pedal with brake function as per CE
• Initial fill with Shell Tellus 46
• Coolant system
Dkodpfxoxl D Ake Aghsu
• Quick-change tool post with 4 holders

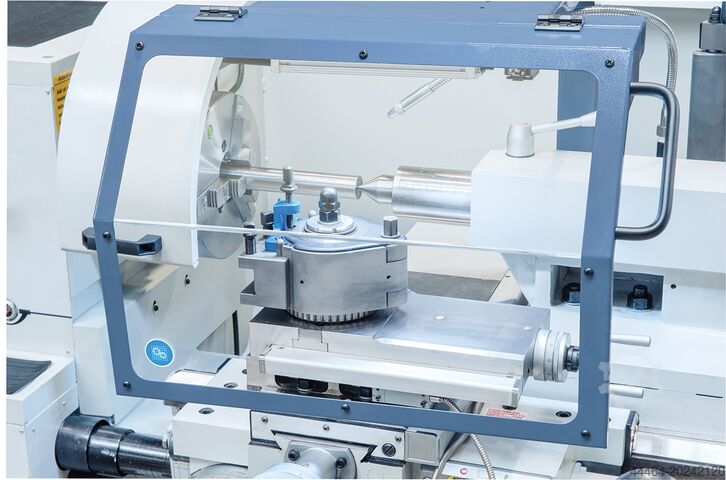

• Safety device for quick-change tool post
• Reducing sleeve
• Chip guard (rear)
• Operating tools
The listing was translated automatically. Translation errors are possible.
