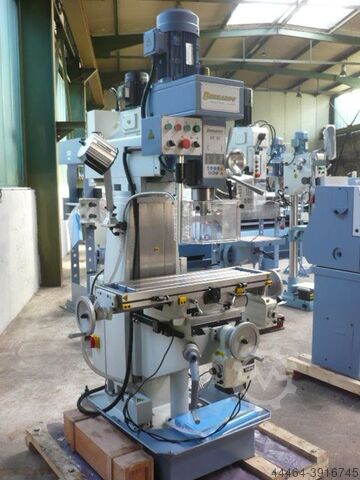

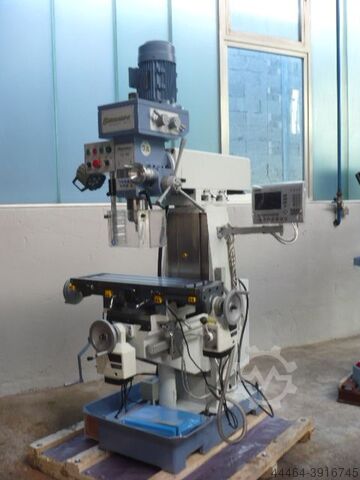

Drilling and milling machine

Bernardo KF 60

Bernardo Drilling and Milling Machine KF 60
including 3-axis digital readout and y-axis feed
Technical Specifications
Drilling capacity in steel: 35 mm
Drilling capacity in cast iron: 40 mm
Thread cutting up to max.: M 16
Overhang: 210 - 550 mm
Spindle head swivel range: 90°
Spindle speed: (8) 115 - 1750 rpm
Spindle mount: ISO 40
Quill stroke: 125 mm
Table size: 800 x 240 mm
T-slot size: 16 mm
Table tilt: -45° to +45°
Distance spindle / table: 120 - 375 mm
Travel in longitudinal direction (x): 375 mm
Travel in transverse direction (y): 175 mm
Travel in vertical direction (z): 255 mm
Motor output S1 100%: 0.85 / 1.5 kW
Motor input S6 40%: 1.1 / 2.2 kW
Machine dimensions (W x D x H): 1300 x 1400 x 2100 mm
Weight approx.: 750 kg
Scope of supply
• 3-axis digital readout i200 with LCD display
• Draw spindle M 16
• LED machine light
• Coolant system
• Adapter ISO 40/MK 3
• Adapter ISO 40/B18
Hnedpod Du Tlsfx Ahzsp
• Reducing sleeve MK 3/2
• Height-adjustable protective cover
• Automatic milling table feed in x-axis
• Automatic milling table feed in y-axis
