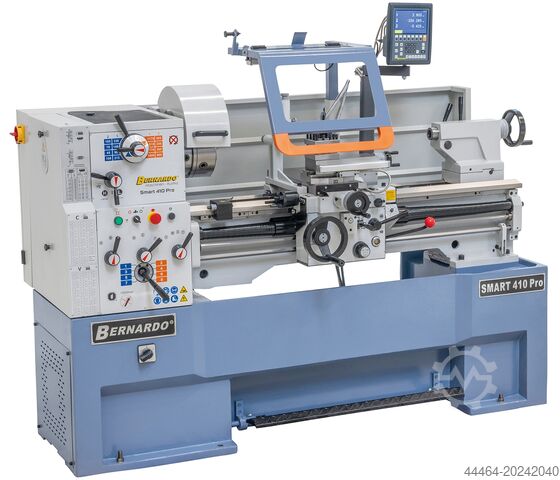

Lead/traction spindle latheBernardo
Smart 410 x 1000 Pro
Machine data
- Machine type:
- Lead/traction spindle lathe
- Manufacturer:
- Bernardo
- Model:
- Smart 410 x 1000 Pro
- Condition:
- new
Price & Location
- Location:
- Stahlwerkstrasse 4, 57555 Mudersbach, DE
Details about the offer
- Listing ID:
- A202-42040
- Update:
- 08.10.2025
Description
Technical Specifications
Distance between centers: 1000 mm
Center height: 210 mm
Swing over bed: 420 mm
Swing over gap: 580 mm
Swing over cross slide: 255 mm
Bed width: 250 mm
Spindle bore: 52 mm
Spindle mount: DIN 55029, D1 – 6
Spindle speed range (16): 45 – 1800 rpm
Longitudinal feed range (17): 0.05 – 1.7 mm/rev
Cross feed range (17): 0.025 – 0.85 mm/rev
Metric threads (42): 0.2 – 14 mm
Inch threads (45): 2 – 72 TPI
Quill diameter: 50 mm
Quill travel: 140 mm
Quill taper: MK 4
Motor power: 3.0 / 4.5 kW
Machine dimensions (L x W x H): 2070 x 900 x 1600 mm
Weight approx.: 1220 kg
Features
• Prism bed made of grey cast iron, induction-hardened and precision-ground
• Electromechanical foot brake for reducing non-productive times
Dcodexl Dx Eopfx Acwjn

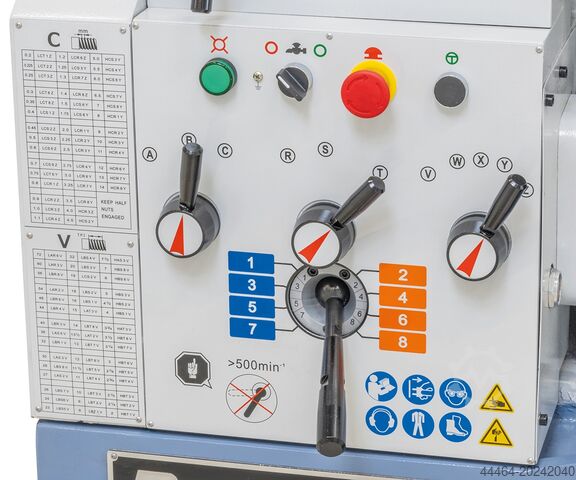

• Central, user-friendly control for feeds and threading with leadscrew and feed rod
• Modern main spindle bearings with precision angular contact ball bearings
• Large-dimensioned, hardened and precision-ground gears
• Hardened and ground gears and shafts, including in the feed gear box

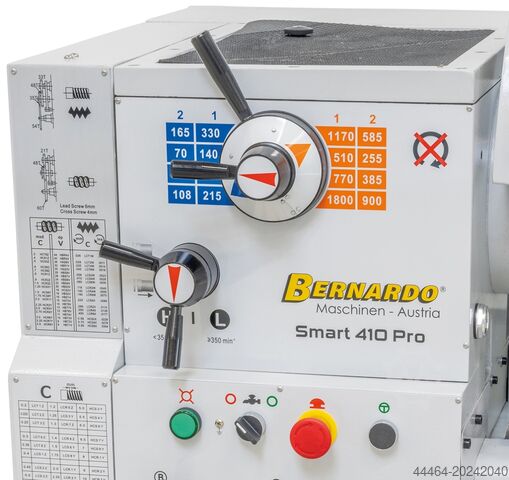

• Speed and feed settings are straightforward, smooth, and precise to operate
• Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm)
• Removable gap bridge allows machining of large-diameter workpieces
Scope of Delivery
• Prism bed made of grey cast iron, induction-hardened and precision-ground
• Electromechanical foot brake for reducing non-productive times
• Central, user-friendly control for feeds and threading with leadscrew and feed rod
• Modern main spindle bearings with precision angular contact ball bearings
• Large-dimensioned, hardened and precision-ground gears
• Hardened and ground gears and shafts, including in the feed gear box
• Speed and feed settings are straightforward, smooth, and precise to operate
• Adjustable tailstock for taper turning, handwheel with adjustable fine scale (0.02 mm)
• Removable gap bridge allows machining of large-diameter workpieces
The listing was translated automatically. Translation errors are possible.
