Lathe

Bernardo Standard 165 D

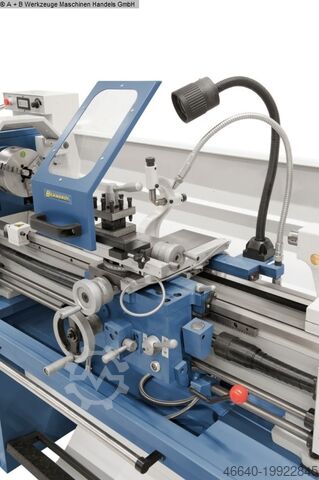

Bernardo Standard 165 D Lead and Feed Lathe
Technical Specifications
Distance between centers: 1000 mm
Distance between centers over bed: 350 mm
Distance between centers over cross slide*: 450 mm
Distance between centers over compound slide: 190 mm
Bed width: 180 mm
Spindle bore: 40 mm
Spindle mount: DIN 55029, D1-4
Speed range: (8) 70 - 2000 rpm
Range of longitudinal feeds: (40) 0.053 - 1.29 mm/rev
Range of cross feeds: (40) 0.013 - 0.31 mm/rev
Metric threads: (32) 0.4 - 7 mm
Inch threads: (36) 4 - 60 TPI
Tailstock travel: 110 mm
Tailstock mount: MK 3
Motor output power: S1 100% 1.5 kW (400 V)
Motor input power: S6 40% 2.2 kW (400 V)
Machine dimensions (W x D x H): 1730 x 700 x 1340 mm
Weight approx.: 514 kg
* Bed length can be extended
Scope of delivery
• 3-axis digital display i200 with LCD
• 3-jaw chuck DK11-160 mm / D4
• Faceplate 200 mm / D4, according to DIN 55029
• Fixed steady rest – bore diam. max. 60 mm
• Follow rest – bore diam. max. 60 mm
• Clamping plate 250 mm
• Four-way tool holder
• Shaft locking device
• Protective device for tool holder
• Slip clutch
• Micrometer length stop
• Coolant system
• Extendable chip tray
• Motor with magnetic brake according to CE standard
• Foot pedal with braking function according to CE
• Splash guard
• Threading dial
• LED machine light
• Reducing sleeve
• Change gears
• 2 centering points
• Base frame
Godpfxed Ri Eze Aixoka
• Operating tools
