Band saw

BFS Super Trad 301 Dual Mode

Manual high-performance metal bandsaw with selectable manual or hydraulic saw frame lowering. In autonomous mode, the lowering speed is continuously adjustable via the “Push&Pull” controller. By pulling the controller, the frame maintains the previously selected speed, removing the need to reset it for the next cut.

Standard Features:
- Saw frame made of a robust cast construction

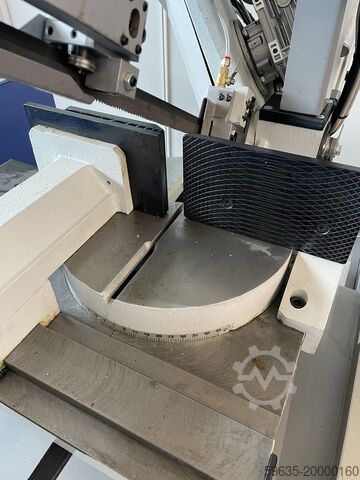

- Heavy-duty round table with cutting channel for mitre cuts from 0°–60° to the right and 0°–45° to the left
- Movable vise with adjustable guide rails and quick-release lever for repeat cuts
- Oil-bath reduction gearbox with bronze gear and hardened, ground steel worm
- Electric coolant pump for band lubrication and cooling
- Mechanical bandsaw blade tensioning with electrical blade tension monitoring
- Precise blade guidance via adjustable, ground carbide plates and ball bearings
- "Push&Pull" controller for adjusting the lowering speed
- Rotating swarf removal brush
- Precision angle scale for angles from 60° right to 45° left
- Control panel with ready-to-operate indicator, main/speed selector switch, and switch for manual or autonomous lowering mode
- Emergency stop button at knee height for optimal accessibility
- Microswitch in the handle for starting motor and pump (dead-man function in manual mode)
- Safety switch on the saw frame guard and blade tensioning carriage
- Limit switch for automatic motor shutoff after cutting
- Length stop for repeat cuts
- Material support on the infeed side
- Bi-metal saw blade
- Tools and user manual

Technical Data:
- Pole-changeable 400 V three-phase motor, 1.1/1.5 kW
- 2 cutting speeds (33/66 m/min)
- Vise clamping width: 305 mm
- Working height: 940 mm
- Saw blade dimensions: 2750x27x0.9 mm
- Weight: 380 kg

Cutting capacity in mm:

90° 255 250x250 300x200
45° R 190 180x180 190x170
Csdpfx Asxcnqasbwjhc
60° R 110 110x110 150x110
45° L 160 140x140 170x120
