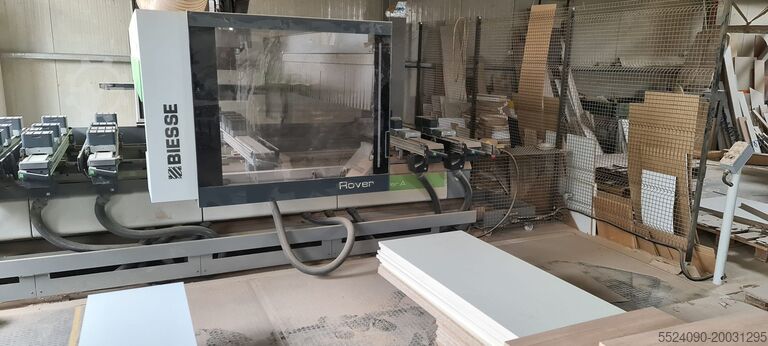

CNC Biesse Rover A 1632 - 5 AXES

BIESSE Rover A1632 5 AXE

Condition: used, Year of construction: 2010, turning length: 1,495 mm, spindle speed (min.): 35 rpm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 1,545 mm, workpiece weight (max.): 300 kg, total height: 2,577 mm, total length: 5,088 mm, total width: 2,450 mm, spindle nose: A2-6, spindle diameter: 660 mm, Equipment: documentation/manual, CNC Control Mazatrol Matrix Turning diameter 660 / 260 mm Turning length 1495 mm Spindle bore diameter 65 mm Spindle nose A2-6 Spindle nose sub spindle A2-6 Turning speed spindle 35 - 5.000 R/min Turning speed sub spindle 35 - 5.500 R/min Milling head speed 15 - 21.500 R/min Movement X-axis 580 mm Movement Y-axis 160 mm Movement Z-axis 1.545 mm B-axis travel 225° C-axis indexing 0,0001 (360) ° Pgjdpfx Aijzqt Umjrot Tool taper Capto C6 Tools in tool magazine 120 Barfeeder Irco-Breuning ILS-MUK If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2013, power: 17.1 kW (23.25 HP), input voltage: 400 V, input current: 29 A, input frequency: 50 Hz, travel distance X-axis: 4,320 mm, travel distance Y-axis: 1,326 mm, travel distance Z-axis: 170 mm, number of axes: 5, number of slots in tool magazine: 33, Equipment: CE marking, Biesse Rover A 1343 CNC machining centre 5-Axis Description Rover A ATS CNC Machining Centers Working ranges X = 4,320 mm; Y = 1. 326 mm;Z = 170 mm Waste conveyor belt Automatic lubrication system Remote console 1 x 250 m3/h vacuum pump for standard system Auxiliary vacuum system for double working area machine Multi-zone 8 bars and 24 cups with automatic positioning (ATS-EPS X-Y) 8 reference stops with 115 mm rear stroke 8 front reference stops with 140 mm stroke positioned at a height of 1190 mm from the rear stops 4 side stops, with 140 mm stroke (2 right + 2 left) with implant 2 additional side stops, with 140 mm stroke (1 right + 1 left) Pneumatic system for panel lift Coolant control unit to replace the heat exchanger supplied with 13kW 5-axis units. Pgjdpfx Asy U Naieirjt Operating unit 5 interpolating axes 13 kW (17.4 Hp), HSK F63 connection, liquid-cooled. BiesseWorks Advanced Machine Chain tool magazine with 33 places - centre distance 120 mm (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Trotz größter Sorgfalt bleiben Änderungen, Irrtümer bei technischen Daten, Preisen und allen Angaben (Tipp-)Fehler vorbehalten. Keine Gewähr auf gedruckte Daten! Verfügbarkeit vorbehaltlich Zwischenverkauf). Prices excl. advertisement cost MachineSeeker / Preise exkl. Inserierungskosten MaschinenSucher Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Podotu U Ebjpfx Airegt

Condition: excellent (used), Year of construction: 2005, Vertical blockmold: KURTZ mod. MFV (4920 x 1274/1000 x 1240mm) Basic data: -Year of manufacture: 2005 -Block dimensions (HxWxL): 4920 x 1274/1000 x 1240mm -Operating voltage: 3×400 V, 50 Hz -Power consumption: 77 kW -Blockmold with movable side wall -Complete vacuum system (GARDNER DENVER / SIEMENS) -Hydraulic system: REXROTH–BOSCH -Operational pre-loading silo for the blockmold with dedusting system -Siemens PLC controller and Siemens touch-screen HMI control panel replaced with NEW units in 2019, including a control software upgrade -Siemens TOUCH SCREEN panel (replaced with a NEW one with a larger display) -MATTHEWS printer for block labeling/date marking Pgjdpfx Aioucvq Hjrot -Block evacuation system with block storage -Complete set of documentation -Condition: EXCELLENT It is possible to adjust the maximum block height to, for example, 4550–4600 mm. TAG: Block mold, block mould, block-form, styrofoam, EPS, VIRO, Kurtz, Erlenbach, EREMA, Teubert, Lauscha, Autefa, HIRSCH, EPPINGER, Mert Makina

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Pedpfx Aieh T Dzqjrogt Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] Pgjdeuhaycjpfx Airst - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Pgedotk It Sepfx Airst Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, TECHNICAL DETAILS - center height : 100 [mm] - Distance between centers : 650 [mm] - Max. table orientation : [°] - Travel : 650 [mm] - Speed : 100 - 3500 [mm/min] GRINDING WHEEL HOLDER HEADSTOCK - Orientation : [°] - T1 grinding wheel dimensions : 350 x 32 x 127 [mm] - Power : 3 [kW] - Speed : 1600 - 2200 [rpm] - Peripheral speed : [m/s] PART-HOLDER HEADSTOCK - Spindle speeds : - 1200 [rpm] - Power : 0.5 [kW] - Type of cone : CM4 - Max. part weight : 20 [kg] - Orientation : 0 - 90 [°] POWER SUPPLY - Supply voltage : 400 [V] - Power : 8 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 00 x 00 [mm] - Machine height : 1650 [mm] - Machine weight : 1900 [kg] MACHINE HOURS - Number of hours under power : 01 [h] EQUIPMENT - Sony LG20-2 display - Automatic contact detection : SENSITRON 6 - 1 tailstock with fine adjustment - 1 internal grinding spindle Pgsdsyn R I Hopfx Airet - Fixed dressing device - Coolant tank - 1 three-key steady rest

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Pgedjqmi Irspfx Airot Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling Pgodpshknbrjfx Airet - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.
