5 Axis CNC Routers

BIESSE ROVER C 9.50

Condition: used, Year of construction: 2014, total height: 2,800 mm, total length: 6,900 mm, total width: 2,800 mm, Empty weight: 6.100 kg Price: On request - Details: - └ Description: Needs repair to B-axis and leaks to seals - Year: 2014 - Documentation available: No - CE certificate present: No - Serial number: 10333 - Number of milling spindles [pcs.]: 2 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - └ Milling spindle 2: - - Number of controlled axes [pcs.]: 3 - Type milling table: Beam table - Tool clamping system: HSK-F63 - Material clamp system: Pneumatic - Drilling unit present: Yes - Tool changer positions [pcs.]: 45 - Safety feature: Safety mat, Enclosed fence, Door interlock switches - Vacuum pump present: Yes - └ Number [pcs.]: 2 - └ Brand: Becker - └ Type: Vtlf 2.250 - └ Year of manufacture: 2011 - └ Main motor power [kW]: 5.5 - └ Capacity [m³/h]: 244 - └ Connection diameter [mm]: 60 - └ Vacuum pressure [bar]: 200 - └ Oil free: Yes - Tools included: Yes - CNC documentation available: User keys/licenses, USB stick - Table length [mm]: 4800 - Table width [mm]: 1500 - Voltage [V]: 400 - Current consumption [A]: 39 Dkedpfx Asyr Rnuodgsi - Fuse [A]: 63 - Power [kW]: 22.8 - Transport dimensions: 6900mm x 2800mm x 2800mm (l x w x h) - Transport weight [kg]: 6100kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, machine/vehicle number: 008377, X axis working area: 3390 mm Y axis working area: 1535 mm Dkedpfox Swb Aex Adgji Working Table: Pod and Rail Main Electrospindle power: 13 KW Number of controlled axes: 4 axes Total number of drilling spindles: 32 Total number of tool changer positions: 10

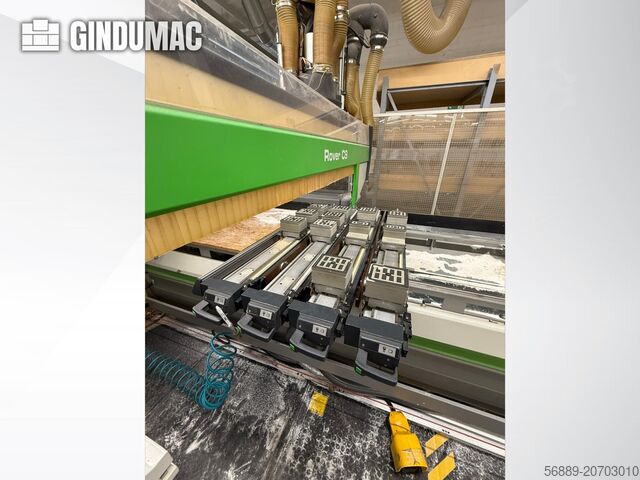

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 4,600 mm, travel distance Y-axis: 1,935 mm, travel distance Z-axis: 275 mm, number of axes: 5, This 5-axis Biesse Rover C9.50 was manufactured in 2007. It features a large working area (X=4600 mm, Y=1935 mm, Z=275 mm), an automatic lubrication system, and a control unit for 5-axis interpolation. The machine includes a vacuum system, a conveyor belt for chip removal, and a liquid cooling unit. If you are looking to get high-quality CNC machining capabilities, consider the Biesse Rover C9.50 machine we have for sale. Contact us for more information. Worktable and clamping • 8 ATS plate holders (L = 1525 mm) and 24 slide rails • Automatic positioning of plate holders and slide rails (EPS X-Y) • Pneumatic locking system, divided into 2 working areas in X • 8 rear reference stops, stroke 115 mm • 8 stops, stroke 140 mm, positioned at 1175 mm (L = 1280 / 1525 / 1800 mm) • 8 stops, stroke 140 mm, positioned at 770 mm (L = 1280 / 1525 / 1800 mm) • 4 side stops, stroke 140 mm (2 left + 2 right), with pneumatic system • 4 removable center stops, stroke 140 mm (2 left + 2 right), with pneumatic system • Sensor for detecting lowered stops • Pneumatic system for lifting bar holders • 6 lifting bar holders for easy loading (H = 74 mm modules)Vacuum • Vacuum system for a 250 m3/h pump • 250 m3/h rotary vane vacuum pump for standard vacuum systemMachining units and configuration • Composition C3-A1: • Device for mounting chip deflectors with pneumatic or inductive sensors on a 5-axis machining unit • Flange for mounting units on a work unit with 5 interpolating axes (units usable only when the electric spindle is vertical) • Composition C3-P2: • Additional Z slide for rear work units, controlled by an independent Z axis • BH 42 L drilling head • Chain tool changer with 22 positions (180 mm center distance) • Iron gripper for chip deflector with pneumatic or inductive sensor, positioned in the chain tool changer • RH chip deflector with inductive sensor for standard electric spindle or 15 kW 5-axis electric spindle (requires device for chip deflector; requires flange for mounting units when using a 5-axis electric spindle; requires C-axis when using a standard electric spindle)Systems • Automatic lubrication system • Control unit with 5 interpolating axes Dkodpfx Adex D H Hcjgoi Additional equipment • Conveyor belt for removing chips and scrap pieces (chip conveyor) • Liquid cooling unit for liquid-cooled systems (can cool two electric spindles, or one electric spindle plus one liquid-cooled drilling head)Note: The technical data and descriptions are taken from the original order confirmation and are for information only; they are not binding.
