Cutting Lines

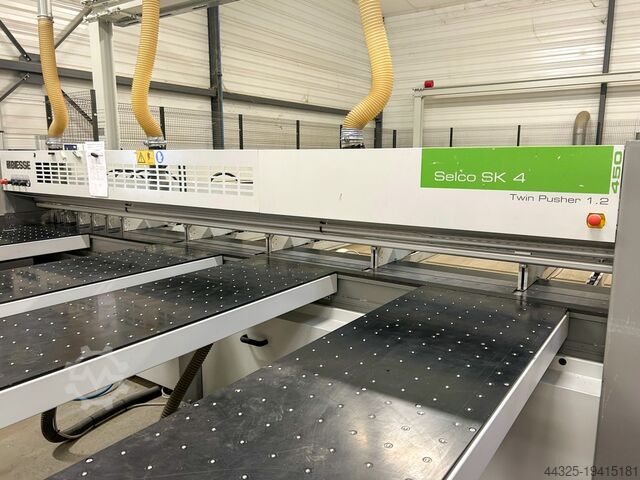

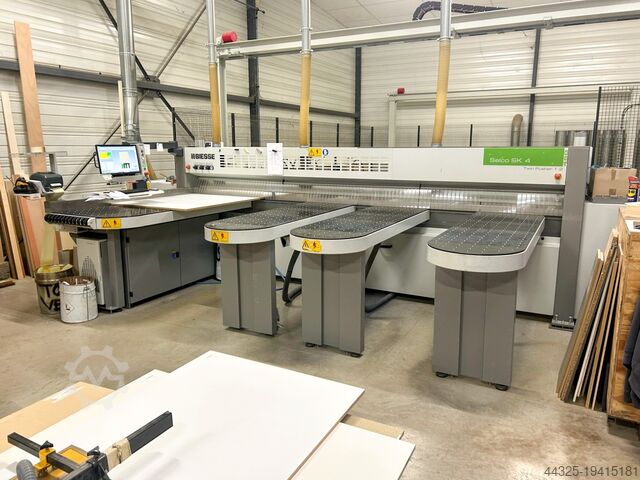

BIESSE SELCO SK 450

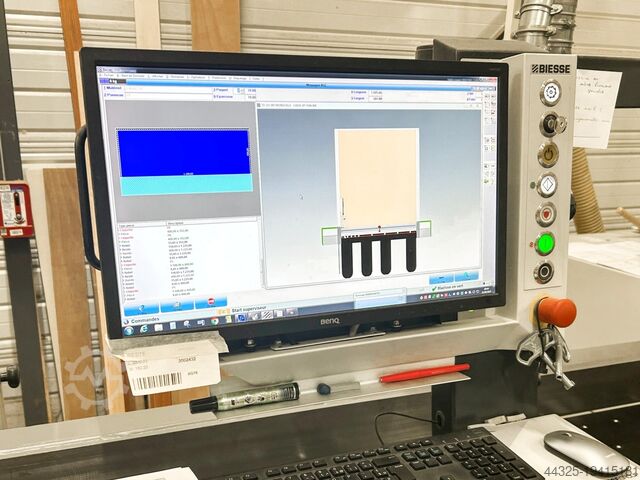

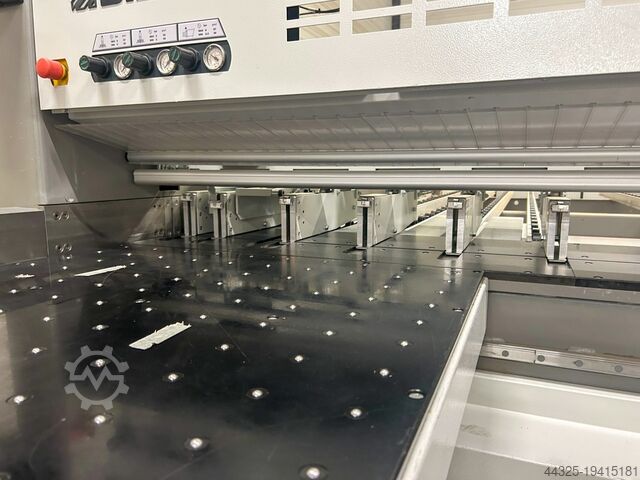

Condition: used, Year of construction: 2017, Osi Plus Numerical Control QUICK OPTI software for cutting pattern optimization directly on the machine Cutting optimization software OPTIPLANNING PROFESSIONAL version Barcode Label Printer - OS-Labelling Electrical cabinet air conditioner Cutting length mm 4400 Cutting width mm 4300 Blade projection 75 mm Manual front panel loading Lateral aligner integrated into the blade carriage No. 1 fixed front bakelite table with air curtain system for unloading the panels (mm 2050 x 850) No. 3 adjustable front bakelite tables with air curtain system for unloading the panels (mm 2050 x 650) Main blade group (max. blade diam. / power) 355 mm / 7.5 kW Engraving group (max blade diam. / power) 200 mm / Kw 2.2 Adjustable speed of the blade carriage Pusher wagon with 10 clamps Blade carriage speed 1-120 m/min Pusher speed 60 m/min Twin Pusher 1.2 system with 1 additional clamp on pusher carriage (position 570 mm) to perform different patterns cutting at the same time TECHNICAL DETAILS TO BE CHECKED Psdpfjv Amx Tox Ac Hsrf

Condition: used, Year of construction: 2009, Used machine Year of manufacture 2009 Single-sided automatic edge banding machine with CNC control 10" touchscreen Industrial conveyor chain 1"1/4 Joining trimming unit FI-502 Glue application unit VC-710 Cross-cutting unit IN-801 Flush trimming unit RS-100, top and bottom 2 motorized multifunctional units: CR-202 profile trimming unit (FAST system with 4 positions as standard) RBK-503 NC scraper unit, 2 positions RCC-701 flat scraper Workpiece thickness 10-65 mm Psdpfx Aev R Nk Uec Hsrf Max. workpiece height with profile trimming unit (depending on profile) 35-65 mm Edge thickness for rolls 0.4-3 mm Edge thickness for strips 0.4-22 mm (depending on unit) Min. workpiece length 140 mm Min. workpiece width (at length 140 mm) 85 mm Min. workpiece width (at length 250 mm) 50 mm Feed speeds 10-14-18-20 mm Central extraction connection 200 mm Extraction connection for gluing 80 mm Extraction connection for joint milling 120 mm Glue container capacity approx. 3 kg Heating time at 1/2 fill approx. 10 min. Length 6000 mm Width 1780 mm Height 1770 mm Machine does not include the workpiece return device shown in the pictures. Availability: Short term Location: Röllbach
