Throughfeed machining center

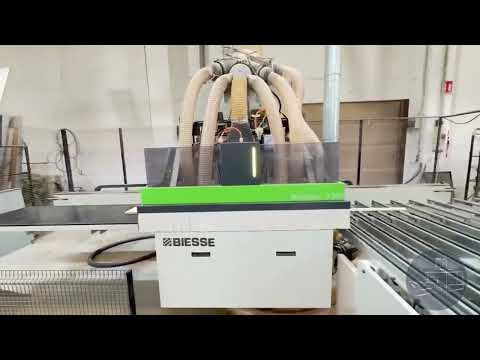

BIESSE SKIPPER 130

Condition: used, Year of construction: 2012, power: 20 kW (27.19 HP), working width: 1,300 mm, number of spindles: 82, plate height: 90 mm, working length: 3,000 mm, TECHNICAL DETAILS Working area X-axis: 3,000 mm Working area Y-axis: 1,300 mm Maximum panel thickness: 90 mm Total number of drilling spindles: 82 Drilling units – Unit 1 (top) Spindles for vertical drilling: 31 Spindles for horizontal drilling in the X direction: 8 Spindles for horizontal drilling in the Y direction: 2 Drilling units – Unit 2 (bottom) Spindles for vertical drilling: 31 Spindles for horizontal drilling in the X direction: 8 Spindles for horizontal drilling in the Y direction: 2 Milling spindles Number of milling spindles: 2 Milling spindles – Unit 1 (top) Number of controlled axes: 3 Motor power: 4.5 kW Redpfjzf Ibdex Anpew Milling spindles – Unit 2 (bottom) Number of controlled axes: 3 Motor power: 4.5 kW Routing units Number of routing units: 2 Routing units – Unit 1 (top) Unit: Fixed for creating channels in the X direction Max. tool diameter: 160 mm Motor power: 3.5 kW Routing units – Unit 2 (bottom) Unit: Fixed for creating channels in the X direction Max. tool diameter: 160 mm Motor power: 3.5 kW MACHINE DETAILS Total installed power: 20 kW Machine programming software: BIESSEWORKS EQUIPMENT Automatic panel stacking system with motorized transfer Barcode reader (manufacturer: SICK) CE marking Protective grid Safety mats The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8565

Condition: used, Year of construction: 2014, machine/vehicle number: 33041, functionality: fully functional, power: 4.5 kW (6.12 HP), travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 90 mm, Equipment: CE marking, The machine has been regularly maintained and is in excellent working condition. Linear guides and ball screws are in excellent condition without any play. Input and output tables are fully functional. The transport clamps operate powerfully and in sync. The drilling system is equipped with 82 spindles. Both the upper and lower milling units use ISO 30 tool holders. The motor bearings are in good condition and run at 24,000 rpm. The machine is operated via the BiesseWorks interface. The electrical components inside the control cabinet are clean and dust-free. Rsdsy Sfi Ispfx Anpow

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, Digital automatic drilling machine BIESSE SKIPPER 130 Rodporkm R Hjfx Anpjw Working condition. Free for loading.
