Surface grinding machine, surface grinder, tool grinding machine

BLOHM HFS 6

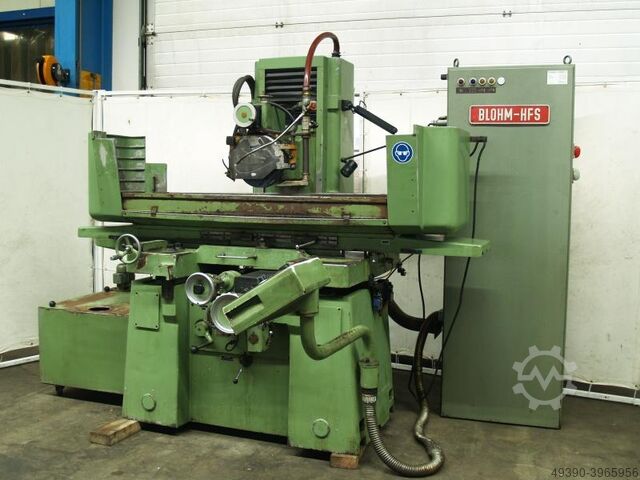

Surface grinding machine BLOHM type HFS 6
make no.: 10493 year of construction 1973
Electro magnetic clamping plate 600 x 300 mm
grinding length 600 mm
grinding width 400 mm
table longitudinal movement max. 650 mm
transversal movement 350 mm
distance spindle center - table surface max. 600 mm
distance spindle center - magnetic plate max. 517 mm
Clamping surface table 1020 x 300 mm
grinding wheel diameter 300 mm
grinding wheel width 50 mm
grinding wheel bore 76 mm
table longitudinal feed 2-30 m/min infinitely variable
table cross feed 2-65 mm stepless electric
cross feed 3 m/min
vertical feed 0,001 - 0,020 mm per infeed pulse
vertical feed 0,250 m/min
grinding wheel speed 1400 / 2800 rpm.
Motor power hydraulic pump 2,2 kW
Motor power grinding spindle 5 / 6 kW
Mains connection 380 Volt, 50 Hz.
Godpfx Asd Hbafefpouh
Total power 11 kW
- automatic depth adjustment
- hydraulic longitudinal table movement
- grinding wheel dresser on the headstock
- electromagnetic plate height 83 mm
- coolant system adjacent, with magnetic filter in filter housing
- grinding spindle circulating lubrication
- adjacent control cabinet (800 x 500 mm)
- swiveling control panel
- operating instructions and spare parts manual
space requirement L x W x H 3000 x 2200 x 2100 mm
weight surface grinding machine 3000 kg
weight switch cabinet 200 kg
good condition
