Coolant Unit

BMF BFU 1300 S/80/20/8+ Z/K -3

tank 1.300 l
Pressure of pump 8 / 20 / 80 bar

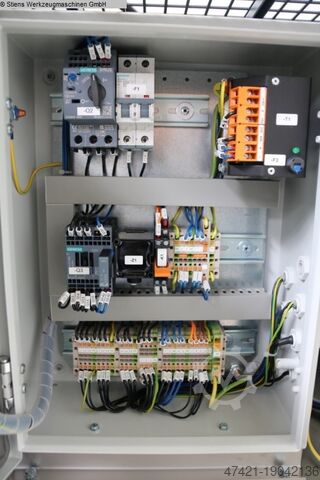

control Schütze / Contactors
total power requirement 18,4 kVA
weight of the machine ca. 1,2 t
dimensions of the machine ca. 2,40 x 2,00 x 1,96 m

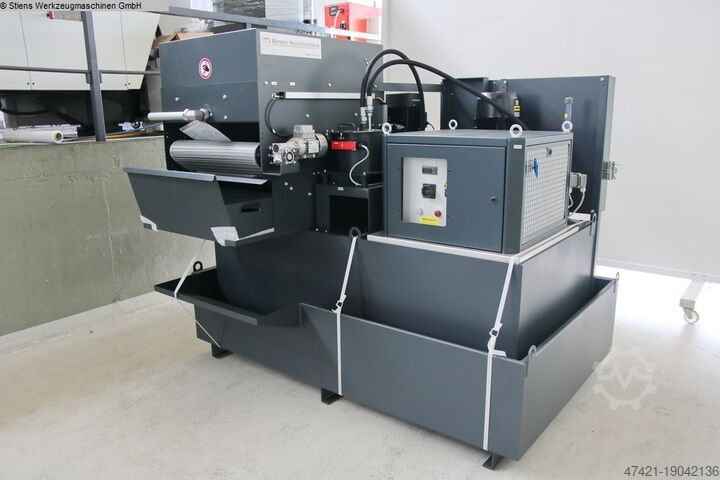

Coolant System
BMF - BFU 1300 S/80/20/8+ Z/K

- NEW, unused
- universally applicable
- can be controlled via contactors

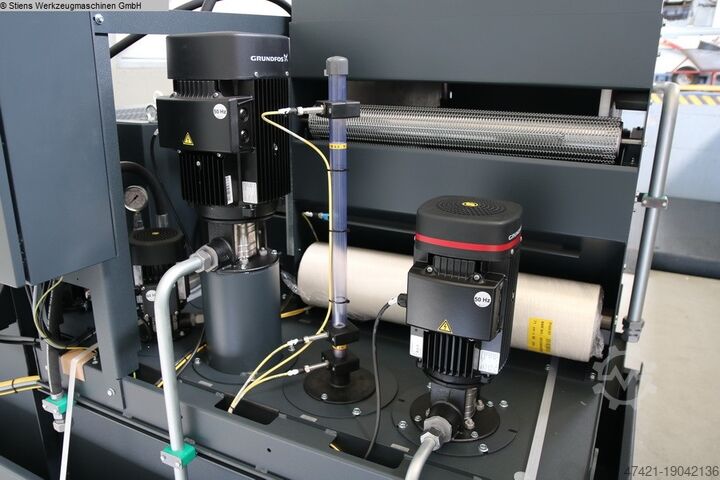

- Number of pumps: 4
- Pump capacity:
5.5 kW, 2,950 rpm, 1.2 m³/h, 20.0 l/min, pressure 80 bar, max. temperature 80°C
4.0 kW, 2,917 rpm, 5.8 m³/h, 96.6 l/min, pressure 25 bar, max. temperature 90°C
-,- kW, 3,447 rpm, 2.3 m³/h, 38.3 l/min, pressure 25 bar, max. temperature 90°C
2.2 kW, 2,899 rpm, 5.8 m³/h, 96.6 l/min, pressure 25 bar, max. temperature 90°C

- incl. paper belt filter

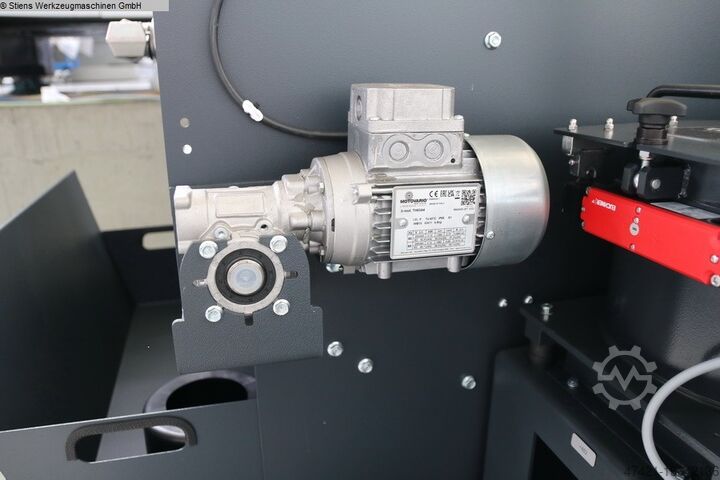

Technical Data (Motor):
Chjdpfjwgd I Ejx Abwsc
- 1,350 rpm
- 0.12 kW

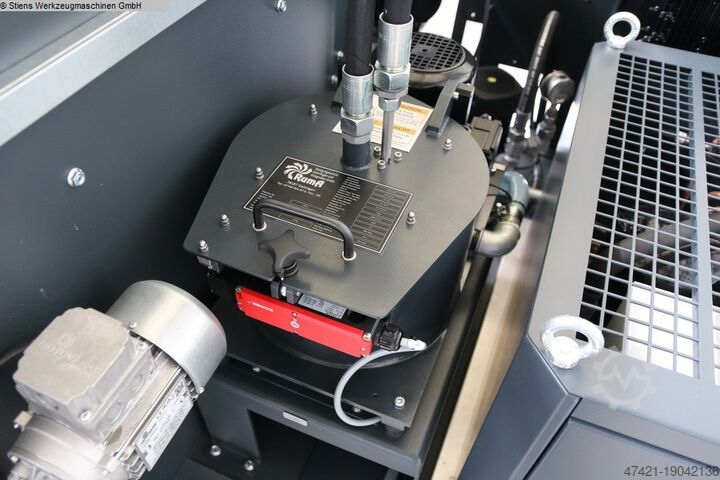

- incl. centrifuge (Ruma MZ 35)
Technical Data:
- Rotor speed: 4,615 rpm
- Rotor diameter: 230 mm
- Temperature (min/max): 10 - 50 °C
- Flow rate (min/max): 10 - 35 l/min
- Max. solids quantity: 6 kg
- Rated power: 2 kW

- incl. cooling unit (Deltatherm E4)
Technical Data:
- Power: 4 kW
- Max. ambient temperature: 40 °C
- Max. operating pressure: 28 bar
- Refrigerant: R407C
- Refrigerant quantity: 2.4 kg
- Connected power: 2.5 kW
