Laser cutting machine

Bodor i6

Condition: new, Year of construction: 2026, table length 3000 mm table width 1500 mm burner heads 1 Control CNC Ndsdpfxewh Ulqo Agrsb workpiece weight 900 kg traversing speed 91 m/min dimensions of the machine ca. 5562 x 2270 x 2388 mm Configuration 1. BodorPower laser source 6 kW 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Bed made of tenon and mortise structure 5. Bodor servo motor and driver 6. Nitrogen control valve 7. Bodor Lightning perforation technology 8. Automatic layout of residual material 9. 21.5-inch monitor with touch function 10. Automatic adjustment of cutting gas pressure 11. Active anti-collision function 12. Intelligent vibration protection 13. Anti-burn mineral casting 14. Bodor Mango® Ergonomic Remote Control 15. Gas-saving nozzles with stable flow 16. Intelligent maintenance reminder 17. WIFI internet connection 18. Water cooling 19. Extraction system 20. Wear parts set CUTTING CAPACITY: STRUCTURAL STEEL 20 mm STAINLESS STEEL 18 mm ALUMINUM 14 mm OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Year of construction: 1997, condition: excellent (used), A used, very well-maintained cold circular saw from EISELE, equipped with a 370mm circular saw blade, steplessly adjustable hydro-pneumatic feed, pneumatic material clamping, coolant system, and documentation. Speed: 17/34 rpm Cutting range: Round 90°/45° right/left/30° right: 130/130/105mm Square 90°/45° right/left/30° right: 120x120/100x100/90x90mm Rectangle 90°/45° right/left/30° right: 200x100/140x100/100/100mm Pneumatic connection: 7 bar Working height: 900mm Machine dimensions (W x D x H): 865x1332x2175mm Weight: 460kg Ndedpskfp D Tefx Agrsb Further technical data can be found in the PDF document. Technical data and dimensions: Subject to change.

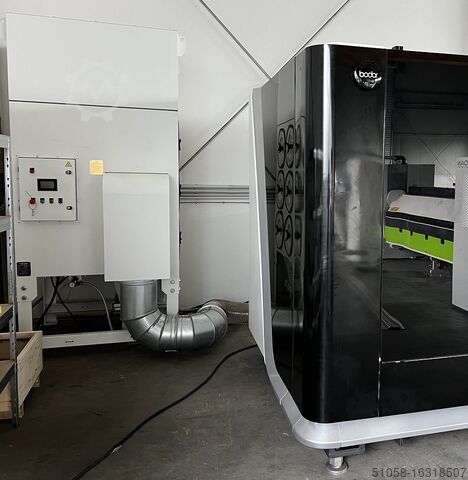

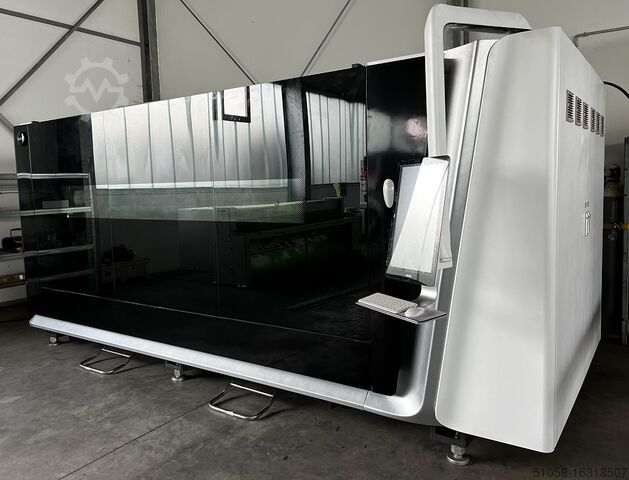

Condition: as good as new (ex-display), Year of construction: 2026, laser power: 6,000 W, sheet thickness steel (max.): 20 mm, workpiece weight (max.): 900 kg, input voltage: 400 V, warranty duration: 24 months, working range: 3,000 mm, Equipment: cooling unit, safety light barrier, Bodor Fiber Laser System Model I7 with electric table and full extension Table load capacity: 900 kg Working area: 1524 x 3048 mm Nedpfstwabnsx Agrodb New, manufactured in 2026 Laser power: 6 kW Control system supports the following graphic formats: AI, BMP, DST, DWG, DXF, DXP External programming System complete, including cooler, extraction system and safety light curtains Demonstration machine in new condition Transfer possible by arrangement.

Condition: new, functionality: fully functional, control type: CNC control, laser type: fiber laser, laser power: 6,000 W, sheet thickness (max.): 25 mm, sheet thickness steel (max.): 25 mm, sheet thickness stainless steel (max.): 20 mm, Equipment: centralized greasing system, cooling unit, fume extraction, Technical Data Laser power max.: 6kW Cutting area: 3048 x 1524 mm Max. workpiece weight: 900 kg Length (mm): 4955 Width (mm): 2320 Height (mm): 2200 Equipment BodorPower laser source 6 kW BodorGenius laser cutting head with autofocus Isbig Ssxdxkyswqusa BodorThinker 3.0 control system Automatic remnant material layout 21.5-inch monitor with touch function Automatic adjustment of cutting gas pressure Active anti-collision function Intelligent vibration protection Nsdox Af Ngspfx Agredb Water cooling Extraction system Set of wear parts You are welcome to inspect the system at our premises. (Images are examples)

Condition: good (used), Year of construction: 2011, From a company liquidation: Berg und Schmid VKS 370 HA Year of manufacture 2011 Semi-automatic machine 4-meter roller conveyor left + right Left stop with digital length measuring system, adjustable via handwheel Cutting capacity with a 370mm saw blade: Round 120mm - Square 100mm - Rectangle 180x100mm at 90° at 60°: Round 110mm - Square 90mm - Rectangle 90x100mm Miter cuts left up to 60° - right up to 45° Nedpowa Ecqjfx Agrodb Saw blade mount 40mm Saw blade speed 15-70 rpm 380 volts Coolant pump Semi-automatic function: 1. Clamp the material 2. Saw starts 3. Lower at rapid traverse to the beginning of the material or cut immediately for serial cutting 4. Remove the saw blade 5. Raise the frame until just above the material 6. Open the clamping jaw

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 1000*1500mm Nsdpfx Ashwrgajgrjdb Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, Year of construction: 2025, Operating Area: 1000*1500mm Machine overall dimensions: 3630×2200×1940mm Laser Output Power: IPG 3000w/2000w/1500w X/Y-axis positioning accuracy: ±0.05mm X/Y-axis repositioning accuracy: ±0.03mm X/Y-axis Max. linkage speed: 60m/min Nodpfxjg Rgq Sj Agrjdb 1. A Compact Design with Complete Protection Small occupied space balances complete protection and higher safety. 2.No Quiver when Cutting Thin Sheet i Series are capable of cutting edges of thin sheet and ensure no quivering marks. 3. Cast Iron Bed Featuring good shock absorption, Cast Iron Bed keeps its shape all the way with the optimal mechanical property.

Condition: new, Year of construction: 2025, machine/vehicle number: OR-220701306, Description: AORE PG3015: ( 3 Kw) 40 sold in 10 month. We can deliver this type Laser cap. from (1 till max 20 Kw) A Compact Design with Complete Protection (CE) table length 3050 mm table width 1530 mm laser head ( SWISS RAYTOOLS ) autofocus laser capacity Kw 6 overall dimensions 8265 x 2280 x 2150 mm weight of the machine ca. 5.400 kg Furnishing: - Max-photonics Laser source 3 Kw - CYPCUT (full option, no extra control option cost) - High integrated, simple operation, leading technology - Ray-tools autofocus cutting head - CYPCUT - CAD / CAM software include: - Nestling, With leapfrog, Edge seeking, Fly cutting, ETC - 23" touchscreen, keyboard, control panel - additional loading unit - central Lubrication system Cutting capacities: ( for 3 Kw ) - normal steel 20 mm - stainless steel 10 mm - aluminium 10 mm - brass 9 mm - copper 7 mm Axes: - Machine axes: 3 axes (X, Y, Z,) - X-axis travel 3000 mm - Y-axis travel 1500 mm - Z-axis travel 315 mm - Axis speed X / Y: 100 m / min - Positioning accuracy: +/- 0.03 m - Reputability accuracy +/- 0.02 mm - Acceleration max. 1,5 G Ndsdolkgd Iopfx Agrsb Automatic table change: - Number of table 2 (15 second max for changing) - automatic change, max load on tables 1440 kg. - 2 x CCTV camera on pallet arear on screen assisting gases: - mild steel - oxygen (0.5 - 25 bar) - stainless steel - nitrogen (0.5 - 25 bar) - Aluminium - compressed air or nitrogen (0.5 - 25 bar) including: - Compatible suction system, cap 3 Kw - Spare part basic supply package - cutting from reflective sheet metal materials - 3 part trolly under work table - Machines for cutting thin sheets - axes equipped with Japanese servo motors YASKAWA - Servo motors reach up to 100 m/min. - Accelerations up to 1.5 G - Fiber laser is the green laser technology for the future - (Saving of at least 50% energy costs) - Components / therefore very low-maintenance - Save up to 50% per part through more efficient production - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame, - equipped with world-famous, durable, high-quality components We use the most high quality parts Like: -- Yaskawa servo drives -- Hiwin linear rails -- Tongfei water chiller dual use for source and laser head -- 2 CCTV camera’s on screen -- Auto central lubrication -- Touch screen 23 inch -- For providing quickly service, we add WIFI function for our technician operates troubleshooting and adjust parameters remotely -- YYC/APEX rack and pinion -- standard delivery is with power transformer and stabilizer total power requirement 50 kW -- TBI high precision ball screw for Z axis -- saw tooth blade table -- air and gas pressure real time monitoring on screen -- CE declaration -- warranty 2 year, max 3600 hours Price is EXW (Stock Europe), Include loaded on truck. Transport, installation, commissioning, training, and yearly service contracts are available upon request for an additional fee. Installation and training is always done by our high qualified Service team in 3 locations in Europe. Netherlands, Germany, Romania. Official Dealer CNC Top Ten b.v. Coevorden Holland

Condition: new, functionality: fully functional, Year of construction: 2026, control type: CNC control, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Bodor, laser type: fiber laser, laser source manufacturer: Bodor, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Ndsdpeikivisfx Agrsb Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: like new (used), functionality: fully functional, Year of construction: 2025, operating hours: 30 h, control type: CNC control, actuation type: electric, laser type: fiber laser, laser source manufacturer: Raycus, laser source model: Raycus, laser hours: 30 h, laser power: 6,000 W, sheet thickness (max.): 15 mm, sheet thickness steel (max.): 15 mm, pipe diameter (max.): 220 mm, pipe length (max.): 6,000 mm, table length: 3,000 mm, table width: 1,500 mm, travel distance X-axis: 3,015 mm, travel distance Y-axis: 1,515 mm, travel distance Z-axis: 50 mm, type of cooling: water, Equipment: CE marking, centralized greasing system, cooling unit, 🇳🇱 Verkooptekst voor uw BEKE 6 kW Fiber Lasersnijmachine (3000 × 1500, Reci‑kop) Bent u op zoek naar een krachtige, nauwkeurige en betaalbare lasersnijmachine voor metaalbewerking? Deze BEKE 6 kW fiber lasersnijmachine, uitgerust met een Reci‑laserkop en een efficiënt werkbereik van 3000 × 1500 mm, biedt uitstekende prestaties voor zowel dunne als dikke metalen platen. Echt 6000 watt vermogen voor het snijden van staal, RVS, aluminium, koper en messing Reci‑laserkop voor stabiele prestaties, hoge snijkwaliteit en lage onderhoudskosten Compact werkbereik van 3000 × 1500 mm, ideaal voor standaard platen en efficiënte productie Strakke snijranden zonder nabewerking Hoge productiesnelheid, perfect voor seriewerk en industriële toepassingen Betrouwbare onderdelen: Reci‑kop, Fuji servo’s, HIWIN geleiders Gebruiksvriendelijke CNC‑besturing met hoge nauwkeurigheid Lage energieconsumptie vergeleken met CO₂‑lasers ⚙️ Technische specificaties Werkbereik: 3000 × 1500 mm Vermogen: 6000 W fiber laser Positioneringsnauwkeurigheid: ±0,03 mm Herhaalnauwkeurigheid: ±0,02 mm Snijsnelheid: tot 40 m/min Snijdikte: tot 20 mm, afhankelijk van materiaal Ndodpfx Aozyv Syjgrsb Koelsysteem: industrieel waterkoelsysteem
