Complete protection and higher safety

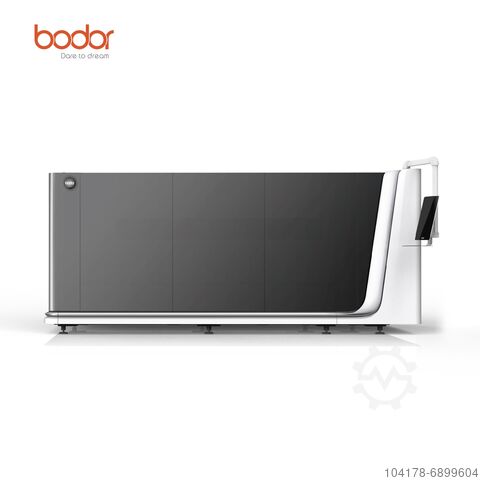

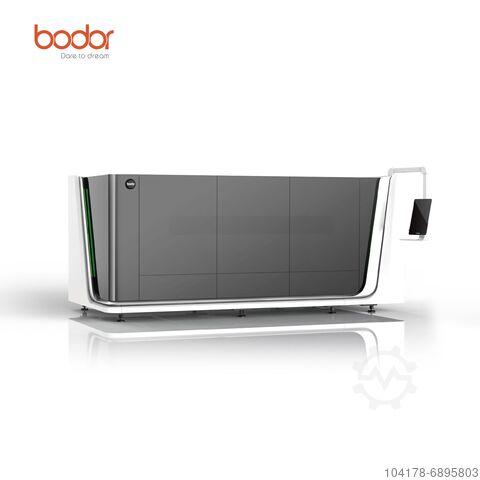

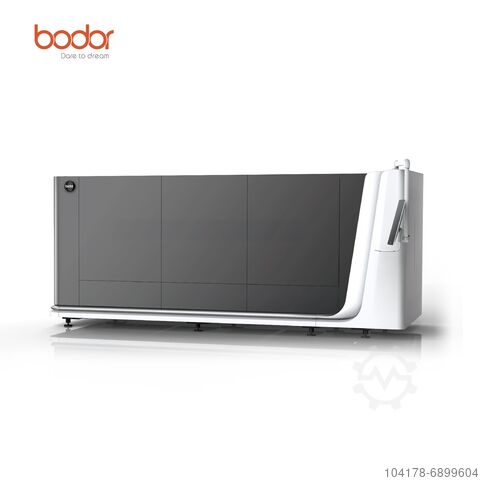

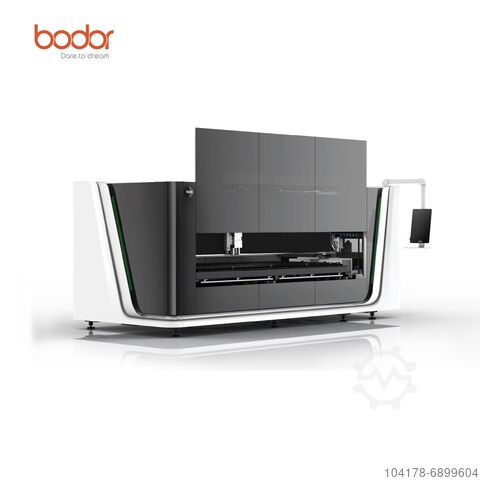

Bodor i7

Condition: new, Year of construction: 2025, table length 3000 mm table width 1500 mm burner heads 1 Control CNC workpiece weight 900 kg traversing speed 91 m/min weight 4980 kg dimensions of the machine ca. 5562 x 2270 x 2388 mm Laser cutting machine with manual shuttle table Configuration 1. BodorPower laser source 12 kW 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Bed made of tenon and mortise structure 5. Bodor servo motor and driver 6. Nitrogen control valve 7. Bodor Lightning perforation technology 8. Automatic layout of residual material 9. 21.5-inch monitor with touch function 10. Automatic adjustment of cutting gas pressure 11. Active anti-collision function 12. Intelligent vibration protection 13. Anti-burn mineral casting 14. Bodor Mango® Ergonomic Remote Control 15. Gas-saving nozzles with stable flow 16. Intelligent maintenance reminder 17. WIFI internet connection 18. Water cooling 19. Extraction system 20. Wear parts set Hodpfsxv D T Rox Adrjfp CUTTING CAPACITY: STRUCTURAL STEEL 35 mm STAINLESS STEEL 35 mm ALUMINUM 25 mm OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Condition: as good as new (ex-display), Year of construction: 2025, laser power: 6,000 W, sheet thickness steel (max.): 20 mm, workpiece weight (max.): 900 kg, input voltage: 400 V, warranty duration: 24 months, working range: 3,000 mm, Equipment: cooling unit, safety light barrier, Bodor Fiber Laser System Model I7 with electric table extension Table load 900 kg Working area 1524 x 3048 mm New year 2024 Laser power 6 kW Control unit supports graphic formats: AI, BMP, Dst, Dwg, DXF, DXP External programming System complete incl. cooler, extraction system and safety light barriers Hfedpfx Ajtwabnedrep Demonstration machine as good as new Takeover by arrangement from the end of 07-2024

Condition: new, functionality: fully functional, Year of construction: 2024, power: 6 kW (8.16 HP), Technical data Laser power max.: 6 kW Cutting area: 3048 x 1524 mm Workpiece weight max.: 900 kg Hfodpfxoxdxkyj Adrjp Length (mm): 4955 Width (mm): 2320 Height (mm): 2200 Equipment BodorPower laser source 6 kW BodorGenius laser cutting head with autofocus BodorThinker 3.0 control system Automatic layout of residual material 21.5-inch touch-screen monitor Automatic setting of cutting gas pressure Active anti-collision function Intelligent vibration protection Water cooling Extraction system Wear parts set

Condition: new, functionality: fully functional, Year of construction: 2025, laser type: fiber laser, laser power: 6 W, sheet thickness (max.): 20 mm, sheet thickness steel (max.): 20 mm, Equipment: CE marking, fume extraction, BODOR Fiberlaser Model: i7 Laser power: 6kW Working area: 3048x1524 mm Max. cutting thickness: 20mm steel Includes laser source, water chiller, and extraction (filter) Hfjdpfx Asw Uz E Nodrjp CE compliant

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Hfsdpshwrg Nofx Adrop Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, Year of construction: 2025, table length 3000 mm table width 1500 mm burner heads 1 Control CNC workpiece weight 900 kg traversing speed 91 m/min dimensions of the machine ca. 5562 x 2270 x 2388 mm Laser cutting machine with manual shuttle table Configuration 1. BodorPower laser source 6 kW 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Bed made of tenon and mortise structure 5. Bodor servo motor and driver 6. Nitrogen control valve 7. Bodor Lightning perforation technology 8. Automatic layout of residual material 9. 21.5-inch monitor with touch function 10. Automatic adjustment of cutting gas pressure 11. Active anti-collision function 12. Intelligent vibration protection 13. Anti-burn mineral casting 14. Bodor Mango® Ergonomic Remote Control 15. Gas-saving nozzles with stable flow 16. Intelligent maintenance reminder 17. WIFI internet connection 18. Water cooling 19. Extraction system 20. Wear parts set Hfodpowh Ulqsfx Adrep CUTTING CAPACITY: STRUCTURAL STEEL 20 mm STAINLESS STEEL 18 mm ALUMINUM 14 mm OPTIONAL: LANTEK EXPERT II CUT software incl. post-processor

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Hfsdpohwrf Sjfx Adrjp Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Hfsdpfjhwrghsx Adrsp Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Hfsdpfshwmdnsx Adrjp Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, Year of construction: 2025, A compact design sheet fiber laser metal cutting machine with complete protection Small occupied space balances complete protection and higher safety. Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness. The pull-out cutting machine table, with the electric table optional, saves space occupation and freshen up the user operation experience. Convenient and fast open&close with one click; The laser cutter door is safe and reliable, by using rack-pinion transmission mode combined with self-locking cutting machine system Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Hfedpeikivisfx Adrsp Laser Type: Fiber Laser Laser Power: 1500W, 2000W, 3000W, 6000W, 12000W Cutting Area: 3048*1524mm Cutting Speed: 0-100m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING
