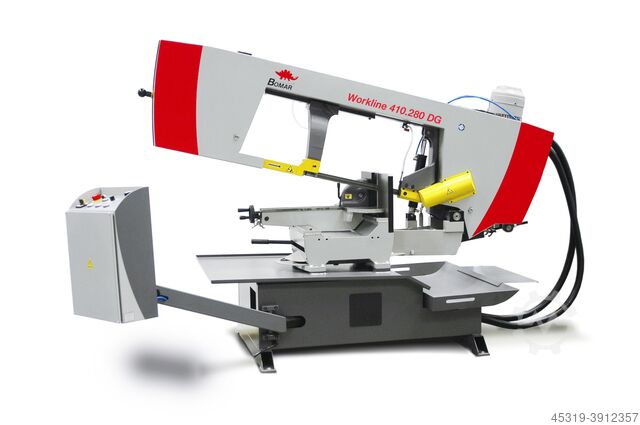

Manual band saw with miter R/L 60°

Bomar workline 410.280 DG

Condition: as good as new (ex-display), Year of construction: 2023, Manual miter band saw for Miters left up to 45° and right up to 30° cutting range Ø 230 mm or 230 x 230 mm drive power 1,1 /1,5 kW saw band 2.720x27x0,9 mm Gbelhccqjkhbg Uoqel band speed 40/80 m/min connection 400V incl. - Ergonomic operation - Monitoring of saw band tension - Quick vice adjustment - Coolant device with chip collection tray

Condition: excellent (used), Year of construction: 2014, Functionality: fully functional, Description AS NEW CONDITION WORKS IN PRIVATE WORKSHOP FROM NEW. Working mode: Semiautomatic Machine type: Horizontal bandsaw Cut: Straight cut Mitre cuts range: 0° Drive: 4 kW, 3x400 V/50 Hz Saw band speed: 20 - 120 m/min. Saw band dimensions: 4 580 x 34 x 1,1 mm Material loading height: 780 mm Length: 2 172 mm Width: 1 197 mm Height: 1 771 mm Weight: 800 kg This universal semiautomatic bandsaw of a double-column construction, designed for perpendicular cuts of materials up to 280 mm in diameter, provides high quality at an affordable price. The saw arm is guided by two robust columns and laid on preloaded, no-clearance linear guiding on one side and on auxiliary guiding on the other side. The excellent cutting performance results from these features: a three-sided hardmetal precision guide of the 34 mm high saw band and synchronous running brush for chips removal. Material clamping is performed by a full-stroke sectional vice. The material feed is manual. The cut material outlet is fitted with a slide. The saw band drive is equipped with a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity. Further, the band is tilted against the vice load surface at 2° angle, which also significantly reduces cutting times and contributes to a longer band lifetime. Thanks to their arms rigidity, double-column bandsaws with a fixed arm position achieve much shorter cutting times (especially in cutting full materials) than machines with articulated saw arms. Key features Both-sided linear guiding of the saw arm Gelhccevk R R Njqqjbl Arm laid on linear guiding Automatic downfeed pressure regulation Simple and clearly arranged control

Condition: new, manual band saw /self lowering with mitre on both sides Cutting capacity Gbslhcodx Nf Hocqqjl 90° round 230 mm / flat 275 x 230 mm / squared 230 mm 45° R round 195 mm / flat 190 x 190 mm / squared 190 mm 45° L round 170 mm / flat 185 x 150 mm / squared 150 mm 60° R round 120 mm / flat 120 x 85 mm / squared 85 mm Material support height 760mm saw blade dimension 2720x27x0,9mm Cutting speed 40/80 m/min. drive power 1,1/1,5 kW//400V//50 Hz Smallest diameter 5 mm Dimensions L x W x H 1600 x 1150 x 1477 mm Weight 370 kg - Attachment of a minimum quantity lubrication possible at an extra charge. - Suitable roller conveyor and material stops available

Condition: like new (used), Year of construction: 2024, operating hours: 10 h, Functionality: fully functional, machine/vehicle number: 101.323-B1/B2-V5-2, saw band length: 4,780 mm, saw band width: 1 mm, total height: 1,499 mm, total length: 2,568 mm, total width: 1,070 mm, cutting speed: 120,000 mm/min, overall weight: 710 kg, cutting height (max.): 350 mm, power: 3.6 kW (4.89 HP), The Bomar 510.350 DGH is relatively new machine. We purchased from the official importer in 2024 December for a dedicated use and operated for maximum 10 hours. Gbelhcov Hnc Ujcqqjl

Condition: used, Year of construction: 2008, cutting diameter 345 mm dimensions of saw-band 4780 x 32(34) x 1,1 mm cutting width s. Abbildung mm coolant pump Typ 2C0P1-14H Gbslhcevxlrdocqqel coolant capacity 50 dm³ output 2,6 angle adjustable from - to -45 bis +60 Grad weight of the machine ca. 630 kg dimensions ca. 2400 x 845 x 1430 mm

Condition: excellent (used), Saw blade dimension 4910x34x1.1 mm Cutting speed 20-120 m/min. Feed length single stroke 750 mm Max. Feed length 9999 mm Electrical equipment Supply voltage ~3x400V,50Hz,TN-C-S/TN-C Total connected load 8.5 kW Max. Fuse rating 25 A Protection class IP 54 Sound pressure level Production 280 78 dB Drive unit Golhcotp Tcgocqqebl Type MDERAXX 100-32J B14 Supply voltage ~3x400V,50Hz Power 3 kW Nominal motor speed 1420 m/min. Hydraulic unit Type 92.001.048 (731-0507) Power 6.5 MPa/2.2 kW Coolant device Type 3COA4-12 Volume of coolant 40 dm3 MICRONISER possible Machine size LxWxH 2370x1600x2050 mm Machine weight Weight 1800 kg

Condition: new, Manual metal band saw with high cutting accuracy. With this machine 90° cuts, as well as mitre cuts, left up to 45° and right up to 30°, are infinitely variable possible. (Swivel range left 45° and right 60°) Basic equipment: - Large rotatable support table without wear! (The cutting channel of the saw band rotates with the mitre) - band tension indicator - hydraulic control of the cast iron saw arm - hydraulic clamping of the workpiece via short stroke cylinder - Height limitation of the saw frame by means of potentiometer from the control panel - hydraulic cutting pressure regulation (solid material - pipe) - Lowering of the saw arm via hydraulic cylinder; stepless adjustment - Lifting of the saw arm manually after the cut - easy manual shifting of the vice R/L - electrical band tension control with saw band breakage control - coolant pump with double feed to the saw band guides - carbide saw band guides and guide rollers - Bi - metal saw band M 42 - chip brush Technical Data ● Cutting range: Gbslhccqjd Dpz Aoqjl round flat square 90° round 278 mm / flat 340 x 275 mm / quadr. 275 mm 45° R round 260 mm / flat 320 x 255 mm / squared 230 mm 30° R round 155 mm / flat 145 x 115 mm / squared 115 mm 45° L round 205 mm / flat 275 x 180 mm / squared 180 mm Drive power: 1.5KW//400V//50 Hz Belt speed: 20-120 m/min infinitely variable Saw band dimension: 3125 x 27 x 0.9 mm Remaining piece length: 20 mm Smallest ø: 5 mm Material support height: 775 mm Dimension

Year of construction: 2023, Condition: new, The workline 510.350 DGH is a semi-automatic double mitre bandsaw in swivel frame design. Equipment details: - Double mitre 30° - 45° - 90° - 45° - 30°. - Hydraulic full stroke vice - Infinitely variable saw band speed - Infinitely adjustable saw feed and cutting pressure - Automatic cutting pressure regulation - Precision carbide saw band guides - Powerful drive motor with 3kW - Simple, easy to understand control system - Control panel in ergonomic position - Large dimensioned hydraulic unit - Machine designed according to current CE standards and safety guidelines inclusive: Gbelhccshg Nvyeqqol - Microspraying device - Hydraulic belt tension indicator

Condition: new, Semi-automatic metal band saw with high cutting accuracy. With this machine 90° cuts, as well as mitre cuts, left up to 45° and right up to 30°, are infinitely variable possible. (Swivel range left 45° and right 60°) Basic equipment: - Large rotating support table without wear! (The cutting channel of the saw band rotates with the mitre) - Belt tension indicator - hydraulic control of the cast iron saw arm - hydraulic clamping of the workpiece via short stroke cylinder - height limitation of the saw frame by means of potentiometer from the control panel - Hydraulic cutting pressure regulation (solid material - pipe) - Lowering of the saw arm via hydraulic cylinder; stepless adjustment - easy, manual shifting of the vice R/L - electric band tension control with saw band breakage control - Coolant pump with double feed to the saw band guides - carbide saw band guides and guide rollers - Bi - metal saw band M 42 Golhccqectgkzjqjbl - spider brush Technical Data ● Cutting range: 90° round 250 mm / flat 320 x 235 mm / quadr. 235 x 235 mm 45° R round 220 mm / flat 230 x 210 mm / squared 210 x 210 mm 45° L round 180 mm / flat 205 x 160 mm / squared 160 x 160 mm 30° R round 130 mm / flat 130 x 105 mm / squared 105 x 105mm Drive power: 1.5KW//400V//50 Hz Total connected load: 3.35 kVA Belt speed: 20-120 m/min infinitely variable Saw band dimension: 2910 x 27 x 0.9 mm Remaining piece length: 20 mm Smallest ø: 5 mm ● Material support height:

Condition: reconditioned (used), Year of construction: 2011, Functionality: fully functional, saw band length: 5,200 mm, saw band width: 1 mm, total height: 34 mm, Trade-in, checked/revised: BOMAR horizontal semi-automatic fully hydraulic metal band saw, type Transverse 610.440 DGH. 2011 Cutting capacity 90° round 440mm, flat 610x440mm 45°L/R round 440mm, flat 420x420mm 30°L/R round 330mm, flat 310x310mm · Stable saw frame · Infinitely adjustable hydraulic saw pressure · Automatic compensation of the saw pressure · Machine automatically goes up hydraulically after sawing · Automatic saw frame height adjustment · Digital angle readout (0.1°) · Powered chip brush · Hydraulic material clamp (clamp makes full stroke) · Adjustable carbide saw blade guides · Separate coolant unit Gbelhccqsv D I S Roqjl · 3.0KW drive motor · Infinitely adjustable saw speed 20-90mtr/min., digitally readable · Central control of the machine · Saw blade size 5200x34x1.1mm

Condition: excellent (used), Year of construction: 2008, Fully enclosed CNC double miter band saw machine with high cutting precision. This machine can make 90° cuts, as well as miter cuts left up to 45° and right up to 30° (60°) infinitely. Various miter settings as well as lengths and quantities can be programmed as required using the modern B&R touchscreen control. Cutting range at 90°: Round 230 mm; Rectangle 300 mm x 200 mm or 230 mm x 230 mm square Cutting range at 45° right Round 195 mm; Square 195 mm x 195 mm Cutting range at 45° left Round 200 mm; Square 155 mm x 155 mm Cutting range at 60° right Round 135 mm; Square 95 mm x 95 mm - Drive power: 1.5 kW//400V//50 Hz - Band speed: 20-120 m/min. continuously variable - Saw band dimensions: 2910 x 27 x 0.9 mm - Remaining piece length: 270 mm Gslhccsv Abg Ejqqsbl - Smallest ø: 5 mm - Material support height: 755 mm - Weight approx.: 1500 kg - Dimensions: 1850 x 2900 x 1600 mm

Condition: not inspected (used), Year of construction: 2015, machine/vehicle number: F00112, 6500 mm jaw feed Remaining piece flap strip deviation control Micronizer SLE 600 Extension version M330 3M Vertical roller VR-M Gjlsgwq Igshccqqebl Remaining piece remover DSTV interface

Condition: new, Semi-automatic metal band saw with high cutting accuracy. With this machine 90° cuts, as well as mitre cuts, left up to 45° and right up to 30°, are infinitely variable possible. (Swivel range left 45° and right 60°) Basic equipment: Gbelhccqjd Dpz Seqel - Large rotatable support table without wear! (The cutting channel of the saw band rotates with the mitre) - band tension indicator - hydraulic control of the cast iron saw arm - hydraulic clamping of the workpiece via short stroke cylinder - Height limitation of the saw frame by means of potentiometer from the control panel - hydraulic cutting pressure regulation (solid material - pipe) - Lowering of the saw arm via hydraulic cylinder; stepless adjustment - Lifting of the saw arm manually after the cut - easy manual shifting of the vice R/L - electrical band tension control with saw band breakage control - coolant pump with double feed to the saw band guides - carbide saw band guides and guide rollers - Bi - metal saw band M 42 - chip brush Technical Data ● Cutting range: round flat square 90° 278 340 x 275 275 45° R 260 320 x 255 230 30° R 155 145 x 115 115 45° L 205 145 x 275 180 Drive power: 1.5KW//400V//50 Hz Belt speed: 20-120 m/min infinitely variable Saw band dimension: 3125 x 27 x 0.9 mm Remaining piece length: 20 mm Smallest ø: 5 mm Material support height: 775 mm Dimension: 1700 x 1500 x 2100 mm Weight: 410 kg

Condition: new, The machine individual 520.360 DGH is a semi-automatic double mitre band saw in two-column design. The mitre range of the saw extends from 30° left continuously to 30° right. The model individual 520.360 DGH has a hydraulic full stroke vice and an easy to use control in plain text display. Standard equipment details - Double mitre 30° - 45° - 90° - 45° - 30° - Hydraulic full stroke vice - Saw frame mounted on preloaded linear guides - Infinitely variable saw band speed - Infinitely adjustable saw feed and cutting pressure - Automatic cutting pressure regulation - Precision carbide saw band guides - Powerful drive motor with 3,0 kW - Modern control with plain text display and membrane keyboard - Freely positionable control panel Gslsdyn H Tohccqqebl - Large dimensioned hydraulic unit - Machine designed according to current CE standards and safety guidelines inclusive: Minimum quantity lubrication digital mitre gauge frame height adjustment at the control panel price on request

Condition: excellent (used), Year of construction: 2006, Functionality: fully functional, cutting capacity: 510 mm, Nice big saw that cuts 0/60 degrees. Super fine automatic saw with mist lubrication Gbelhswhd H Deccqqsl

Condition: good (used), Electronic length stop BOMAR type ROLBO Golhccsi Dpapsqqebl Useful length: 3000 mm Useful table width: 330 mm tAdjustable heigth from 500 mm to 1100 mm Total table length: 3450 mm 8 memory lengths possible Voltage: 220 V mono

Condition: used, Year of construction: 2012, cutting diameter 250 mm saw band length 2910 mm cutting width 0,9 mm capacity 90 degrees: square 240 x 240 mm capacity 90 degrees: flat 290 x 230 mm capacity 45 degrees: round 210 mm capacity 45 degrees: square 190 x 190 mm capacity 45 degrees: flat 220 x 80 mm capacity 60 degrees: round 120 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: flat 120 x 80 mm cutting speed 40 / 80 m/min dimensions of saw-band 2910 x 27 x 0,9 mm Gbsleuhhx Tjhccqqjl height of material-table 760 mm length of rest piece min/max 80 mm feed length 500 mm feed length: multiple programmierbar total power requirement 3,9 kVA weight of the machine ca. 460 kg dimensions of machine L x W x H 1,60 x 1,45 x 1,35 m Accessories: coolant

Condition: like new (used), Year of construction: 2016, Functionality: fully functional, saw blade diameter: 500 mm, Fully automatic aluminium crosscut saw AL 500 ANC Gbelev Rxfbohccqqsl A fully automatic circular saw designed for cutting profiles and complete materials from aluminium alloys, copper and hard plastics at 90°. The saw feed is controlled pneumatically-hydraulically. The cutting height of the saw blade is adjusted from the main control panel. The saw can easily be connected to an extraction device. The machine is equipped with mist lubrication. The machine is equipped with fixed and movable clamps, their positions are controlled by a ball screw. The length of an individual stroke is 500 mm. The feed length is set from the main control panel on the front of the machine. Main features: Sawing in automatic mode at an angle of 90° Adjustment of the length of cut pieces directly from the control panel Up-to-date operation with graphic touchscreen display Micronizer system for oil mist lubrication

Condition: excellent (used), Bomar Type: Bandsaw CLS 420.420 Dimensions: 2654 x 2135 x 1870 LxWxH Power supply: 3x400V,50Hz;TN-C-S 4,5 kw, 16A Belt size: 4670x34x1.1 mm Cutting speed: 20-120 m/min Gelevb Dy Ejhccqqjbl Weight: 950 kg Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: new, The bSander 75.200 & 150.200 are machine sanders for sanding pipe faces and profile ends, for edge sanding and for face sanding on the upper surface of the system. bSander 150.200: Belt dimensions 150 x 2000 mm Belt speed 29 m/s. Gbjlhccsd Dp Aaeqqsl Drive power 4.0 kW//3x400 V//50Hz Dimensions L x W x H 700 x 530 x 1130 mm Weight 90 kg bSander 75.200: Belt dimensions 2000 x 75 mm Belt speed 29 m/s Drive power 3.0 kW//3x400 V//50 Hz Dimensions L x W x H 700 x 490 x 1130 Weight 72 kg Price on request

Condition: used, Year of construction: 2007, Bomar Sawing machine type AL 600 Gbolhccqjvmf Easqel

Year of construction: 2015, Condition: used, Electronic length stop BOMAR type ROLBO Year of construction: 2015 Useful length: 4000 mm Power: 0,06 kW Golhewa Rk Hjccqqjbl In good working condition Voltage: 220 V mono Dimensions (L x W x H: )4500 x 600 x 1000 mm Weight: approx 150 kg

Condition: good (used), Year of construction: 2008, Functionality: fully functional, Used machine - Refurbished - Good condition - Fully automatic metal band saw for 90° cuts - Remaining piece length of 45 mm due to double clamping vice - NC control with digital display (99 programs with 99 sets each) - Electronic height adjustment - Cutting pressure regulation - Hydraulic control of the saw arm - Hydraulic feed; feed length single stroke 600 mm - Coolant pump with dual feed to the saw blade guides - Saw blade breakage control Gbslhccqsvdcwzeqol Technical data: - Cutting range 90° round: 250 mm - rectangular: 290 x 250 mm - square: 250 x 250 - Band speed: 40/80 m/min - Saw blade dimensions: 2910 x 27 x 0.9 mm - Material support height: 770 mm - Dimension: 1980 x 1750 x 1470 mm

Condition: used, Bandsaw Bomar 450SL. In good condition, documentation included. Can be tested in Kaunas. Specification: Model. Bomar 450 450 Bomar 450 Bomar 450 Bomar 450 Bomar 450 Bomar 450 Bomar 450. Gjlhsqk U Rrsccqqobl

Condition: new, capacity 90 degrees: round 240 mm capacity 90 degrees: square 240 mm 165 x 310 mm saw band length 2725 x 27 x 0,9 mm mm table height 890 mm band speed 35 / 70 m/min total power requirement 1,1 kW weight of the machine ca. 0,35 t Dimensions (LxWxH) 1,7 x 0,75 x 1,8 m Gbjlhcshpktvecqqsl The Z252/DG has the following equipment: - hydraulic cylinder, - emulsion pump, - eccentric clamp, - base, - saw blade, - 400V plug -16A- The machine is delivered fully assembled and ready for immediate use.
