Hydr. univ. sheet notching machine

BOSCHERT K 30-120

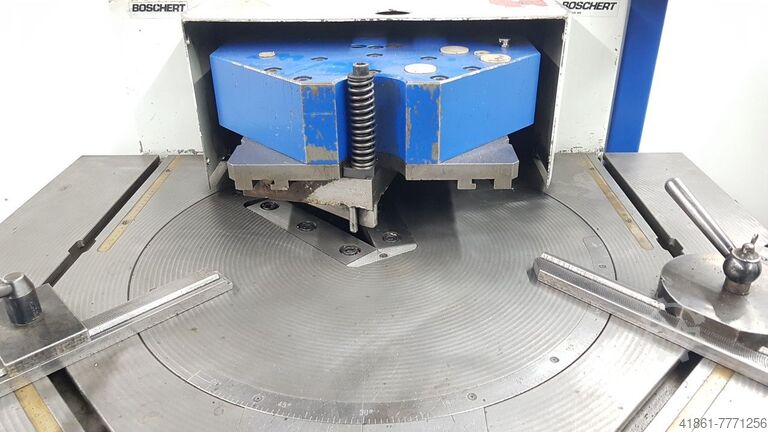

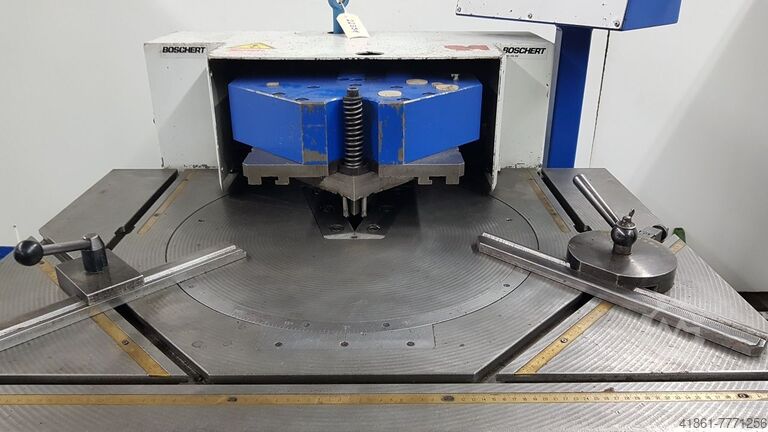

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2001, cutting force: 12.5 t, sheet thickness steel (max.): 6 mm, overall weight: 2,000 kg, Equipment: CE marking, emergency stop, finger protection, foot remote control, Hydraulic notching machine Manufacturer: Boschert, Type: K30 – 120, Punching press: Trumpf Year of manufacture: 2001 Technical data Width x Depth x Height: 1.5 x 1.6 x 1.4 m Weight: 2,000 kg Table dimensions: 1600 x 1000 mm Station 1: Notching Angle range: 30 - 120 degrees (infinitely adjustable) Cutting length: 200 mm Cutting capacity: 6 mm in ST 40 steel 4 mm in stainless steel Station 2: Punching (Trumpf tool system) Punching force: 12.5 t Punching diameter: 105 mm max. Overhang: 300 mm Bdodpszcm Ncofx Ambed All information is subject to change without notice. The machine is in very good condition. A demonstration under power is possible at any time in our showroom.

Condition: used, Year of construction: 1987, plate thickness 3 mm angle adjustable from - to 30 - 120 Grad table height 900 mm Bdjdpfx Amjy Ihanobod weight ca. 800 kg Cutting capacity: 3 mm St40 at 150 x 150 mm, 2 mm stainless steel; cutting angle continuously adjustable from 30° to 120°; pneumatic clamping for angle adjustment (Boschert system); machine is in good condition

Condition: good (used), functionality: fully functional, Year of construction: 1991, sheet thickness steel (max.): 6 mm, power: 0.004 kW (0.01 HP), overall weight: 1,600 kg, Cutting 6 mm at 400 N/mm² 4 mm at 600 N/mm² Stepless angle adjustment 30 - 120° Drive power approx. 4 kW Bdsdpfxsy Rf Ubs Ambod

Condition: used, Year of construction: 1987, plate thickness 4 mm Bdjdpeyv Ntxsfx Ambed blade length 150 mm cutting angle 30-120 ° Table dimensions 1000x650 mm

Condition: good (used), Year of construction: 2012, machine/vehicle number: 753, Offer 26125 Technical Data: - Cutting length up to 150 mm - Cutting thickness – at 400 N/mm² strength: 4 mm – at 700 N/mm² strength: 3 mm - Cutting angle steplessly adjustable: 30° – 120° - Pneumatic clamping of the cutting angle adjustment - Stroke: 22 mm - Strokes per minute: 60 Bdedpfx Ajy Dqmvembed - Table surface with T-slots and depth stops - Table height: 900 mm - Drive: 400 V / 3 kW - Electric foot pedal - Space requirement approx.: W 1000 x H 1150 x D 1400 mm - Weight approx.: 850 kg

Year of construction: 1994, condition: excellent (used), Hydraulic notching machine Manufacturer: BOSCHERT, Type: K30-120 Very good condition, year of manufacture: 1994 Technical data Manufacturer: BOSCHERT Type: K30-120 Year of manufacture: 1994 Cutting capacity: 6 mm in St 40 / 4 mm in stainless steel Bdedpfjhygztox Ambjd Blade length: 200 mm Cutting angle: 30-120° Working stroke: 40 mm Table height: 900 mm Connection power: 6 kVA Weight: approx. 1600 kg Dimensions: approx. 1500 x 1200 x 1300 mm All information is without guarantee. The machine is in very good condition. A demonstration under power is possible at any time in our showroom.

Condition: used, Year of construction: 1989, Year 1989 angle stop 30 -120 Grad good condition . Anschlag weight 600 kg Bodpfx Amsliuihjbsdd +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, Year of construction: 1996, 4.0 mm 3.0 mm 30 - 120 Grad blade length 150 x 150 mm work height max. 900 mm table: 1000 x 650 mm engine output 3.0 kW weight 850 kg range L-W-H 1250 x 1000 x 1160 mm Furnishing: - Notching machine with angle adjustment 30° - 120° - Simple and functional "Touch Pad" control panel * Set-up stroke * Single stroke * continuous stroke - Plexiglas protection for better transparency - hardened knives also for cutting stainless steel - planed table surface * to avoid 'tilting' or 'slipping' of the metal sheet - adjustable lift height adjustment - Waste bin Bjdsxabpdjpfx Ambodd - free-moving footswitch - Operation manual BOSCHERT angle adjustment: - the one-piece 30° upper knife is within one tool both with a left and directly connected to a right lower knife - once for each notch over 30° left and once on the right. - the swivel adjustment becomes pneumatic, immediately after completion of the first notch, lightning fast carried out.
