Beverage making machine

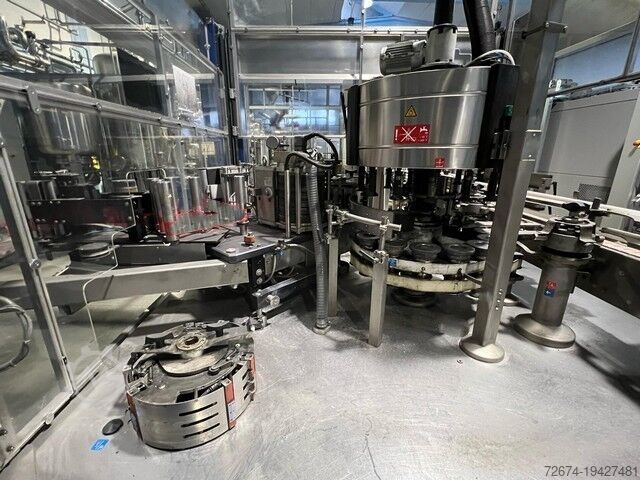

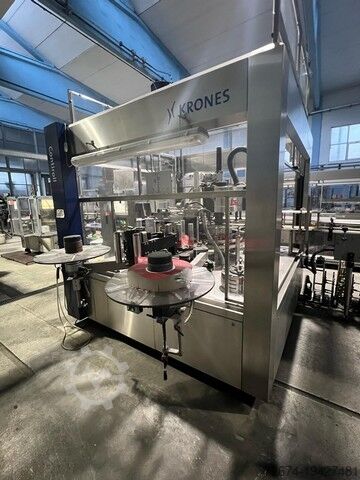

Bottling Krones Roll-Fed Bottling Labeller Contiroll 18.000 bph

Condition: used, SANDWICH PANEL LINE FOR DOORS AND WALLS : 610mm width Made by METECO This sandwich panel production line is designed to manufacture doors & walls panels up to 610mm with an annual capacity of 1.500.000 m panel/year. MAIN PRODUCTION DATA Width: 500 - 610 mm Thickness: 40 - 80 mm Capacity: 1.500.000 m panel/year TECHNICAL SPECIFICATIONS Line speed: 12 m/min Maximum weight of reels that can be used: 10 Ton Coil outer diameter: Maximum 1400 mm Coil inner diameter: 508 mm Maximum sheet width: 610 mm Maximum thickness of producible panels: 80 mm Power supply: 400 V Frequency: 50 Hz SCOPE OF SUPPLY 1. Upper sheet metal treatment section - 10 T upper unwinder with coil carriage - Pinch-Roll and roller passage - Upper reel steel frame - Polyethylene film applicator - Embossing machine for texture pattern - Press for decoration pattern - Profiling machine with upper rollers (12 stands) - Steel upper frame for profiling machine - Upper sheet guide 2. Lower sheet treatment section - Lower 10 T double unwinder with reel carriage - Polyethylene film applicator - Corona treatment machine - Embossing machine - Lower roller forming machine (12 stands) - Rollway - Operator desk for entry line 3. Panel forming section - Hot air preheating oven - Sheet guiding unit - Steel reinforcement machine - High-pressure foaming plant - Foaming portal - Foaming booth - Side sealing system and tape applicator - Double press conveyor - Double belt heating system - Double belt press - Outfeed roller conveyor - Sawing machine for cutting - Soundproof cabin - Dust extraction unit - Operator Control desk 4. Stackable section - Automatic panel tilter - Stackable conveyor - Extraction conveyor - Packaging section - Styrofoam spacer feeding system - Infeed conveyor - Packaging machine - Extraction conveyor - Wrapping machine 5. Panel production equipment - Top roller forming tools - Bottom roll forming tools 6. List of additional machines - Container station for polyol, isocyanate and additives - Pentane tank and accessories Width: 500 - 610 mm Thickness: 40 - 80 mm Line speed: 12 m/min Maximum weight of reels that can be used: 10 Ton Coil outer diameter: Maximum 1400 mm Coil inner diameter: 508 mm Maximum sheet width: 610 mm Iasdpsvtpcijfx Ahujl Maximum thickness of producible panels: 80 mm Power supply: 400 V Frequency: 50 Hz Capacity: 1.500.000 m panel/year

Condition: excellent (used), Year of construction: 2016, Blockmold body, tightly welded, annealed, machined, and pressure- tested, executed according to European Standards and P.E.D. - 97/23/EC heat-resistant steel for steam pressure boilers Maintenance platform with ascent aid and fall protection. Block dimensions: • Height: 4,100 mm • Depth (usable depth): 1,300 mm • Width: 1,040 mm • Block gross volume: 5.5 m³ Cycle times: • 12-16 g/l density - 20-22 blocks/hour • 17-19 g/l density - 18-20 blocks/hour • 20-23 g/l density - 16-18 blocks/hour • 24-28 g/l density - 14-15 blocks/hour • 29-35 g/l density - 12-14 blocks/hour Filling system: • Filling silo volume - 1 x 10 m³ • High-pressure suction blower - 11 kW • Number of filling pistols - 2 pcs. • Filling diameter - 300 mm • Drive - hydraulic Mechanics: • Hydraulic system - 15 kW • Demolding - hydraulic • Door movement - hydraulic Electrical equipment: • Servo inverters: Mitsubishi • Frequency inverters: Mitsubishi • PLC: Siemens Simatic • HMI panels: Siemens Simatic Iodpjpwbmbefx Ahueal • PC: Axiomtek

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 17.5 [kW] - Spindle speeds : 18.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 915 / 500 / 500 [mm] - Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min] TOOL CHANGER - Tool magazine capacity : 28 TABLE - Table dimensions : Ø 630 [mm] - Maximum weight upon table : 500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3620 x 3160 [mm] - Machine height : 3000 [mm] - Machine weight : 7300 [kg] MACHINE HOURS Ijdpfx Aheup Hwxeuoal - Number of working hours : 50223 [h] EQUIPMENT - CNC : Heidenhain iTNC 530 - Coolant tank - Chips conveyor - Oil mist extractor : ELBARON - Cooling unit : HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14 - Workpiece probe : Renishaw - Tool breakage detection : BLUM

Condition: like new (used), Year of construction: 2021, Fabric cutting machine Lectra VIRGA.FA.CUT.MOTIF-E, year 11/2021, useful width 1.70 cm. Single cut, specific machine for cutting lines, squares and panels. Hours worked 86. Connected machine available for any tests. Iajdjvva Uuopfx Ahuel

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Iasdoh T Dzqepfx Ahujl Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: good (used), Loypack One shot chocolate depositor Iodpfx Ahsmqm E Uoueal Stainless one shot moulding machine, 100Kg twin hopper, moulds are loaded into a denester, adjustable temp control, variable speed, heated water tank, comes with over 300 different moulds for making neopolitans, 3Ph

Condition: like new (used), Year of construction: 2022, Polishing Machine – Ital Plastick PA-2 CNC START Iajdpfx Ajwbqkpehusl • CNC cleaning machine equipped with two reversible knives for white and coated profiles, and a blade for cleaning various profile shapes, with movement on two controlled axes. • Automatic insertion and positioning of the profile thanks to the centering device, which operates through proximity sensors to ensure precision and accuracy. • Maximum workable profile dimensions: up to 190 mm in height and a minimum of 35 mm. • Intuitive 4” Touch Screen panel with the possibility to store up to 99 working programs.

Year of construction: 2017, condition: ready for operation (used), A spinning, drawing and winding line for the production of monofilament yarns, multifilament FDY and POY is available. Spinning positions: 24, yarn ends: 192, drafting: cold and hot godets, package change: without yarn breakage, number of godets heated/cold: 50/50, number of winders: 24 (+2 reserve winders). Including various spare parts for the machine and electronics. Documentation available. On-site inspection is possible. Iaodpfxouanq Tj Ahuel

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, total width: 6,100 mm, total length: 1,550 mm, total height: 2,350 mm, overall weight: 1,800 kg, warranty duration: 6 months, power: 3 kW (4.08 HP), input voltage: 400 V, Sarp Line for pasteurization of stuffed pasta - Hourly output from 250 to 400 kg. The line consists of the following units: 1) Pasteurizer feeding conveyor belts. 2) Pasteurizer model SPA610VD, electric power 1.2 kW, heat output 120400 cal/h (140 kW), belt width mm. 1000, pasteurization tank length mm. 6000, overall dimensions mm. 10163 x 1600 x 2210 (h), total weight Kg. 1000 3) Belt elevator model SNZ 4) Wrapper - Cooler model SIR4105-A 5) Complete electrical cabinet Iasdpfxoui Rixo Ahuel The line is constructed entirely of stainless steel and has the following features: - width of the belts mm. 1000 - pasteurization belt speed adjustable from 1 to 3.3 meters / minute - wrapping belt speed adjustable from 0.65 to 1.95 meters / minute - cooling belt speed adjustable from 0.43 to 1.3 meters / minute - pasteurization chamber temperature from 96 to 99° C - internal temperature of the wrapper from 65 to 70° C - internal temperature of the cooler +3° C - pasteurization time from 1'50" to 5'30" - wrapping time from 3'40" to 10'55" - cooling time from 7'58" to 24' A steam generator suitable for this line is available but not included in the price listed. Electrical system 220 / 400 V - 3 phase - 50 / 60 Hz., fully serviced, guaranteed 1 year, CE and USDA compliant. 1 year warranty !!! WHY BUY FROM A DEALER ?!! BUY DIRECTLY FROM THE MANUFACTURER !!! For more information, contact Ostoni in Italy ! WE HAVE THE LARGEST ONLINE SELECTION OF MACHINES AND MOLDS FOR THE PRODUCTION OF RAVIOLI, TORTELLINI, CAPPELLETTI, TORTELLONI, GNOCCHI, PELMENI, PIEROGI, VARENIKI AND MANY OTHER PASTA SHAPES !!!

Condition: good (used), Year of construction: 2008, HAAS VF-5D / 40 MACHINING CENTER TRAVELS : Iaedsvf Nw Dopfx Ahusl X : 1,270 mm Y : 660 mm Z : 635 mm DISTANCE BETWEEN PLANE – TABLE AND SPINDLE NOSE : 178 – 813 mm TABLE : DIMENSIONS : 1,321 x 584 mm LOAD CAPACITY : 1,815 mm NUMBER AND SIZE X PITCH OF T-SLOTTS : 7.14 X 80 mm SPINDLE : ROTATIONAL SPEED : 8,000 RPM SPEED RANGES : 2 SPINDLE NOSE : ISO 40 HIGH PRESSURE / INTERNAL COOLANT FEEDS : RAPID SPEED : 18,000 mm / min. WORKING SPEED : 12,700 mm / min. JOG : 0 – 1,260 mm / min. TOOL MAGAZINE : 24 POSITIONS POWER : 15 KW WEIGHT : KG. 7,000 YEAR OF FIRST INSTALLATION : 2008
