Edge banding machine

Brandt Homag KDF 1650 Highflex

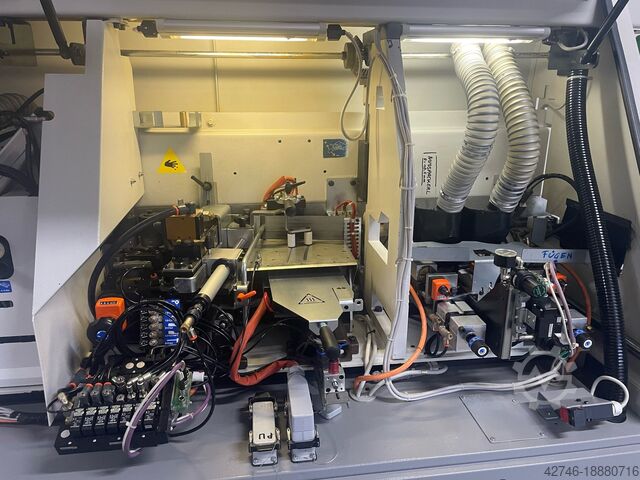

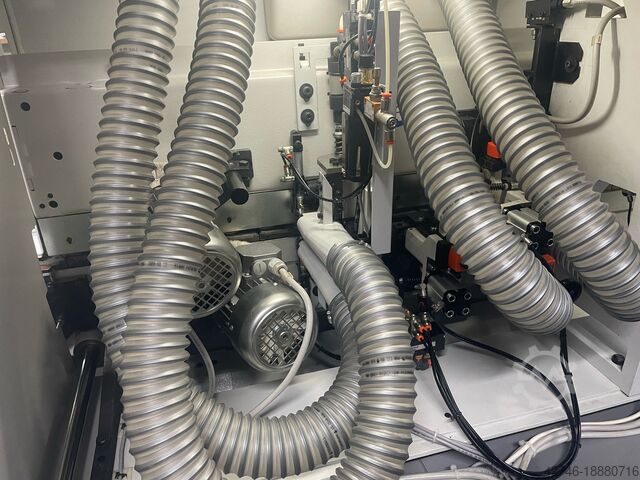

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, edge thickness (max.): 10 mm, overall weight: 1,980 kg, height adjustment type: electric, Biesse Type Akron 440 Year of manufacture: 2007 Noise rating according to manufacturer: 88 dB (A) Gjdowahhpepfx Abpsbw Rated power: 13 kW Extraction capacity according to AUVA: 565 m³/h Technical specifications: - Edge thickness from 0.4 - 10 mm - Feed speed 12 m/min - Max. edge banding height 13 - 60 mm - Release agent - Jointing unit - Edge magazine - Preparation for PUR adhesive - Trimming unit, pivoting 0-15° - Pivoting bevel/radius unit RS-501 - Profile trimming unit - Radius scraper RBK 502 - Flat scraper RCC 701 - Buffing unit SP 501 - Electric height adjustment - Total connected load 13 kW - Machine length 4200 mm

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Condition: The machine was operated in Germany and regularly maintained (last service by Homag in 11/2024) Features and technical data: - Workpiece thickness min.: 12 mm - Workpiece thickness max.: 60 mm - Workpiece min. (L×W): 240 × 55 mm (at 22 mm thickness) / 100 mm (at 60 mm thickness) - Edge thickness min.: 0.3 mm (coil material) / 0.4 mm (strip material) - Edge thickness max.: 3 mm (coil material) / 20 mm (strip material) - Feed speed: steplessly adjustable 18–25 m/min (frequency-controlled) Godjwx Aaqopfx Abpsbw - Gluing system: EVA hot-melt adhesive - Glue application (tank / cartridge / nozzle): Melting unit with granulate hopper - Glue volume / cartridge size: Granulate hopper, melting capacity 18–35 kg/h, level-controlled - Heating time: approx. 8–10 min - Edge magazine (positions): 2 coils (automatic coil change) - Automatic edge change: yes (automatic via PC22, can be switched manually) - Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, pneumatically adjustable - Pressure section: 1 pre-press roller Ø 150 mm + 6 post-press rollers Ø 70 mm, automatic adjustment - End trimming: HL84 trimming unit, 2 × 0.8 kW, pneumatically adjustable (bevel / straight) - Flush milling: via pre-milling unit, pneumatically adjustable - Radius milling: FK13 profile milling unit, automatic 8-position tool changer (R = 2 mm) - Bevel / profile milling: yes, via FK13, pneumatically adjustable - Scraper: integrated in multi-finishing unit MN21 - Polishing: buffing unit in FA11 finishing unit - Jointing unit: KAL310/A20/S2 jointing milling unit, 2 × 3 kW - Workpiece pre-heating: available - Release agent spray device: top / bottom, type 2929 (F.01) - Extraction nozzles: multiple Ø 100 mm (individual extraction per unit) - Control system: power control PC22 (industrial PC, woodCommander running Win XP embedded) - Operating voltage: 400 V, 50 / 60 Hz - CE / standards: CE-compliant per EU directive 98/37/EC Dimensions / required floor space: approx. 8,000 × 1,400 × 1,600 mm Weight: approx. 3,000 kg Please note: The return conveyor shown in the pictures is not included in the scope of delivery! Availability: short-term Location: Lithuania

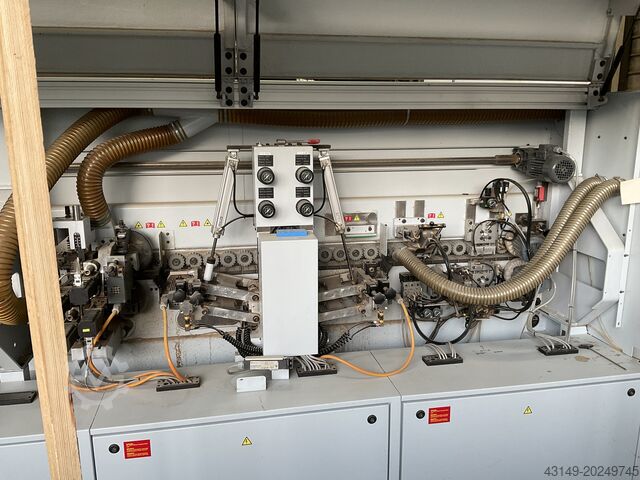

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, Single-sided edge banding machine Manufacturer: Brandt Model: KDF 660 Year of manufacture: 2005 Max. edge thickness: approx. 12 mm Max. workpiece thickness: 60 mm Max. coil material thickness: 3 mm Equipped with: - Pre-milling unit - Coil magazine - Glue application unit - End trimming unit - Top/bottom flush and radius milling - Top/bottom radius milling with front/rear edge copying - Radius scraper - Buffing station Feed speed max. approx. 16 m/min. Gbedpfxjxl Ufvj Abpjw Connection: 400 V, 50 Hz, 3 Ph Total connected load: approx. 15 kW

Condition: good (used), Year of construction: 2007, Used edge banding machine Gbjdpfjxhc Sisx Abpew - Model KAL 310 - Year of manufacture 2007 - Including return conveyor - In good and fully operational condition - Photos & video available
