Edge router

Brandt F 10

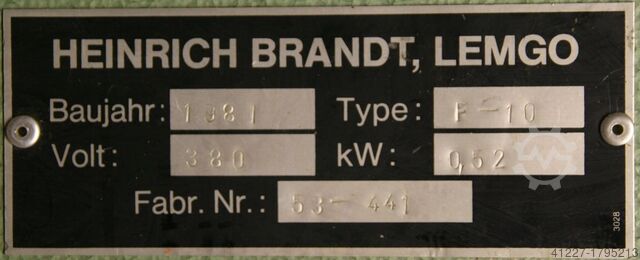

Year of construction: 1981, Condition: used, Radius/flush milling machine, edge milling machine, edge milling machine, molded part milling machine Iajlhcjb A Hfqocqpou For simultaneous upper and lower radius/flush milling of protruding edge materials on straight edges as well as curved workpieces with inner and outer radii -Built-in milling cutter: 30 ° -Dimensions: 1000/600/H1450 mm -Weight: 60 kg

Condition: used, Brandt Optimat KD-83-F Edge thickness 0.4 -12 mm Automatic control panel - PLC control Pre-milling unit for pre-processing before the gluing part Automatic edge magazine for roll and strip material Gluing unit with quick heating tank / INFRARED control Workpiece height 10 - 55 mm Pneumatic pressure unit End trimming unit for roll and strip material up to 12 mm edge thickness with adjustment from 0-15° bevel on saw blades Milling unit, flush trimming, radius trimming, bevel trimming - 25° Scraper unit Buffing unit Soundproof cabin CE version Machine is in EXTREMELY WELL MAINTAINED CONDITION from joinery liquidation - artisanal operation Iaelhcowp Iwcscqpju ex location

Condition: used, Year of construction: 1996, Used machine Year of construction: 1996 Equipment and technical data: Spreading unit consisting of: -roll and fixed length magazine -roll separator -glue applicator -pressure zone Heating system: Glue basin Cross-cut unit Iaelhjwkbameccqpou Jointing unit Universal trimming unit Scraper unit Buffing unit Buffing unit Workpiece thickness: 10-55 mm Workpiece length: min. 160 mm Workpiece width: min. 65 mm Edge thickness: 0.4 - 12 mm Roller cutting: 3 x 45 mm Feed rate: 13 m /min. Pneumatics: 7 bar Availability: Short term Storage location : Flörsheim

Condition: ready for operation (used), Functionality: fully functional, workpiece height (max.): 200 mm, Postforming Machine Brandt Type PF 10 Maximum workpiece thickness: approx. 200 mm Min. workpiece thickness: approx. 16 mm Iolhcowkqtcocqpjau Workpiece length: 1800 - 4200 mm Pressure rail Total power consumption: 12 kW

Condition: used, Type: OPTIMAT F 13 Year of construction: 2001 Condition: function-tested, very good, second-hand - Workpiece thickness 16 to 55 mm - Workpiece width min. 30 mm - Inner radius min. 35 mm - Edge thickness max. 3 mm - 2 milling motors 0.4 kW - Suction connection 80 mm Ieloud U Iyohccqpsau

Year of construction: 1989, Condition: ready for operation (used), Workpiece length: 1800-4200mm, max. profile height: 200mm, min. workpiece thickness: 16mm, working height: 950mm, connection cable: 12kW, length: 6250mm, height: 2050mm, weight: 3.8t. Islhcjqa A R Njcqpsau

Year of construction: 1989, Condition: used, - workpiece thickness max. (mm): 55 - workpiece width min. (mm): 80 - Profile depth max. (mm): 80 - inner radius min. (mm): 10 - Edge material thickness max. (mm): 3 - depending on radius and edge material - milling motor: 0,5 kW, 27.000 rpm. - Electricity: 220 V - 1 Ph. - 50 Hz Iaslhcok E Hrbjcqpju - Connection value (kW): 0,5 - Compressed air connection (bar): 6 - dimensions L x W x H (mm): 850 x 650 x 1430 - working table height (mm): 1000 - buffing unit: for processing thick PVC edges - Weight (kg): approx. 120

Condition: used, Year of construction: 2000, machine/vehicle number: 0-260-06-0228, Foot control 1200 x 800 mm suction nozzle 80 mm pneumatic connection cable + plug 16 A 1 set of operating tools 1 set of sensing rollers Iaslhccqeigadlopeu

Condition: used, Year of construction: 1988, used, good conditionmanufactured by Brandttype F10 + EK 11 - trimmingbuilt in 1988Masch.-No. 0-260-01-2188/0-260-01-2746required space ca. 1100 mm x 1100 mm x 1700 mmlocated in 97447 Gerolzhofen, free on truck, unpackedsale in current condition as seen,without revision,without guarantee and warranty Ijlhccqjvwf Txepoau

Year of construction: 1988, Condition: reconditioned (used), for simultaneous upper and lower flush milling of protruding edge materials on straight edges as well as curved workpieces with inner and outer radii Equipped with stop rails for straight edges and centric stop rings for shaped parts workpiece thickness approx. 12 - 60 mm workpiece width min. approx. 30 mm inner radius min. approx. 45 mm edge thickness max. approx. 1 mm milling motors 2 x 0,26 kW, 3.000 rpm/50 Hz Electric 380 V, 3 Ph., 50 Hz, pneumatic connection 4 bar working height 850 mm Ijlen Ut Nxjhccqpeau Cross-cutting device EK 11 for exact trimming of edge material protrusions on workpiece ends with straight and curved edges edges mounted on F 10 workpiece thickness approx. 10 - 60 mm edge material thickness max. approx. 1 mm cross-cut tool diam. 100 x 32 x 3 mm Z = 20 drive 1 x AC motor via toothed belt on tool shaft power 0,37 kW Speed 3.000 rpm Electrical 380 V, 50 Hz, 3 Ph.
